A&S Power 18650 12v 20Ah li-ion battery
- Art No :AS18650 3S10P
- Material:Li-ion battery
- Size :59*71*190mm
- Weight:1.45kg
- Description :
1. Voltage: 11.1v
2. Capacity: 20Ah
3. Model: AS18650 3S10P
4. Dimension with PCM: 59*71*190mm
5. The Shortest Sample Time：7 days
6. Order confirmation to delivery：30 days
Specification:
A&S Power 12v 20Ah li-ion battery
Specification:
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
12Ah |
Discharge:0.2CmA cut off Voltage:9V for cell |
|
|
Minimum |
11Ah |
|||
|
3.2 Nominal Voltage |
Average 11.1V |
Discharge:0.2CmA cut off Voltage:9V for cell |
||
|
3.3 AC Impedance Resistance |
≤220mΩ |
|
||
|
3.4 Discharge Cut-off Voltage |
9.00V |
|
||
|
3.5 Charge Current |
2.4A |
Standard Charge |
||
|
3.6 Charge Voltage |
12.6V |
|
||
|
3.7 Max. Charge Voltage |
12.69V |
|
||
|
3.8 Charge Time |
Approx 8h |
Charge: 0.2CmA |
||
|
3.9 Max. Charge Current |
12A |
|
||
|
3.10 Max. Discharge Current |
12A |
|
||
|
3.11 Weight |
Approx 1.45kg |
|
||
|
3.12 Operating Temperature |
Charge |
0~+45℃ |
|
|
|
Discharge |
-20~+60℃ |
|
||
|
3.13 Storage Temperature |
less than 1 month |
-5~+45℃ |
Recommended storage temperature: 20℃,at the shipment state |
|
|
less than 3 months |
-5~+35℃ |
|||

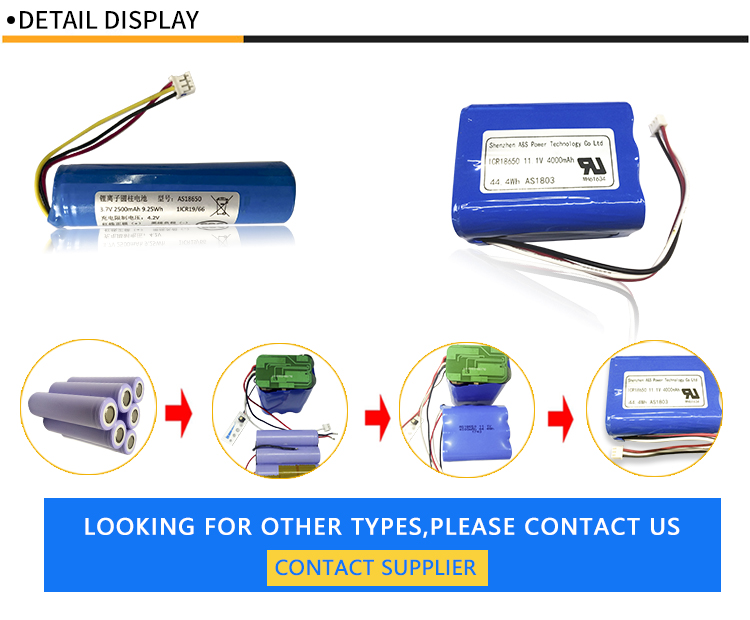

Product Photo
Lithium Ion Battery Cell Models:
| Model | Nominal voltage(V) | Capacity (mAh) | Max charge voltage(V) | Cut-off discharge voltage(V) | Max continuous discharge currnt(C) | Diameter φ ( mm) | Height ( mm) | Weight (approx)(g) |
| AS-18650 | 3.7 | 2000 | 4.25 | 2.75 | 3C | 18 | 65 | 43.5 |
| AS-18650 | 3.7 | 2200 | 4.25 | 2.75 | 3C | 18 | 65 | 45 |
| AS-18650 | 3.7 | 2500 | 4.25 | 2.75 | 3C | 18 | 65 | 45.5 |
| AS-18650 | 3.7 | 2600 | 4.25 | 2.75 | 3C | 18 | 65 | 46 |
| AS-18650 | 3.6 | 3200 | 4.25 | 2.5 | 2C | 18 | 65 | 45.5 |
| AS-18650 | 3.6 | 3350 | 4.25 | 2.5 | 1C | 18 | 65 | 46 |
| AS-21700 | 3.6 | 4000 | 4.25 | 2.5 | 5C | 21 | 70 | 68.5 |
| AS-21700 | 3.6 | 4500 | 4.25 | 2.5 | 3C | 21 | 70 | 69 |
| AS-21700 | 3.6 | 4800 | 4.25 | 2.5 | 1C | 21 | 70 | 70 |
| AS-21700 | 3.6 | 5000 | 4.25 | 2.5 | 1C | 21 | 70 | 70 |
A&S Power Hot Selling 18650 Lithium Ion Battery Pack With Certifications:
| Model | Nominal voltage(V) | Capacity (mAh) | Max charge voltage(V) | Cut-off discharge voltage(V) | Max continuous discharge currnt(C) | Weight (approx)(g) | Certification |
| AS-18650-2600-11 | 3.7 | 2600 | 4.2 | 3 | 1C | 49 | UL2054,IEC62133(CB),CE,KC,UN38.3 |
| AS-18650-2000-21 | 7.4 | 2000 | 8.4 | 6 | 1C | 89 | UL2054,IEC62133(CB),UN38.3 |
| AS-18650-2600-21 | 7.4 | 2600 | 8.4 | 6 | 1C | 90 | IEC62133(CB),UN38.3 |
| AS-18650-3350-21 | 7.4 | 3350 | 8.4 | 5 | 1C | 92 | IEC62133(CB) |
| AS-18650-2000-32 | 11.1 | 4000 | 12.6 | 9 | 0.5C | 265 | UL2054,UN38.3 |
| AS-18650-2600-41 | 14.8 | 2600 | 16.8 | 12 | 1C | 185 | IEC62133(CB) |
| AS-18650-2500-52 | 18.5 | 5000 | 21 | 15 | 1C | 480 | IEC62133(CB),UN38.3 |
| AS-18650-2000-62 | 22.2 | 4000 | 25.2 | 18 | 2C | 530 | IEC62133(CB),UN38.3 |
| AS-21700-5000-14 | 3.7 | 20000 | 4.2 | 2.5 | 0.25 | 300 | UN38.3 |
| AS-21700-4800-12 | 3.7 | 9600 | 4.2 | 2.5 | 0.2 | 150 | UN38.3 |
| AS-21700-4800-73 | 25.9 | 15000 | 29.4 | 17.5 | 0.5 | 1500 | CE |
| AS-21700-50E-22 | 7.4 | 10000 | 8.4 | 5 | 0.5 | 300 | IEC62133(CB),UN38.3 |
Q: What is your package looks like? Can I have the customized package?
A: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.Q: What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place official order.
Q: Are you factory?
A: yes,we are factory.
