08310 130mah 3.7v Cylindrical Lipo Battery Pack for Headset With IEC62133
- Art No :AS08310-130mah
- Material:Li-polymer battery
- Size :8.5*32.5mm
- Weight:6.8g
- Description :
Model:AS08310
Voltage:3.7V
Capacity:130mah
Cycle life:over 500times

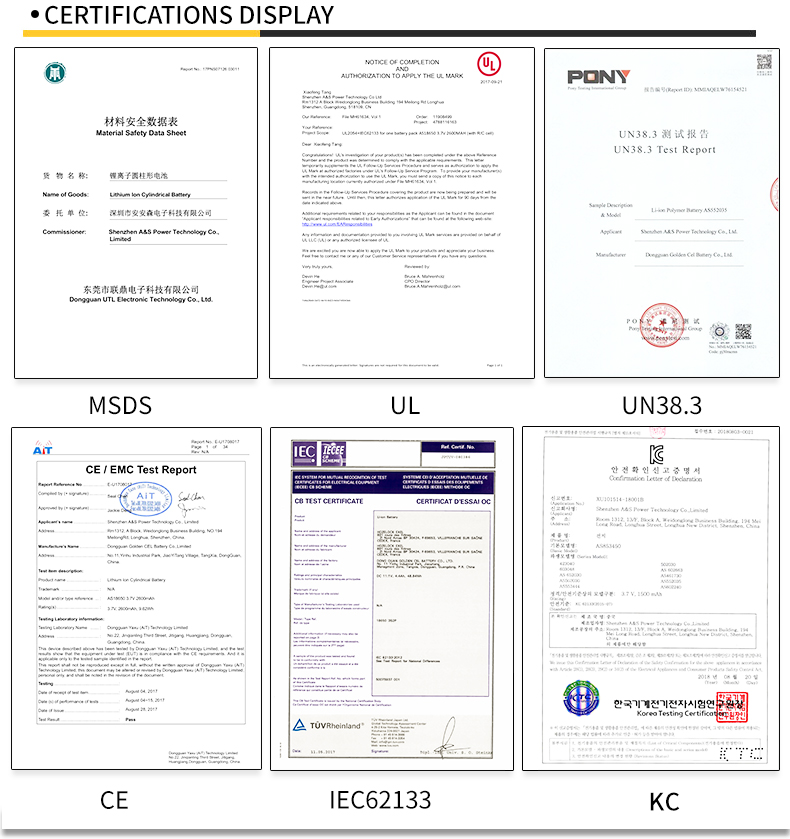

Certification:IEC62133, UN38.3, MSDS
Delivery time:2-3 weeks
Specification:
08310 130mah 3.7v Cylindrical Lipo Battery Pack for Headset With IEC62133
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
130mAh |
Discharge:0.2CmA cut off Voltage:3V for cell |
|
|
Minimum |
120mAh |
|||
|
3.2 Nominal Voltage |
Average 3.7V |
Discharge:0.2CmA cut off Voltage:3V for cell |
||
|
3.3 AC Impedance Resistance |
≤300mΩ |
|
||
|
3.4 Discharge Cut-off Voltage |
3.0V |
|
||
|
3.5 Charge Current |
26mA |
Standard Charge |
||
|
3.6 Charge Voltage |
4.2V |
|
||
|
3.7 Max. Charge Voltage |
4.23V |
|
||
|
3.8 Storage humidity |
< 75%RH |
Hygrometer |
||
|
3.9 Fast Charge current |
130mA |
1.0CmA |
||
|
3.10 Fast Discharge Current |
130mA |
1.0CmA |
||
|
3.11 Weight |
Approx 6.8g |
|
||
|
3.12 Shipping Voltage |
>3.70V |
60 ~80% of full charged |
||
|
3.13 Operating Temperature |
Charge |
0~+45℃ |
|
|
|
Discharge |
-10~+50℃ |
|
||
|
3.14 Storage Temperature |
less than 1 month |
-10~+45℃ |
Recommended storage temperature: 20℃,at the shipment state |
|
|
less than 3 months |
-10~+35℃ |
|||
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely
A&S Power Lithium Polymer Battery Model List With Certifications:
Model | Nominal voltage(V) | Capacity (mAh) | Thickness (mm) | Width (mm) | Length (mm) | Certification |
| AS10100 | 3.7 | 58 | Diameter: 10 | 10 | CQC | |
| AS08310 | 3.7 | 130 | Diameter: 8.0 | 31 | IEC62133, UN38.3 | |
| AS17450 | 3.7 | 1100 | Diameter: 17 | 45 | IEC62133(CB), UN38.3 | |
| AS10500 | 3.7 | 390 | Diameter: 10 | 50 | IEC62133(CB), UN38.3 | |
| AS102040 | 3.7 | 700 | 10 | 20 | 40 | UL1642,CE,UN38.3 |
| AS102231 | 3.7 | 600 | 10 | 22 | 31 | UL1642 |
| AS103035 | 3.7 | 1000 | 10 | 30 | 35 | UL1642,CE |
| AS103450 | 3.7 | 2000 | 10 | 34 | 50 | UL1642,CE,UN38.3 |
| AS104049 | 3.7 | 2600 | 10 | 40 | 49 | UL1642,IEC62133(CB),CE,UN38.3 |
| AS104065 | 3.7 | 3200 | 10 | 40 | 65 | UL1642,IEC62133(CB),CE,BIS,UN38.3 |
| AS105073 | 3.7 | 5000 | 10 | 50 | 73 | UL1642,CE |
| AS112560 | 3.7 | 1800 | 11 | 25 | 60 | UL1642 |
| AS125099 | 3.7 | 3750 | 12 | 50 | 99 | UL1642 |
| AS126363 | 3.7 | 5400 | 12 | 63 | 63 | UL1642,UN38.3 |
| AS253550 | 3.7 | 360 | 2.5 | 35 | 50 | UL1642,IEC62133(CB) |
| AS271420 | 3.7 | 20 | 2.7 | 14 | UL1642 | |
| AS301320 | 3.7 | 55 | 3.0 | 13 | 20 | UL1642 |
| AS302025 | 3.7 | 100 | 3.0 | 20 | 25 | UL1642 |
| AS302323 | 3.7 | 110 | 3.0 | 23 | 23 | UL1642,UN38.3 |
| AS302530 | 3.7 | 180 | 3.0 | 25 | 30 | KC |
| AS303080 | 3.7 | 850 | 3.0 | 30 | 80 | UL1642,IEC62133,CE,UN38.3 |
| AS3062173 | 3.7 | 3500 | 3.0 | 62 | 173 | UL1642 |
| AS321129 | 3.7 | 70 | 3.2 | 11 | 29 | UL1642 |
| AS351120 | 3.7 | 40 | 3.5 | 11 | 20 | UL1642,CE |
| AS351121 | 3.7 | 45 | 3.5 | 11 | 21 | UL1642 |
| AS352025 | 3.7 | 110 | 3.5 | 20 | 25 | UL1642,CE |
| AS352730 | 3.7 | 220 | 3.5 | 27 | 30 | UL1642,CE |
| AS356585 | 3.7 | 2000 | 3.5 | 65 | 85 | UL1642 |
| AS357090 | 3.7 | 2800 | 3.5 | 70 | 90 | UL1642,CE |
| AS371042 | 3.7 | 105 | 3.7 | 10 | 42 | UL1642 |
| AS381018 | 3.7 | 40 | 3.8 | 10 | 18 | UL1642 |
| AS391520 | 3.7 | 90 | 3.9 | 15 | 20 | UL1642 |
| AS392265 | 3.7 | 510 | 3.9 | 22 | 65 | UL1642 |
| AS400830 | 3.7 | 60 | 4.0 | 8 | 30 | UL1642,CE |
| AS401020 | 3.7 | 55 | 4.0 | 10 | 20 | UL1642,CE |
| AS401030 | 3.7 | 80 | 4.0 | 10 | 30 | UL1642,CE,UN38.3 |
| AS401119 | 3.7 | 50 | 4.0 | 11 | 19 | UL1642 |
| AS401120 | 3.7 | 60 | 4.0 | 11 | 20 | UL1642 |
| AS401230 | 3.7 | 120 | 4.0 | 12 | 30 | UL1642,IEC62133(CB),KC,UN38.3,CQC |
| AS401235 | 3.7 | 130 | 4.0 | 12 | 35 | UN38.3 |
| AS401245 | 3.7 | 190 | 4.0 | 12 | 45 | CE |
| AS401824 | 3.7 | 100 | 4.0 | 18 | 24 | KC |
| AS402525 | 3.7 | 200 | 4.0 | 25 | 25 | CE,KC,UN38.3 |
| AS403040 | 3.7 | 430 | 4.0 | 30 | 40 | UL1642,CE |
| AS405070 | 3.7 | 1700 | 4.0 | 50 | 70 | UL1642,CE,UN38.3 |
| AS405080 | 3.7 | 1750 | 4.0 | 50 | 80 | UN38.3 |
| AS406868 | 3.7 | 2200 | 4.0 | 68 | 68 | UL1642,CE |
| AS423040 | 3.7 | 530 | 4.2 | 30 | 40 | UL1642,UL2054,CE,KC,UN38.3 |
| AS442030 | 3.7 | 210 | 4.4 | 20 | 30 | UL1642,CE |
| AS443493 | 3.7 | 1500 | 4.4 | 34 | 93 | UL1642 |
| AS451268 | 3.7 | 280 | 4.5 | 12 | 68 | UL1642 |
| AS452428 | 3.7 | 250 | 4.5 | 24 | 28 | CE |
| AS455060 | 3.7 | 1400 | 4.5 | 50 | 60 | UL1642,CE |
| AS461730 | 3.7 | 200 | 4.6 | 17 | 30 | UL1642,CE,KC,UN38.3 |
| AS481221 | 3.7 | 70 | 4.8 | 12 | 21 | UL1642,CE |
| AS483450 | 3.7 | 850 | 4.8 | 34 | 50 | UL1642,CE,UN38.3 |
| AS495892 | 3.7 | 3000 | 4.9 | 58 | 92 | UL1642 |
| AS501235 | 3.7 | 160 | 5.0 | 12 | 35 | KC,UN38.3 |
| AS502025 | 3.7 | 180 | 5.0 | 20 | 25 | UL1642,CE,KC |
| AS502030 | 3.7 | 240 | 5.0 | 20 | 30 | UL1642,CE,KC,UN38.3 |
| AS502248 | 3.7 | 500 | 5.0 | 22 | 48 | UL1642,IEC62133(CB),CE,UN38.3 |
| AS503030 | 3.7 | 430 | 5.0 | 30 | 30 | UL1642,CE,KC |
| AS503034 | 3.7 | 460 | 5.0 | 30 | 34 | UL1642,CE |
| AS503035 | 3.7 | 500 | 5.0 | 30 | 35 | UL1642,CE |
| AS504552 | 3.7 | 1200 | 5.0 | 45 | 52 | UL1642,CE |
| AS505055 | 3.8 | 1800 | 5.0 | 50 | 55 | UL1642,UL2054,IEC62133(CB),CE,UN38.3 |
| AS505771 | 3.7 | 2200 | 5.0 | 57 | 71 | UL1642,CE |
| AS506077 | 3.7 | 3400 | 5.0 | 60 | 77 | UL1642,IEC62133(CB),CE,UN38.3 |
| AS523450 | 3.7 | 1000 | 5.2 | 35 | 50 | UL1642,CE |
| AS535058 | 3.7 | 1600 | 5.3 | 50 | 58 | UL1642,CE |
| AS542435 | 3.7 | 500 | 5.4 | 24 | 35 | UN38.3 |
| AS552035 | 3.7 | 350 | 5.5 | 20 | 35 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS |
| AS552540 | 3.7 | 540 | 5.5 | 25 | 40 | UL1642,CE |
| AS553345 | 3.7 | 720 | 5.5 | 33 | 45 | UL1642,CE |
| AS553436 | 3.7 | 740 | 5.5 | 34 | 36 | UL1642,CE |
| AS553444 | 3.7 | 650/950 | 5.5 | 34 | 44 | UL1642,CE,KC |
| AS553640 | 3.7 | 850 | 5.5 | 36 | 40 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,CQC |
| AS553759 | 3.7 | 1350 | 5.5 | 37 | 59 | UL1642,CE |
| AS556585 | 3.7 | 3600 | 5.5 | 65 | 85 | UL1642 |
| AS562438 | 3.7 | 400 | 5.6 | 24 | 38 | UL1642,CE |
| AS583573 | 3.7 | 1500 | 5.8 | 35 | 73 | UL1642 |
| AS584070 | 3.7 | 2000 | 5.8 | 40 | 70 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,PSE |
| AS593545 | 3.7 | 1050 | 5.9 | 35 | 45 | CE |
| AS601362 | 3.7 | 500 | 6.0 | 13 | 62 | UL1642,CE |
| AS601530 | 3.7 | 250 | 6.0 | 15 | 30 | CE |
| AS601470 | 3.7 | 600 | 6.0 | 14 | 70 | CE |
| AS602025 | 3.7 | 200 | 6.0 | 20 | 25 | CE |
| AS602030 | 3.7 | 300 | 6.0 | 20 | 30 | CE,KC |
| AS602240 | 3.7 | 500 | 6.0 | 22 | 40 | UL1642,CE,KC |
| AS602663 | 3.7 | 1000 | 6.0 | 26 | 63 | UL1642,IEC62133,CE,KC,UN38.3 |
| AS603030 | 3.7 | 520 | 6.0 | 30 | 30 | UL1642,IEC62133(CB),CE,KC,UN38.3,WERCS |
| AS603040 | 3.7 | 750 | 6.0 | 30 | 40 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS |
| AS603048 | 3.7 | 900 | 6.0 | 30 | 48 | UL1642,CE,KC,UN38.3 |
| AS603245 | 3.7 | 720 | 6.0 | 32 | 45 | UL1642 |
| AS603450 | 3.7 | 1050 | 6.0 | 34 | 50 | UL1642,IEC62133(CB),CE,KC,UN38.3 |
| AS603465 | 3.7 | 1350 | 6.0 | 34 | 65 | UL1642,CE |
| AS603952 | 3.7 | 1400 | 6.0 | 39 | 52 | CE |
| AS604050 | 3.7 | 1100 | 6.0 | 40 | 50 | UL1642,IEC62133(CB),UN38.3 |
| AS606060 | 3.7 | 2500/3000 | 6.0 | 60 | 60 | UL1642,CE |
| AS6060115 | 3.7 | 5000 | 6.0 | 60 | 115 | UL1642,CE |
| AS623441 | 3.7 | 1000 | 6.2 | 34 | 41 | CE |
| AS624046 | 3.7 | 1200 | 6.2 | 40 | 46 | UL1642,IEC62133(CB),CE,UN38.3 |
| AS6482148 | 3.7 | 3750 | 6.4 | 82 | 148 | UL1642 |
| AS652030 | 3.7 | 350 | 6.5 | 20 | 30 | UL1642,CE,KC,UN38.3 |
| AS652631 | 3.7 | 520 | 6.5 | 26 | 31 | UL1642,CE |
| AS653136 | 3.7 | 800 | 6.5 | 31 | 36 | CE |
| AS682134 | 3.7 | 500 | 6.8 | 21 | 34 | UL1642 |
| AS701235 | 3.7 | 250 | 7.0 | 12 | 35 | CE |
| AS701729 | 3.7 | 300 | 7.0 | 17 | 29 | UL1642,BIS |
| AS701416 | 3.7 | 100 | 7.0 | 14 | 16 | UL1642,CE |
| AS701919 | 3.7 | 150 | 7.0 | 19 | 19 | UL1642,CE |
| AS702040 | 3.7 | 500 | 7.0 | 20 | 40 | UL1642,IEC62133(CB),CE,UN38.3,WERCS |
| AS703440 | 3.7 | 1000 | 7.0 | 34 | 40 | UL1642,UL2054,CE,KC,UN38.3 |
| AS704060 | 3.7 | 1800 | 7.0 | 40 | 60 | UL1642,CE |
| AS705088 | 3.7 | 3400 | 7.0 | 50 | 88 | UL1642 |
| AS723272 | 3.7 | 1700 | 7.2 | 32 | 72 | UL1642 |
| AS753048 | 3.7 | 1200 | 7.5 | 30 | 48 | UL1642,CE,KC |
| AS755070 | 3.7 | 3000 | 7.5 | 50 | 70 | UL1642,IEC62133(CB),CE, KC |
| AS802030 | 3.7 | 420 | 8.0 | 20 | 30 | UL1642,CE |
| AS803035 | 3.7 | 800 | 8.0 | 30 | 35 | UL1642,UL2054,CE,KC,UN38.3 |
| AS803040 | 3.7 | 900 | 8.0 | 30 | 40 | CE |
| AS803648 | 3.7 | 1200 | 8.0 | 36 | 48 | UL1642,CE |
| AS805052 | 3.7 | 2500 | 8.0 | 50 | 52 | UL1642 |
| AS8051116 | 3.7 | 6900 | 8.0 | 51 | 116 | UL1642,CE |
| AS853450 | 3.7 | 1500 | 8.5 | 34 | 50 | UL1642,CE,CB,KC,UN38.3 |
| AS872237 | 3.7 | 750 | 8.7 | 22 | 37 | UL1642 |
| AS904286 | 3.7 | 4000 | 9.0 | 42 | 86 | UL1642,CE |
| AS954674 | 3.7 | 4050 | 9.5 | 46 | 74 | UL1642 |
| AS962731 | 3.7 | 720 | 9.6 | 27 | 31 | UL1642 |
| AS853450-2P | 3.7 | 3000 | 17 | 35 | 53 | UL1642,UL2054,UN38.3 |
Q1: Can I have some samples for 130mah 3.7v Cylindrical Lipo Battery Pack for Headset With IEC62133?
A1: Yes, you can buy some samples of any our products for testing quality and market.Q2: How should I pay?
A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place official order.
Q5: Are you factory?
A5: yes,we are factory.
