Specification:
UL 552540 3.7v 540mah lipo battery for bluetooth device
Specification:
Item |
Rating |
Note |
||
3.1 Capacity |
Typical |
540mAh |
Discharge:0.2CmA cut off Voltage:3V for cell |
|
Minimum |
520mAh |
|||
3.2 Nominal Voltage |
Average 3.7V |
Discharge:0.2CmA cut off Voltage:3V for cell |
||
3.3 AC Impedance Resistance |
≤170mΩ |
|
||
3.4 Discharge Cut-off Voltage |
3.00V |
|
||
3.5 Charge Current |
108mA |
Standard Charge |
||
3.6 Charge Voltage |
4.2V |
|
||
3.7 Max. Charge Voltage |
4.23V |
|
||
3.8 Storage humidity |
< 75%RH |
Hygrometer |
||
3.9 Fast Charge current |
540mA |
1.0CmA |
||
3.10 Fast Discharge Current |
540mA |
1.0CmA |
||
3.11 Weight |
Approx 10.8g |
|
||
3.12 Shipping Voltage |
>3.80V |
|
||
3.13 Operating Temperature |
Charge |
0~+45℃ |
Can be operated at max Altitude 3000m and 8%~90% humidity. |
|
Discharge |
-20~+60℃ |
Get more than 50% discharge capacity (typical) in -15°C or +55°C. |
||
3.14 Storage Temperature |
less than 1 month |
-10~+35℃ |
Recommended storage temp: 20℃,at the shipment state. |
|
less than 3 months |
-10~+25℃ |
|||
Can be stored at -25 ℃ or +70℃ in 48hrs. |

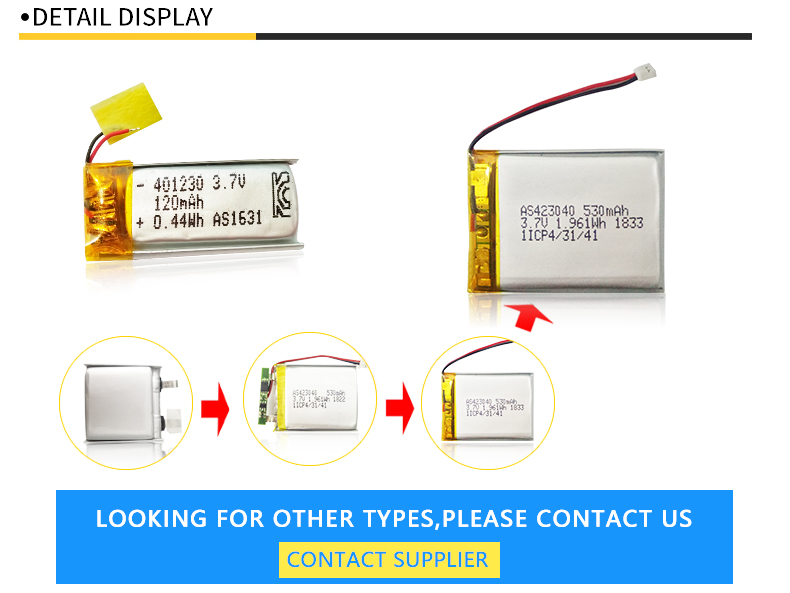

Product Photo
A&S Power Lithium Polymer Battery Model List With Certifications:
Model | Nominal voltage(V) | Capacity (mAh) | Thickness (mm) | Width (mm) | Length (mm) | Certification |
AS10100 | 3.7 | 58 | Diameter: 10 | 10 | CQC | |
AS08310 | 3.7 | 130 | Diameter: 8.0 | 31 | IEC62133, UN38.3 | |
AS17450 | 3.7 | 1100 | Diameter: 17 | 45 | IEC62133(CB), UN38.3 | |
AS10500 | 3.7 | 390 | Diameter: 10 | 50 | IEC62133(CB), UN38.3 | |
AS102040 | 3.7 | 700 | 10 | 20 | 40 | UL1642,CE,UN38.3 |
AS102231 | 3.7 | 600 | 10 | 22 | 31 | UL1642 |
AS103035 | 3.7 | 1000 | 10 | 30 | 35 | UL1642,CE |
AS103450 | 3.7 | 2000 | 10 | 34 | 50 | UL1642,CE,UN38.3 |
AS104049 | 3.7 | 2600 | 10 | 40 | 49 | UL1642,IEC62133(CB),CE,UN38.3 |
AS104065 | 3.7 | 3200 | 10 | 40 | 65 | UL1642,IEC62133(CB),CE,BIS,UN38.3 |
AS105073 | 3.7 | 5000 | 10 | 50 | 73 | UL1642,CE |
AS112560 | 3.7 | 1800 | 11 | 25 | 60 | UL1642 |
AS125099 | 3.7 | 3750 | 12 | 50 | 99 | UL1642 |
AS126363 | 3.7 | 5400 | 12 | 63 | 63 | UL1642,UN38.3 |
AS253550 | 3.7 | 360 | 2.5 | 35 | 50 | UL1642,IEC62133(CB) |
AS271420 | 3.7 | 20 | 2.7 | 14 | UL1642 | |
AS301320 | 3.7 | 55 | 3.0 | 13 | 20 | UL1642 |
AS302025 | 3.7 | 100 | 3.0 | 20 | 25 | UL1642 |
AS302323 | 3.7 | 110 | 3.0 | 23 | 23 | UL1642,UN38.3 |
AS302530 | 3.7 | 180 | 3.0 | 25 | 30 | KC |
AS303080 | 3.7 | 850 | 3.0 | 30 | 80 | UL1642,IEC62133,CE,UN38.3 |
AS3062173 | 3.7 | 3500 | 3.0 | 62 | 173 | UL1642 |
AS321129 | 3.7 | 70 | 3.2 | 11 | 29 | UL1642 |
AS351120 | 3.7 | 40 | 3.5 | 11 | 20 | UL1642,CE |
AS351121 | 3.7 | 45 | 3.5 | 11 | 21 | UL1642 |
AS352025 | 3.7 | 110 | 3.5 | 20 | 25 | UL1642,CE |
AS352730 | 3.7 | 220 | 3.5 | 27 | 30 | UL1642,CE |
AS356585 | 3.7 | 2000 | 3.5 | 65 | 85 | UL1642 |
AS357090 | 3.7 | 2800 | 3.5 | 70 | 90 | UL1642,CE |
AS371042 | 3.7 | 105 | 3.7 | 10 | 42 | UL1642 |
AS381018 | 3.7 | 40 | 3.8 | 10 | 18 | UL1642 |
AS391520 | 3.7 | 90 | 3.9 | 15 | 20 | UL1642 |
AS392265 | 3.7 | 510 | 3.9 | 22 | 65 | UL1642 |
AS400830 | 3.7 | 60 | 4.0 | 8 | 30 | UL1642,CE |
AS401020 | 3.7 | 55 | 4.0 | 10 | 20 | UL1642,CE |
AS401030 | 3.7 | 80 | 4.0 | 10 | 30 | UL1642,CE,UN38.3 |
AS401119 | 3.7 | 50 | 4.0 | 11 | 19 | UL1642 |
AS401120 | 3.7 | 60 | 4.0 | 11 | 20 | UL1642 |
AS401230 | 3.7 | 120 | 4.0 | 12 | 30 | UL1642,IEC62133(CB),KC,UN38.3,CQC |
AS401235 | 3.7 | 130 | 4.0 | 12 | 35 | UN38.3 |
AS401245 | 3.7 | 190 | 4.0 | 12 | 45 | CE |
AS401824 | 3.7 | 100 | 4.0 | 18 | 24 | KC |
AS402525 | 3.7 | 200 | 4.0 | 25 | 25 | CE,KC,UN38.3 |
AS403040 | 3.7 | 430 | 4.0 | 30 | 40 | UL1642,CE |
AS405070 | 3.7 | 1700 | 4.0 | 50 | 70 | UL1642,CE,UN38.3 |
AS405080 | 3.7 | 1750 | 4.0 | 50 | 80 | UN38.3 |
AS406868 | 3.7 | 2200 | 4.0 | 68 | 68 | UL1642,CE |
AS423040 | 3.7 | 530 | 4.2 | 30 | 40 | UL1642,UL2054,CE,KC,UN38.3 |
AS442030 | 3.7 | 210 | 4.4 | 20 | 30 | UL1642,CE |
AS443493 | 3.7 | 1500 | 4.4 | 34 | 93 | UL1642 |
AS451268 | 3.7 | 280 | 4.5 | 12 | 68 | UL1642 |
AS452428 | 3.7 | 250 | 4.5 | 24 | 28 | CE |
AS455060 | 3.7 | 1400 | 4.5 | 50 | 60 | UL1642,CE |
AS461730 | 3.7 | 200 | 4.6 | 17 | 30 | UL1642,CE,KC,UN38.3 |
AS481221 | 3.7 | 70 | 4.8 | 12 | 21 | UL1642,CE |
AS483450 | 3.7 | 850 | 4.8 | 34 | 50 | UL1642,CE,UN38.3 |
AS495892 | 3.7 | 3000 | 4.9 | 58 | 92 | UL1642 |
AS501235 | 3.7 | 160 | 5.0 | 12 | 35 | KC,UN38.3 |
AS502025 | 3.7 | 180 | 5.0 | 20 | 25 | UL1642,CE,KC |
AS502030 | 3.7 | 240 | 5.0 | 20 | 30 | UL1642,CE,KC,UN38.3 |
AS502248 | 3.7 | 500 | 5.0 | 22 | 48 | UL1642,IEC62133(CB),CE,UN38.3 |
AS503030 | 3.7 | 430 | 5.0 | 30 | 30 | UL1642,CE,KC |
AS503034 | 3.7 | 460 | 5.0 | 30 | 34 | UL1642,CE |
AS503035 | 3.7 | 500 | 5.0 | 30 | 35 | UL1642,CE |
AS504552 | 3.7 | 1200 | 5.0 | 45 | 52 | UL1642,CE |
AS505055 | 3.8 | 1800 | 5.0 | 50 | 55 | UL1642,UL2054,IEC62133(CB),CE,UN38.3 |
AS505771 | 3.7 | 2200 | 5.0 | 57 | 71 | UL1642,CE |
AS506077 | 3.7 | 3400 | 5.0 | 60 | 77 | UL1642,IEC62133(CB),CE,UN38.3 |
AS523450 | 3.7 | 1000 | 5.2 | 35 | 50 | UL1642,CE |
AS535058 | 3.7 | 1600 | 5.3 | 50 | 58 | UL1642,CE |
AS542435 | 3.7 | 500 | 5.4 | 24 | 35 | UN38.3 |
AS552035 | 3.7 | 350 | 5.5 | 20 | 35 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS |
AS552540 | 3.7 | 540 | 5.5 | 25 | 40 | UL1642,CE |
AS553345 | 3.7 | 720 | 5.5 | 33 | 45 | UL1642,CE |
AS553436 | 3.7 | 740 | 5.5 | 34 | 36 | UL1642,CE |
AS553444 | 3.7 | 650/950 | 5.5 | 34 | 44 | UL1642,CE,KC |
AS553640 | 3.7 | 850 | 5.5 | 36 | 40 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,CQC |
AS553759 | 3.7 | 1350 | 5.5 | 37 | 59 | UL1642,CE |
AS556585 | 3.7 | 3600 | 5.5 | 65 | 85 | UL1642 |
AS562438 | 3.7 | 400 | 5.6 | 24 | 38 | UL1642,CE |
AS583573 | 3.7 | 1500 | 5.8 | 35 | 73 | UL1642 |
AS584070 | 3.7 | 2000 | 5.8 | 40 | 70 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,PSE |
AS593545 | 3.7 | 1050 | 5.9 | 35 | 45 | CE |
AS601362 | 3.7 | 500 | 6.0 | 13 | 62 | UL1642,CE |
AS601530 | 3.7 | 250 | 6.0 | 15 | 30 | CE |
AS601470 | 3.7 | 600 | 6.0 | 14 | 70 | CE |
AS602025 | 3.7 | 200 | 6.0 | 20 | 25 | CE |
AS602030 | 3.7 | 300 | 6.0 | 20 | 30 | CE,KC |
AS602240 | 3.7 | 500 | 6.0 | 22 | 40 | UL1642,CE,KC |
AS602663 | 3.7 | 1000 | 6.0 | 26 | 63 | UL1642,IEC62133,CE,KC,UN38.3 |
AS603030 | 3.7 | 520 | 6.0 | 30 | 30 | UL1642,IEC62133(CB),CE,KC,UN38.3,WERCS |
AS603040 | 3.7 | 750 | 6.0 | 30 | 40 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS |
AS603048 | 3.7 | 900 | 6.0 | 30 | 48 | UL1642,CE,KC,UN38.3 |
AS603245 | 3.7 | 720 | 6.0 | 32 | 45 | UL1642 |
AS603450 | 3.7 | 1050 | 6.0 | 34 | 50 | UL1642,IEC62133(CB),CE,KC,UN38.3 |
AS603465 | 3.7 | 1350 | 6.0 | 34 | 65 | UL1642,CE |
AS603952 | 3.7 | 1400 | 6.0 | 39 | 52 | CE |
AS604050 | 3.7 | 1100 | 6.0 | 40 | 50 | UL1642,IEC62133(CB),UN38.3 |
AS606060 | 3.7 | 2500/3000 | 6.0 | 60 | 60 | UL1642,CE |
AS6060115 | 3.7 | 5000 | 6.0 | 60 | 115 | UL1642,CE |
AS623441 | 3.7 | 1000 | 6.2 | 34 | 41 | CE |
AS624046 | 3.7 | 1200 | 6.2 | 40 | 46 | UL1642,IEC62133(CB),CE,UN38.3 |
AS6482148 | 3.7 | 3750 | 6.4 | 82 | 148 | UL1642 |
AS652030 | 3.7 | 350 | 6.5 | 20 | 30 | UL1642,CE,KC,UN38.3 |
AS652631 | 3.7 | 520 | 6.5 | 26 | 31 | UL1642,CE |
AS653136 | 3.7 | 800 | 6.5 | 31 | 36 | CE |
AS682134 | 3.7 | 500 | 6.8 | 21 | 34 | UL1642 |
AS701235 | 3.7 | 250 | 7.0 | 12 | 35 | CE |
AS701729 | 3.7 | 300 | 7.0 | 17 | 29 | UL1642,BIS |
AS701416 | 3.7 | 100 | 7.0 | 14 | 16 | UL1642,CE |
AS701919 | 3.7 | 150 | 7.0 | 19 | 19 | UL1642,CE |
AS702040 | 3.7 | 500 | 7.0 | 20 | 40 | UL1642,IEC62133(CB),CE,UN38.3,WERCS |
AS703440 | 3.7 | 1000 | 7.0 | 34 | 40 | UL1642,UL2054,CE,KC,UN38.3 |
AS704060 | 3.7 | 1800 | 7.0 | 40 | 60 | UL1642,CE |
AS705088 | 3.7 | 3400 | 7.0 | 50 | 88 | UL1642 |
AS723272 | 3.7 | 1700 | 7.2 | 32 | 72 | UL1642 |
AS753048 | 3.7 | 1200 | 7.5 | 30 | 48 | UL1642,CE,KC |
AS755070 | 3.7 | 3000 | 7.5 | 50 | 70 | UL1642,IEC62133(CB),CE, KC |
AS802030 | 3.7 | 420 | 8.0 | 20 | 30 | UL1642,CE |
AS803035 | 3.7 | 800 | 8.0 | 30 | 35 | UL1642,UL2054,CE,KC,UN38.3 |
AS803040 | 3.7 | 900 | 8.0 | 30 | 40 | CE |
AS803648 | 3.7 | 1200 | 8.0 | 36 | 48 | UL1642,CE |
AS805052 | 3.7 | 2500 | 8.0 | 50 | 52 | UL1642 |
AS8051116 | 3.7 | 6900 | 8.0 | 51 | 116 | UL1642,CE |
AS853450 | 3.7 | 1500 | 8.5 | 34 | 50 | UL1642,CE,CB,KC,UN38.3 |
AS872237 | 3.7 | 750 | 8.7 | 22 | 37 | UL1642 |
AS904286 | 3.7 | 4000 | 9.0 | 42 | 86 | UL1642,CE |
AS954674 | 3.7 | 4050 | 9.5 | 46 | 74 | UL1642 |
AS962731 | 3.7 | 720 | 9.6 | 27 | 31 | UL1642 |
AS853450-2P | 3.7 | 3000 | 17 | 35 | 53 | UL1642,UL2054,UN38.3 |
