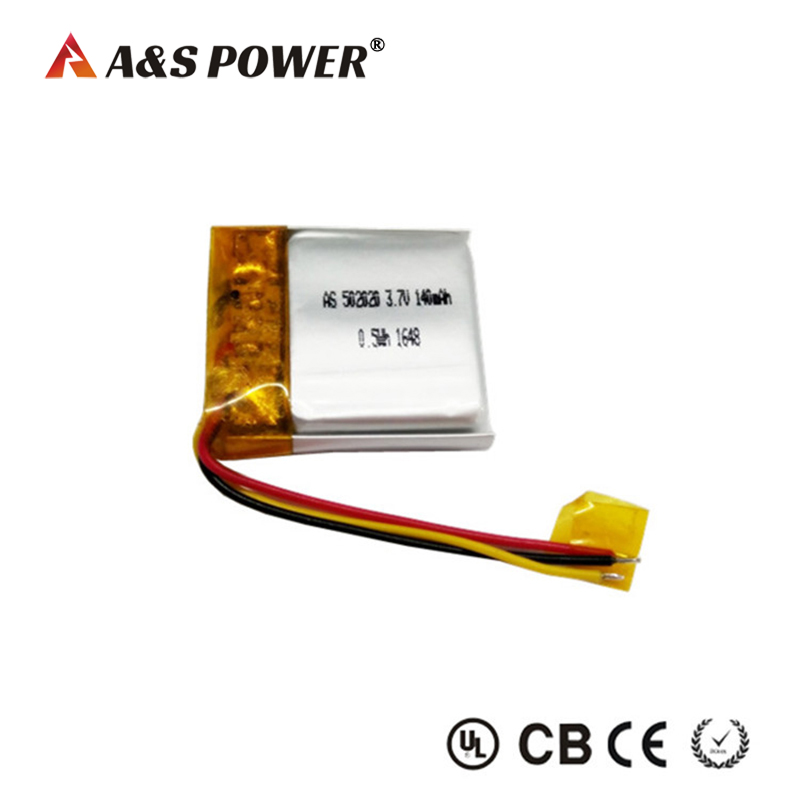

502020 3.7v 140mah lipo battery for wearable device
- Art No :CPL502020
- Material:lithium cobalt oxides
- Size :5.2*21*22.5mm
- Weight:3.2g
- Description :For wearable device
Specification:
Specification:
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
140mAh |
Discharge:0.2CmA cut off Voltage:3V for cell |
|
|
Minimum |
130mAh |
|||
|
3.2 Nominal Voltage |
Average 3.7V |
Discharge:0.2CmA cut off Voltage:3V for cell |
||
|
3.3 AC Impedance Resistance |
≤300mΩ |
|
||
|
3.4 Discharge Cut-off Voltage |
3.00V |
|
||
|
3.5 Charge Current |
28mA |
|
||
|
3.6 Charge Voltage |
4.2V |
|
||
|
3.7 Max. Charge Voltage |
4.23V |
|
||
|
3.8 Charge Time |
Approx 6.0h |
Charge: 0.2CmA |
||
|
3.9 Max. Charge Current |
140mA |
1.0CmA |
||
|
3.10 Max. Discharge Current |
140mA |
1.0CmA |
||
|
3.11 Weight |
Approx3.2g |
|
||
|
3.12 Operating Temperature |
Charge |
0~+40℃ |
|
|
|
Discharge |
-20~+60℃ |
|
||
|
3.13 Storage Temperature |
less than 1 month |
-20~+45℃ |
Recommended storage temperature: 20℃,at the shipment state |
|
|
less than 3 months |
-20~+35℃ |
|||
Product Photo
Packing and Shipping
Application
Company Information
Shenzhen A&S Power Technology Co.,Ltd, a OEM rechargeable battery manufacturer in China over 10 years. Specialized in Lithium polymer battery, LiFePO4 battery and Li-ion Battery. Our products are widely used in popular electronic products, such as Bluetooth Headset, Portable Speakers, consumer products, emergency light, GPS, digital player, solar & wind energy storage, electronic auto and E-bus.
Our UL models:
Advantage:
1.High Energy Density.
2. High Output Voltage.
3. Excellent Security.
4. Long Cycle Life: More than 500 repeated charge/discharge cycles.
5. Fast Charge Capacity: Can be fully charged in 2 to 3 hours with a rated voltage of 4.2 per cell
6. Environmental-friendly: No Pb, Cd added
7.Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload;
8.Injection Technology to make battery more stable;
9.With short-circuit production function, safe and reliable;
10.Factory mastered technology and competitive price;
11.CE/ROSH/UL/MSDS/UN38.3/IEC61233 standard.
