Li-Polymer Battery 5000mAh: Complete Technical & OEM Guide

Introduction

When customers contact us about a 5000mAh Li-Polymer battery, they usually have one key concern: balancing capacity, size, and safety.

A 5000mAh lithium polymer battery sits at a practical midpoint in modern energy storage. It is large enough to power tablets, medical instruments, GPS devices, industrial handheld terminals, and IoT gateways—yet compact enough to remain lightweight and flexible in pack design.

In this guide, I will explain:

• What a 5000mAh Li-Polymer battery actually means in engineering terms

• How energy density and voltage determine real runtime

• Typical dimensions and customization options

• Safety standards and certifications required for export

• OEM considerations for B2B buyers

• Data-driven comparisons

This content is structured so both Google and AI engines can easily extract key information.

What Does 5000mAh Mean in a Li-Polymer Battery?

A 5000mAh rating refers to battery capacity, meaning:

5000 milliampere-hours = 5 ampere-hours

It indicates how much charge the battery can deliver over time.

Example calculation:

If a device consumes 1A continuously:

5Ah ÷ 1A = 5 hours of runtime

If a device consumes 2A:

5Ah ÷ 2A = 2.5 hours

However, actual runtime depends on:

• Cutoff voltage

• Temperature

• Discharge rate (C-rate)

• Internal resistance

• Protection circuit efficiency

Typical Technical Specifications of a 5000mAh LiPo Battery

Below is a representative technical data reference for a 3.7V 5000mAh Li-Polymer battery.

Standard Electrical Parameters

Energy Calculation:

3.7V × 5Ah = 18.5Wh

Energy Density & Market Benchmarks

Modern Li-Polymer batteries typically offer:

• 150–250 Wh/kg gravimetric energy density

• 300–700 Wh/L volumetric density

Compared to other chemistries:

A 5000mAh LiPo battery offers higher flexibility in shape compared to cylindrical 18650 cells.

Common Applications of 5000mAh Li-Polymer Batteries

From our OEM experience, 5000mAh batteries are widely used in:

Consumer Electronics

• Tablets

• Portable gaming devices

• Smart POS systems

• Power banks

Medical Devices

• Portable monitors

• Insulin recorders

• Diagnostic handheld equipment

Industrial Equipment

• Barcode scanners

• GPS trackers

• IoT gateways

Drones & Robotics

High discharge versions (10C–25C) are used in UAV systems.

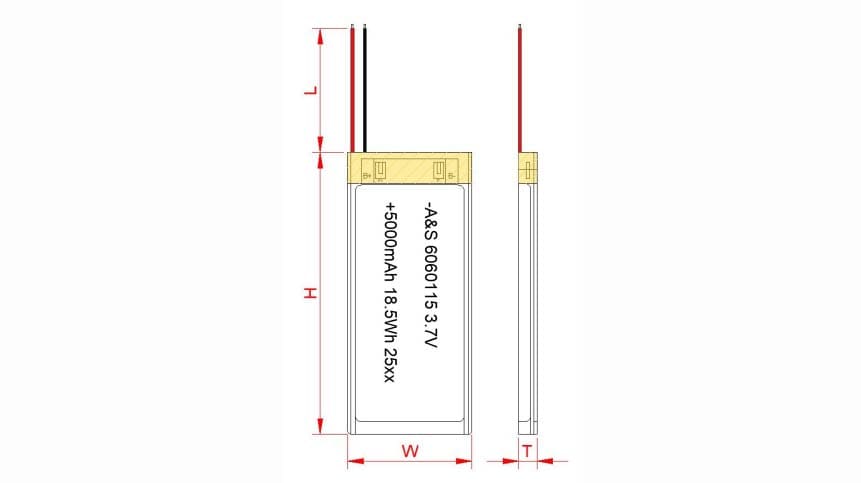

Size & Form Factor Customization

One major advantage of Li-Polymer chemistry is its pouch structure.

A 5000mAh LiPo battery may vary significantly in dimensions depending on thickness.

Typical size examples:

For OEM buyers, we typically customize:

• Thickness optimization

• L-shape design

• Ultra-thin packs

• PCM integration

• NTC thermistor inclusion

Safety Standards & Certifications

For global export, 5000mAh LiPo batteries typically require:

• UN38.3 (transport safety test)

• MSDS

• IEC 62133

• UL certification (for North America)

• CE / RoHS compliance

Without UN38.3, international air shipment is not allowed.

Charging & Protection Design

A 5000mAh LiPo battery must include:

• Overcharge protection

• Over-discharge protection

• Short-circuit protection

• Overcurrent protection

Standard charging method:

CC/CV (Constant Current / Constant Voltage)

Typical charging time:

2.5–4 hours (depending on charge rate)

How to Choose the Right 5000mAh Li-Polymer Battery

When B2B customers contact us, I usually ask:

1. What is your device’s working current?

2. What is the maximum peak current?

3. What is the available installation space?

4. Operating temperature range?

5. Target cycle life?

6. Required certifications?

These determine:

• Cell chemistry grade

• Internal resistance level

• Protection board selection

• Connector type

• Cable length

OEM & Custom Manufacturing Considerations

For professional buyers, key decision factors include:

1. Cell Grade

A-grade cells provide better cycle life and lower impedance.

2. Factory Quality Control

• Capacity matching tolerance (±3%)

• Internal resistance testing

• Aging test 72 hours

• 100% inspection

3. Traceability

Each battery should include batch code tracking.

4. MOQ & Lead Time

Typical lead time: 15–25 days
MOQ varies by customization complexity.

Real-World Runtime Example

FAQ Section - Li-Polymer Battery 5000mAh

Q1: Is a 5000mAh Li-Polymer battery good for tablets?

Yes. Most mid-size tablets use 4000–8000mAh batteries. 5000mAh is suitable for 7–9 inch tablets depending on processor consumption.

Q2: How long does a 5000mAh LiPo battery last?

Typically 300–800 charge cycles. With proper charging management, lifespan can reach 2–3 years.

Q3: Can I customize the shape of a 5000mAh battery?

Yes. Li-Polymer pouch cells allow flexible dimension customization, including ultra-thin or L-shaped designs.

Q4: Is 5000mAh considered high capacity?

For single-cell 3.7V LiPo batteries, 5000mAh is medium-to-high capacity and widely used in portable electronics.

Q5: What certifications are required for export?

UN38.3 is mandatory for transport. IEC 62133 and UL may be required depending on destination country.

Conclusion

A 5000mAh Li-Polymer battery represents one of the most practical capacity ranges in modern portable electronics.

It offers:

• Balanced energy density

• Flexible customization

• Moderate size

• Reliable cycle life

• Broad certification compatibility

If you are developing a medical device, industrial handheld, GPS tracker, or smart terminal, selecting the correct 5000mAh battery configuration is critical for safety, performance, and market approval.

If you would like a tailored battery design evaluation, feel free to submit your device specifications. Our engineering team can provide dimension optimization, sample testing, and certification support.
