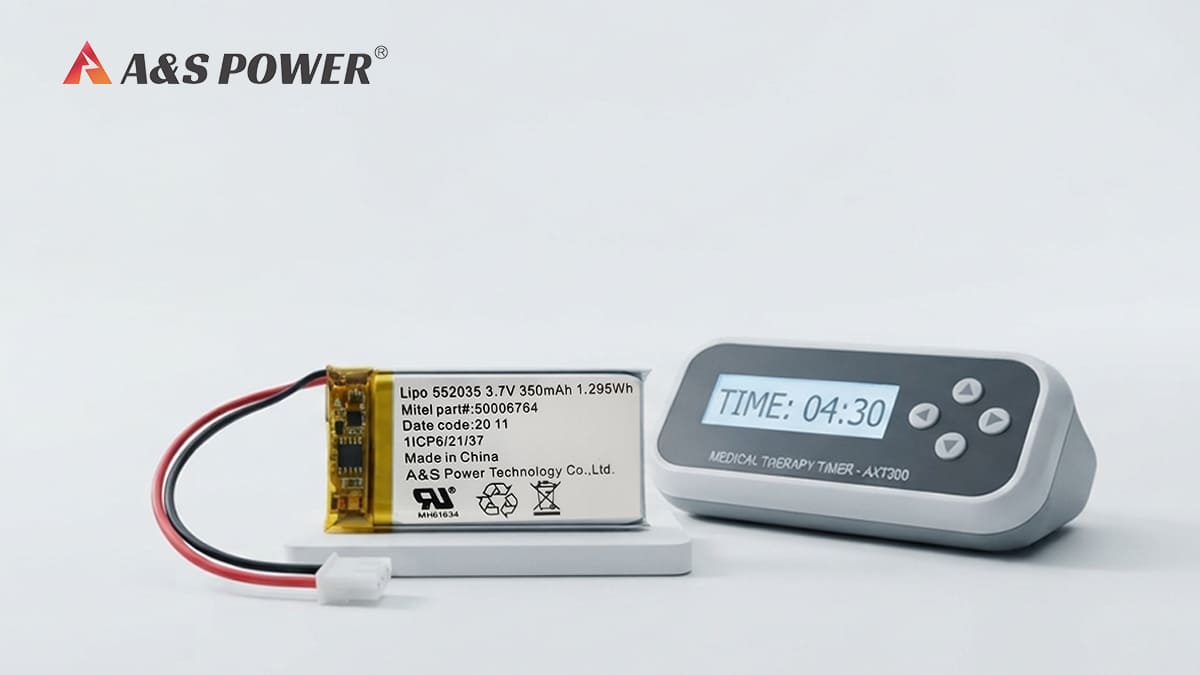

Custom Medical Timer LiPo Battery: Reliable Power Solution for Compact Medical Devices

Introduction

In modern healthcare equipment, battery performance directly affects device reliability, accuracy, and user experience. Medical timers, portable monitoring devices, infusion controllers, diagnostic equipment, and wearable healthcare products require a stable and compact power source that can operate safely for extended periods.

From my experience working with OEM customers in medical and industrial electronics, I have found that lithium polymer (LiPo) batteries are one of the most suitable battery technologies for compact medical timer applications. Compared with traditional cylindrical batteries, LiPo batteries provide higher design flexibility, lighter weight, and customizable dimensions, allowing engineers to maximize limited internal space.

For compact medical timer devices, the battery must provide stable voltage output, reliable cycle life, and compliance with international safety requirements. The AS552035 3.7V 350mAh LiPo Battery developed by A&S Power is designed for applications where size, reliability, and safety are critical. This rechargeable lithium polymer battery features a compact 5.7 × 20.5 × 37.5mm form factor, approximately 7g weight, and supports applications such as medical devices, IoT equipment, wearable electronics, and portable monitoring systems.

This article explains how custom medical timer LiPo batteries are designed, why LiPo technology is preferred for healthcare equipment, and how the AS552035 battery can support next-generation medical device development.

Why Medical Timer Devices Need Custom LiPo Batteries

Medical timer devices are often designed for portability and continuous operation. Unlike consumer electronics, medical equipment has stricter requirements for power stability, safety, and reliability.

A medical timer battery must provide:

• Stable voltage output during operation
• Compact size for portable designs
• Long service life
• Low self-discharge characteristics
• Reliable charging performance
• Safety protection against overcharge and over-discharge

Standard batteries may not always meet these requirements because medical devices often have unique internal structures. A customized LiPo battery allows manufacturers to optimize:

• Battery dimensions
• Capacity
• Connector type
• Protection circuit design
• Wire configuration
• Charging characteristics

For example, a handheld medical timer may require a thin battery that fits behind the display module, while a wearable healthcare device may require a lightweight battery that reduces user discomfort.

This is where custom lithium polymer battery technology provides advantages.

Advantages of LiPo Battery Technology for Medical Timers

Flexible Design for Space-Limited Medical Devices

One of the biggest advantages of lithium polymer batteries is their flexible pouch-cell structure.

Traditional cylindrical batteries have fixed dimensions, while LiPo batteries can be customized into different shapes and thicknesses. This allows engineers to design batteries around the device structure instead of redesigning the device around the battery.

For medical timers and portable healthcare devices, this flexibility helps manufacturers achieve:

• Smaller product dimensions
• Lower device weight
• Better internal space utilization

The AS552035 LiPo battery uses a compact pouch-cell design with dimensions of only 5.7 × 20.5 × 37.5mm, making it suitable for small electronic equipment where installation space is limited.

Specification of 552035 3.7V 350mah lipo battery:

Stable 3.7V Power Output for Medical Electronics

Most portable medical electronic devices are designed around 3.7V lithium battery systems because this voltage range matches many low-power electronic circuits.

The AS552035 provides:

Parameter	Specification	AS552035 3.7V 350mAh LiPo Battery
Battery Type	Lithium Polymer Battery
Nominal Voltage	3.7V
Capacity	350mAh
Energy	Approximately 1.3Wh
Weight	Approx. 7g
Size	5.7 × 20.5 × 37.5mm
Charging Voltage	4.2V
Cut-off Voltage	3.0V

A stable voltage supply is especially important for medical timers because inaccurate power delivery may affect timing accuracy, display performance, sensor operation, or communication functions.

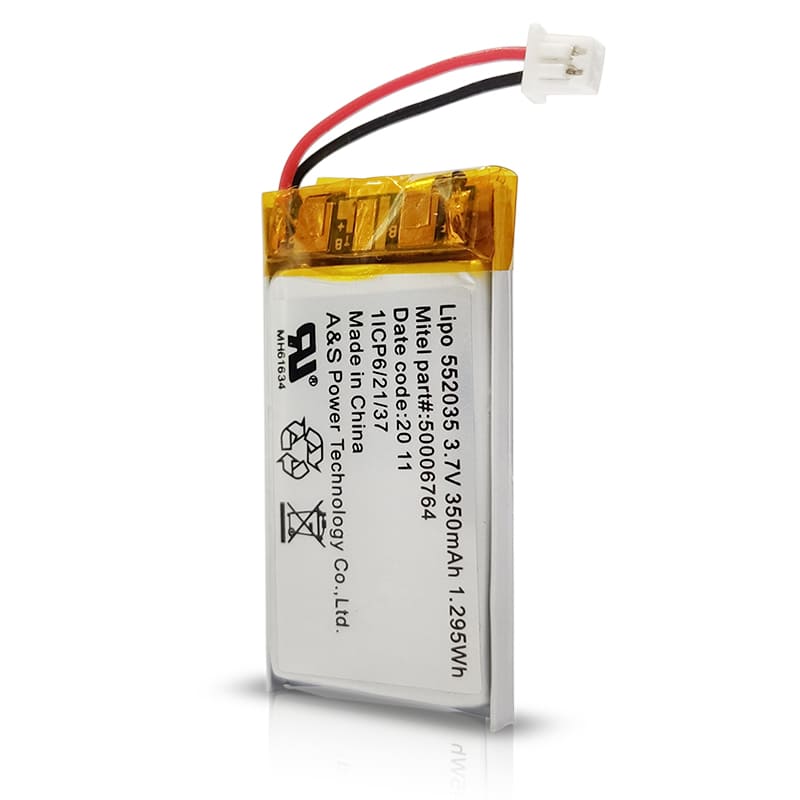

AS552035 3.7V 350mAh LiPo Battery for Medical Timer Applications

The AS552035 is a compact rechargeable lithium polymer battery designed for applications requiring reliable energy in a small footprint.

As a battery manufacturer, we commonly recommend this type of battery solution for:

• Portable medical timers
• Patient monitoring equipment
• Wearable healthcare devices
• Electronic diagnostic equipment
• Smart healthcare sensors
• IoT medical devices

The battery integrates protection design options including overcharge protection, over-discharge protection, and over-current protection, helping improve operational safety in medical applications.

For OEM medical device manufacturers, the battery can also be customized according to product requirements, including:

• Custom connector selection
• Cable length adjustment
• Battery management system (BMS)
• Capacity optimization
• Mechanical structure customization

Custom Medical Timer LiPo Battery Design Considerations

When developing a medical timer device, selecting the right battery is only one part of the engineering process. A reliable power solution requires cooperation between battery chemistry, mechanical design, electronic circuits, and safety requirements.

From my experience supporting OEM battery projects, I usually recommend evaluating the following factors before finalizing a medical timer LiPo battery design.

1. Battery Capacity and Operating Time Calculation

Battery capacity directly affects how long a medical timer can operate between charging cycles.

The required capacity depends on:

• Device operating current
• Working frequency
• Display type
• Sensor modules
• Wireless communication functions
• Standby power consumption

For example, a low-power medical timer consuming approximately 20mA average current can theoretically achieve:

350mAh ÷ 20mA ≈ 17.5 hours

of continuous operation under ideal conditions.

In real applications, engineers normally consider conversion efficiency, battery aging, temperature conditions, and safety margins.

The AS552035 3.7V 350mAh LiPo battery provides a balanced solution between compact size and usable energy density, making it suitable for portable medical equipment where space is limited.

2. Protection and Safety Requirements for Medical Devices

Safety is one of the most important considerations when selecting batteries for healthcare applications.

Medical timer batteries typically require protection features including:

For medical applications, battery suppliers should provide reliable quality control, safety testing, and traceable manufacturing processes.

The AS552035 LiPo battery supports certifications including UL2054, IEC62133, CE, RoHS, UN38.3, and KC, helping OEM customers meet international compliance requirements for battery transportation and product development.

Technical Comparison: LiPo Battery vs Traditional Battery Solutions for Medical Timers

Different battery chemistries have different advantages. For compact medical timer applications, lithium polymer batteries are often selected because of their flexibility and energy efficiency.

Compared with traditional battery technologies, LiPo batteries allow medical equipment manufacturers to create smaller and lighter products while maintaining sufficient operating time.

This advantage is especially important for:

• Wearable medical devices
• Portable monitoring systems
• Home healthcare equipment
• Handheld diagnostic instruments

Why Choose A&S Power for Custom Medical Timer LiPo Battery Solutions?

As a lithium battery manufacturer specializing in OEM and ODM projects, I understand that medical device companies need more than a standard battery.

A successful medical battery project requires:

• Engineering support
• Customized battery design
• Stable mass production
• Quality control
• Certification assistance

At A&S Power, we provide customized lithium polymer battery solutions based on customer device requirements, including:

Custom Battery Dimensions

Medical equipment manufacturers often have strict internal space limitations. We can customize battery thickness, length, and width according to device structure.

Customized Connectors and Cable Design

Different medical products require different connection solutions, including:

• JST connectors
• Molex connectors
• Wire length customization
• Terminal adjustments

Customized Protection Circuit Design

Battery protection boards can be optimized according to:

• Charging requirements
• Current consumption
• Device communication needs
• Safety standards

OEM Production Capability

For companies developing medical timers or healthcare devices, a reliable battery supplier helps reduce development risks and shorten product launch cycles.

Future Development Trends of Medical Timer Battery Technology

The healthcare electronics market continues to move toward smaller, smarter, and more connected devices.

Future medical timer systems are expected to integrate:

• Bluetooth connectivity
• Remote monitoring
• IoT communication
• Real-time health data collection
• AI-assisted diagnosis functions

These developments increase battery requirements because devices need stable power while maintaining compact dimensions.

Custom LiPo battery technology will continue playing an important role because it provides:

• Higher design flexibility
• Better space utilization
• Lightweight construction
• Adaptable manufacturing options

For medical device developers, choosing the correct battery partner during the early design stage can significantly improve product reliability and user experience.

Conclusion

Custom Medical Timer LiPo Battery Provides Reliable Power for Healthcare Innovation

A reliable battery is a critical component of every portable medical device. Medical timers require stable voltage output, compact dimensions, safety protection, and long-term reliability.

The AS552035 3.7V 350mAh LiPo Battery represents a practical solution for compact medical and healthcare applications requiring dependable rechargeable power.

With its small form factor, lightweight structure, and customizable design possibilities, this battery can support OEM manufacturers developing next-generation medical timers, wearable healthcare devices, and portable monitoring equipment.

From my perspective as a battery manufacturer, successful medical battery development is not only about selecting a cell. It requires cooperation between battery engineering, device design, and quality management to create a safe and reliable final product.
