You can protect Lifepo4 battery by following a few simple steps every day. Use the correct charger and always check the voltage. Keep your battery away from extreme heat or cold. Store it in a dry place and inspect it for any damage.

Good habits help you get the most life and safest use from your battery.

Key Takeaways

• Always use a charger made for Lifepo4 batteries. This helps stop damage and keeps you safe. - Watch the battery voltage when charging. Do not let it go over 3.55V per cell. This keeps the battery healthy. - Keep your Lifepo4 battery between -20°C and +55°C. This helps it work well and last longer. - Store your battery with a 40-50% charge. This slows down aging and keeps it healthy. - Check your battery often for damage. Clean the terminals to keep it safe and working well.

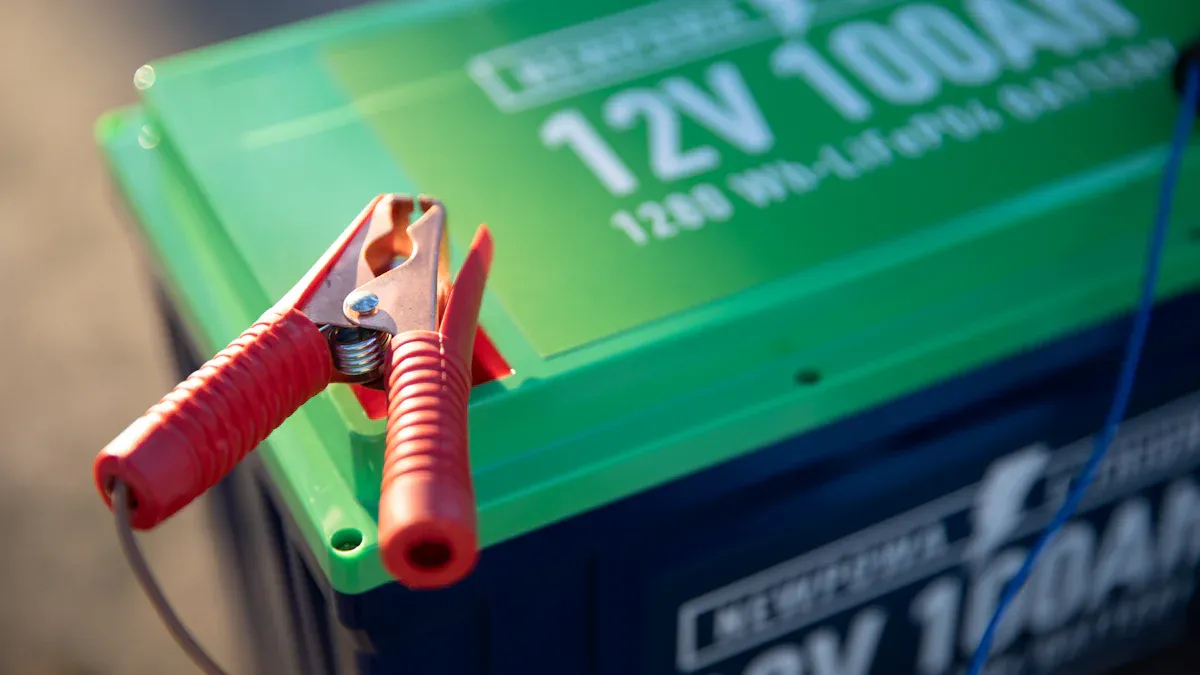

Charging to Protect Lifepo4 Battery

Charging your Lifepo4 battery the right way is very important. It helps keep Lifepo4 battery safe and working well. You need to use the correct charger. Watch the voltage and check the temperature when charging. These things help your battery last longer and work better.

Use the Right Charger

Always pick a charger made for deep cycle Lifepo4 batteries. These chargers set the voltage and current for your battery. Using the wrong charger can hurt the battery or make it not last as long. Many Lifepo4 chargers have safety features. These features stop overcharging and overheating.

Tip: Find chargers that say "Lifepo4" or "Lithium Iron Phosphate" on the label.

Charging below 32°F (0°C) is bad for your battery. Cold slows down the chemical reactions inside the battery. Charging when it is too cold can cause lithium plating. This damage cannot be fixed and makes the battery hold less charge. Some chargers and Battery Management Systems (BMS) stop charging if it is too cold. This helps protect Lifepo4 battery health.

Avoid Overcharging

Overcharging is dangerous for any battery, even Lifepo4. Too much energy can cause many problems. The table below shows what can happen if you overcharge your Lifepo4 battery:

To stay safe, use a charger with automatic shut-off or a BMS. The BMS stops charging when the battery reaches a safe voltage. It also checks the battery to stop overheating and deep discharge. This system keeps each cell safe and helps your battery work well.

• The BMS turns on overcharge protection if voltage is too high.
• The BMS checks battery operation all the time to stop damage.
• The BMS keeps each cell safe from overcharging and other risks.

Monitor Voltage (3.55V/Cell)

Watch the voltage of your Lifepo4 battery when charging. The best maximum voltage for most Lifepo4 cells is 3.55 volts per cell. Charging higher than this can make the battery not last as long and can be unsafe. Most good chargers and BMS units let you set or check this voltage.

Note: If you do not have a BMS, use a voltmeter to check voltage when charging. Stop charging if voltage goes above 3.55V per cell.

By following these charging tips, you can keep Lifepo4 battery safe from common problems. This helps your battery last longer. Always use the right charger, do not overcharge, and watch the voltage to keep your battery healthy.

Discharge Management

Prevent Deep Discharge

You should not let your Lifepo4 battery run too low. If the battery gets too empty, it will not last as long. Lifepo4 batteries handle deep discharges better than some others. But you still need to keep the battery above a safe level. The table below shows what happens if you let the battery get too empty:

If you let the battery go below the safe voltage, it can get damaged. Most people say to keep the voltage above 11.2V. If it drops under 10.8V, it can hurt the battery. Look at the table for safe voltage levels:

Tip: Use a battery monitor or set alerts. These can warn you if the voltage gets too low.

Track Battery Levels

It is important to watch your battery levels. This helps your system work well. If you know how much charge is left, you can stop deep discharge. You can also plan when to use your battery. There are many ways to track battery levels. Some use smart computer programs. Others use simple monitors. The table below shows some ways to track your battery:

You can use a simple battery monitor every day. Some systems use smart programs for better results. Watching your battery levels helps you stop problems. It also helps your battery last longer.

Checking your battery often and using smart tools helps you stop deep discharge and keep your battery in good shape.

Temperature Safety

Avoid Charging Below 32°F

If you charge your Lifepo4 battery when it is too cold, it can get damaged forever. Charging below 32°F (0°C) slows down the battery’s chemical reactions. This can cause lithium plating, which makes the battery not last as long or work as well. Wait until the battery is warmer than freezing before charging. Many smart chargers and battery management systems stop charging if it is too cold. This helps you avoid making expensive mistakes.

Tip: If you need to use your battery in cold weather, keep it in a warm place or use a battery heater.

Protect from Heat and Cold

Hot and cold temperatures can change how your Lifepo4 battery works. Too much heat makes the passivation layer inside the battery grow faster. This causes bigger LiCl crystals to form, which lowers how well the battery works. Cold makes the battery’s electrolyte thicker. This slows down the reactions that help your battery charge and discharge. Keep your battery away from sunlight, heaters, or freezing places.

• Put your battery in a cool, shady spot with good airflow.
• Do not leave your battery in a car on very hot or cold days.
• Use covers or insulation if you have to store the battery outside.

Maintain Optimal Range

You can protect Lifepo4 battery by keeping it in the best temperature range for charging and using. The table below shows the best temperature ranges:

Staying in these ranges helps your battery last longer and work better. If you use your battery outside these temperatures a lot, it may not work as well or last as long.

Keeping your battery at the right temperature is an easy way to make sure it stays safe and works well.

Storage Best Practices

Store at 40-50% Charge

Keep your Lifepo4 battery charged between 40% and 50%. This level helps slow down aging. It keeps the battery healthy for a longer time. If you store it full or empty, it wears out faster. Storing at this level is best because:

• Lithium-ion batteries last longer at 40-60% charge.
• Full or empty storage makes batteries break down faster.

If you want to store your battery for weeks or months, check the charge first. Use a battery monitor or voltmeter to make sure it stays in the safe range.

Tip: Write down when you store the battery and its charge level. This helps you remember to check it later.

Avoid Moisture

Water can hurt your Lifepo4 battery. It can cause rust on the terminals. It may also lead to short circuits. Always keep your battery in a dry place. Pick a spot with low humidity, like a closet or a box with a lid. If you live where it is humid, use silica gel packs or a dehumidifier to keep the air dry.

• Keep the battery off the ground so it stays dry.
• Do not put the battery near windows or in basements where water can collect.

Keeping your battery dry stops rust and keeps it safe.

Cycle Every 3 Months

Cycle your Lifepo4 battery every three months. This means you use the battery and then recharge it. Cycling keeps the battery’s chemistry active. It stops the battery from losing power. If you do not use the battery for a long time, it may not work well later.

If you follow these storage tips, you protect Lifepo4 battery from problems. Good habits help your battery last longer and work better when you need it.

Maintenance and Safety

Inspect for Damage

Check your Lifepo4 battery for damage before using it. Look for cracks, bulges, or leaks on the outside. Watch for loose wires or burned spots too. If you see any of these, stop using the battery. Damaged batteries can be unsafe and may not work right.

Tip: Try to check your battery every month. Finding problems early helps you fix them before they get worse.

Clean and Protect Terminals

Dirty or rusty terminals can make bad connections. This can cause your battery to lose power or stop working. Wipe the terminals with a dry cloth. If you see rust, use a small brush to clean it off. You can spray a special protectant on the terminals to stop rust. This spray keeps water away and keeps the metal shiny.

• Always disconnect the battery before you clean it.
• Make sure the terminals are dry before you hook them up again.

Use DC-Rated Fuses

Fuses help keep your battery safe from short circuits and overloads. Use DC-rated fuses because they work best with Lifepo4 batteries. These fuses protect your battery and your devices from harm. For high voltage systems, pick a fuse that matches your battery’s voltage and current.

Wear Protective Gear

Safety is important when you work with batteries. Always wear safety glasses and gloves. This gear keeps your eyes and hands safe from sparks or leaks. When you connect the battery, hook up the positive terminal first. Then connect the negative terminal. When you take the battery off, remove the negative terminal first.

Wearing the right gear and following safe steps helps you protect Lifepo4 battery and yourself.

Battery Management System (BMS)

A Battery Management System (BMS) works like the brain for your Lifepo4 battery. You need a BMS to keep your battery safe and working right. The BMS checks and controls many things in your battery. It helps stop problems and helps your battery last longer.

BMS Benefits

A BMS gives you many good things when you use it with your Lifepo4 battery. The BMS keeps your battery from getting hurt and helps it last longer. Here are some main features and how they help:

• The BMS will stop charging if the voltage is too high or too low. This keeps your battery safe from getting too full or too empty.
• Overheating protection helps stop fires or damage. The BMS checks the temperature and can turn off the battery if it gets too hot.
• Cell-balancing makes sure every cell charges and uses power the same way. This keeps your battery healthy and helps it last longer.
• Intelligent energy optimization helps your battery work smarter. You get better use and longer life.

A BMS helps you feel safe. You know your battery is protected and working well.

Firmware Updates

You should look for firmware updates for your BMS. Firmware is the program that tells your BMS what to do. Updates can fix problems, add new things, or make your battery safer. Many BMS units let you update the firmware with a computer or phone app.

• Always follow the steps from your battery or BMS company.
• Update your firmware in a safe place with steady power.
• Check for updates every few months.

Keeping your BMS firmware updated helps you get the newest safety and performance changes. This easy step can make your Lifepo4 battery even safer and more dependable.

Common Mistakes to Avoid

You should know about mistakes that can hurt your Lifepo4 battery. Some people do not realize these mistakes are risky. Learning about them helps you keep your battery safe and working well.

Wrong Charger Use

Many people use the wrong charger by accident. Lifepo4 batteries need special chargers made just for them. If you use a charger for another battery, it can overcharge or undercharge. This can hurt the battery cells or make it unsafe. Some chargers do not stop at the right voltage. Others charge too quickly or too slowly.

• Chargers not made for Lifepo4 might cause:
  • The battery to get too hot
  • The battery to swell up
  • The battery to not last as long

Always read the charger label. Make sure it says "Lifepo4" or "Lithium Iron Phosphate" so it matches your battery.

Ignoring Manufacturer Guidelines

The company that makes your battery gives you important rules. If you do not follow these rules, your battery can get damaged or you might lose your warranty. Some people store batteries where it is too hot or too cold. This makes the battery get old faster and not work as well. Others leave batteries in things for a long time, which can cause leaks or swelling.

Some common mistakes are:

• Letting the battery run out all the way
• Storing the battery where it is too hot or cold
• Leaving batteries in things when not using them

Follow the manufacturer's rules to keep your battery safe and avoid problems.

Skipping Inspections

You should look at your battery often. If you skip checking, you might not see problems early. Cracks, bulges, or leaks can turn into bigger problems if you do not find them soon. Dirty or rusty ends can also make the battery not work right.

Make checking your battery a habit. This easy step can help your battery last longer and keep you safe.

You can keep your Lifepo4 battery safe by using good habits every day. Always use the right charger and do not let it get too hot or cold. Store the battery in a dry place and look at it often for problems. These actions help your battery last longer and work better. Taking care of your battery saves you money and helps the earth. Look at the table below to see more good things:

Start caring for your battery now. Your work keeps your battery safe and your devices working well.
