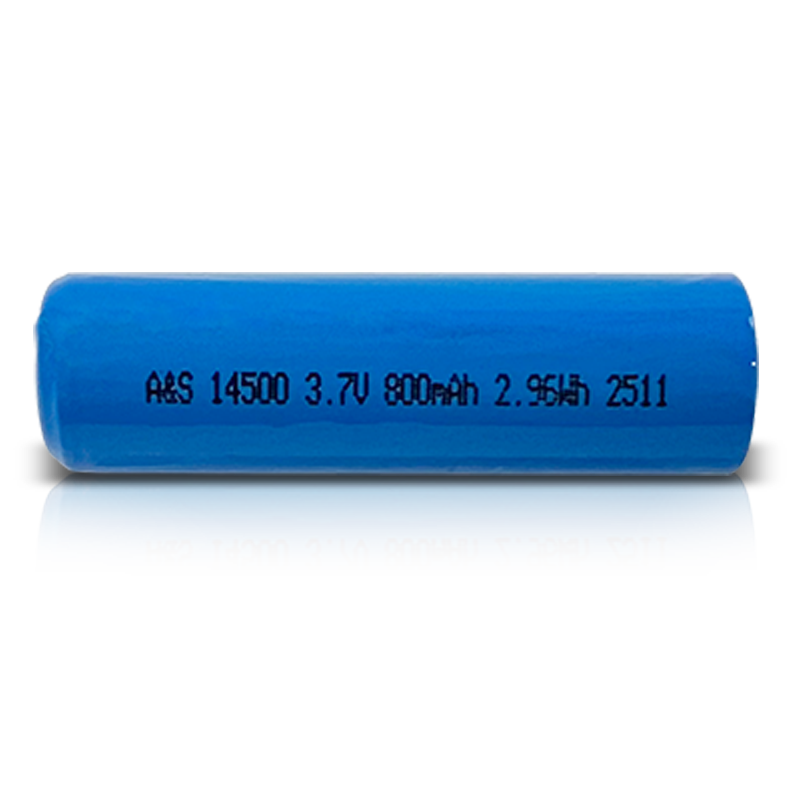

Li-lon Battey 14500 3.7v 800mAh Lithium Ion Battery Cells 500 Deep Cycles
A&S Power Rechargeable Lithium Ion Battery Cell 14500 3.7v 800mAh Customized Li-Ion Cell for digital products.
-
Parameters
-
Common Applications
-
Other Products
-
Handling Precautions & Guidelines
Parameters
Norminal Capacity: 800mAh
Rated Voltage: 3.7V
Weight: Appr. 28g
Dimensions (mm): 14.5*49.5mm
lmpedance: ≤220mΩ
Standard Charge/Discharge: 0.2C
Max Charge/Discharge: 800mA(+10~+45℃) / 1600mA(+10~+45℃)
Peak Discharge: 1600mA(+10~+45℃)
Charge Temp: 160mA 0~+45℃ | 800mA +10~+45℃
Discharge Temp: -20~+60℃
14500 3.7v 800mAh Lithium Ion Battery Cells Product Parameters:
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
800mAh |
Temperature：25±5℃ Charge：0.2C Discharge：0.2C |
|
|
|
Minimum |
750mAh |
|
|
|
3.2 Nominal Voltage |
Average 3.7V |
|
||
|
3.3 AC Impedance Resistance |
≤220mΩ |
Battery pack |
||
|
3.4 Discharge Cut-off Voltage |
3.0V |
|
||
|
3.5 Charge Current |
160mA |
Standard Charge |
||
|
3.6 Charge voltage |
4.2V |
Cut-off current≤8mA |
||
|
3.7 Charge Time |
Approx:6 h |
Standard Charge |
||
|
3.8 Storage humidity |
< 85%RH |
|
||
|
3.9 Max Charge Continuous |
800mA |
+10~+45℃ |
||
|
3.10 Discharge Continuous |
400mA |
|
||
|
3.11 Max Discharge Continuous |
1600mA |
+10~+45℃ |
||
|
3.12 Peak Discharge Current |
2400mA |
＜1S |
||
|
3.13 Weight |
Approx 28g |
|
||
|
3.14 Shipping Voltage |
3.85~3.95V |
|
||
|
3.15 Operating Temperature |
Charge |
0~+45℃ |
Max Charge：160mA |
|
|
|
|
+10~+45℃ |
Max Charge：800mA |
|
|
|
Discharge |
-20~+60℃ |
|
|
|
3.16 Storage Temperature |
less than 1 month |
-10~+45℃ |
Recommended storage temperature: 25±2℃,at the shipment st |
|
Product Description:
14500 3.7v 800mAh Battery Applications
1. Consumer electronics
Toys and smart home devices: such as remote control cars, electronic pets, smart lamps, etc. Such devices have high requirements for battery size and safety. The size of 14500 batteries is compatible with No. 5 batteries (AA), which is suitable for replacing traditional batteries.
Portable lamps: such as high-intensity flashlights, laser pens, etc. 14500 batteries are often used in such devices. Their high energy density and rechargeable characteristics enhance portability.
2. Power tools and small devices
Household power tools: including electric shavers, hair clippers, small electric drills, etc. Web page 1 mentions that the battery is suitable for power tools. 14500 is used in power tool scenarios, especially for devices that require frequent charging and discharging.
Medical equipment: such as portable massagers, blood pressure monitors, etc., which rely on stable voltage and small battery design.
3. Electric vehicle auxiliary system
Electric bicycles/motorcycles: as a power source for low-power components (such as lights and sensors), used in electric two-wheeled vehicles.
Golf carts, electric wheelchairs: used for driving or auxiliary systems, 3.7V voltage adapts to the low voltage requirements of such equipment.
4. Energy storage and industrial equipment
Solar energy storage system: as a small energy storage module, it supports energy storage for low-power devices. 14500 is used in solar energy systems and uninterruptible power supplies (UPS).
Industrial sensors and monitoring equipment: with a wide temperature range (-10℃~60℃), it is suitable for long-term use in industrial environments.
5. Other application scenarios
Marine equipment and drones: some small shipborne electronic equipment or drones may use this type of battery, relying on its lightweight design.
Smart door locks: fingerprint recognition smart locks require rechargeable batteries, and the size and capacity of 14500 may be suitable for such products.
Dimensional Drawing of 14500 :
 |
|

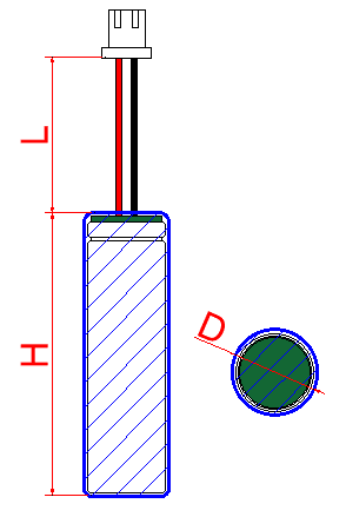

Dimensional Drawing of 14500 1S1P battery dimensions :
 |
|
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
