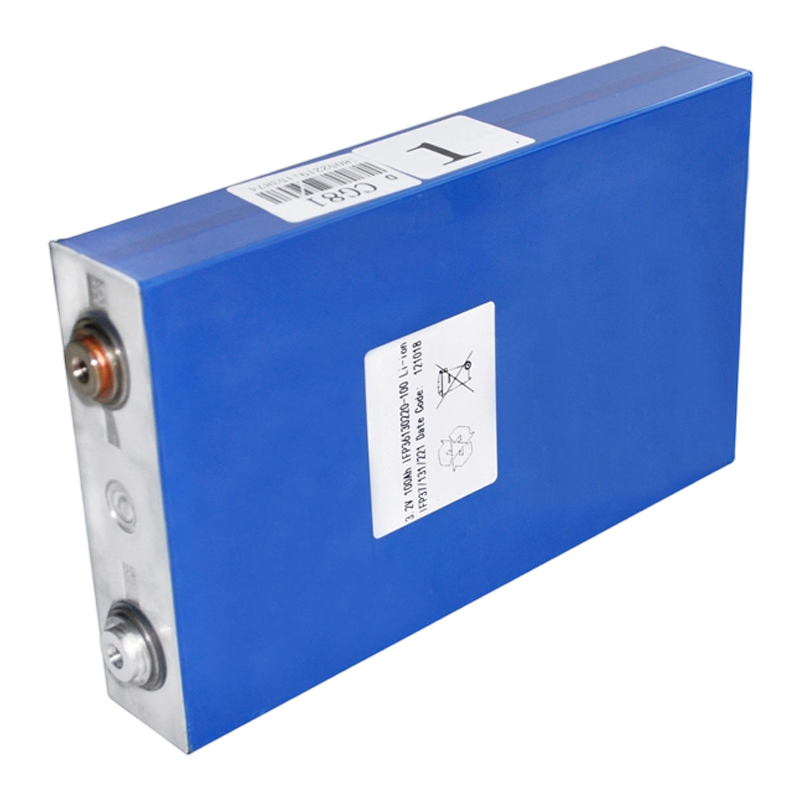

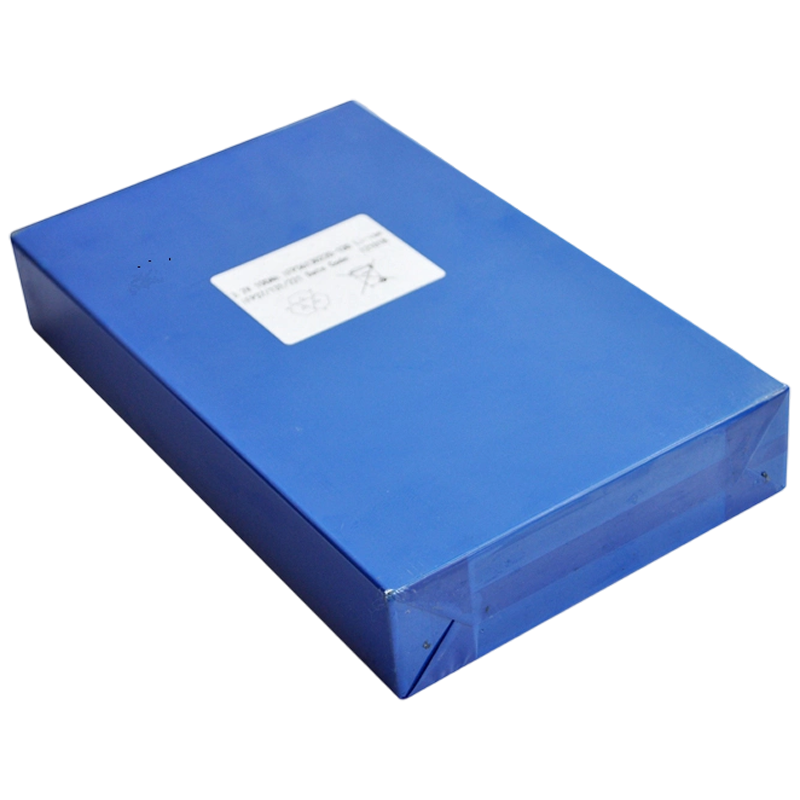

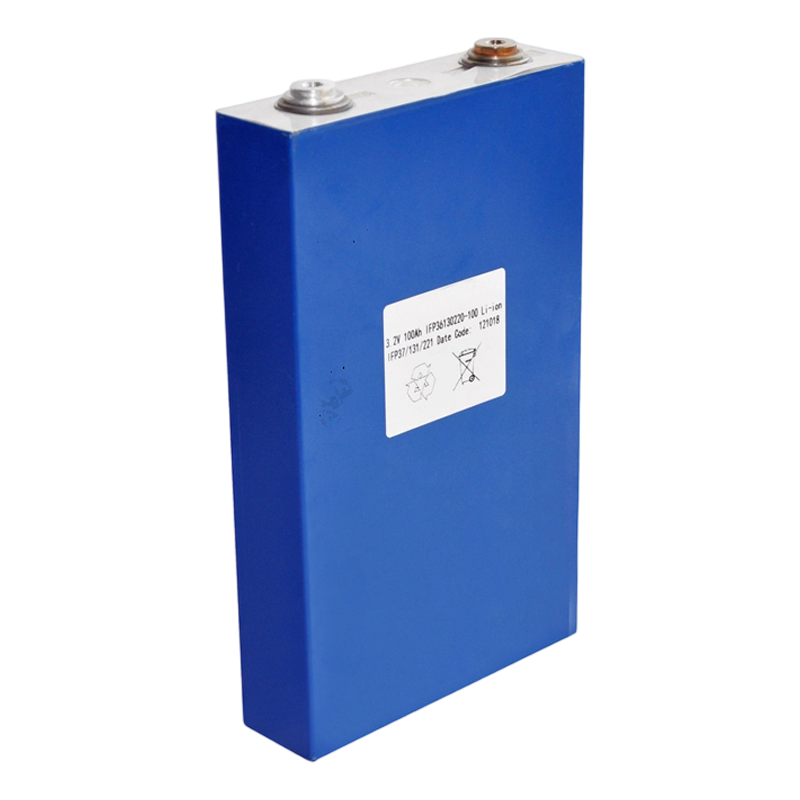

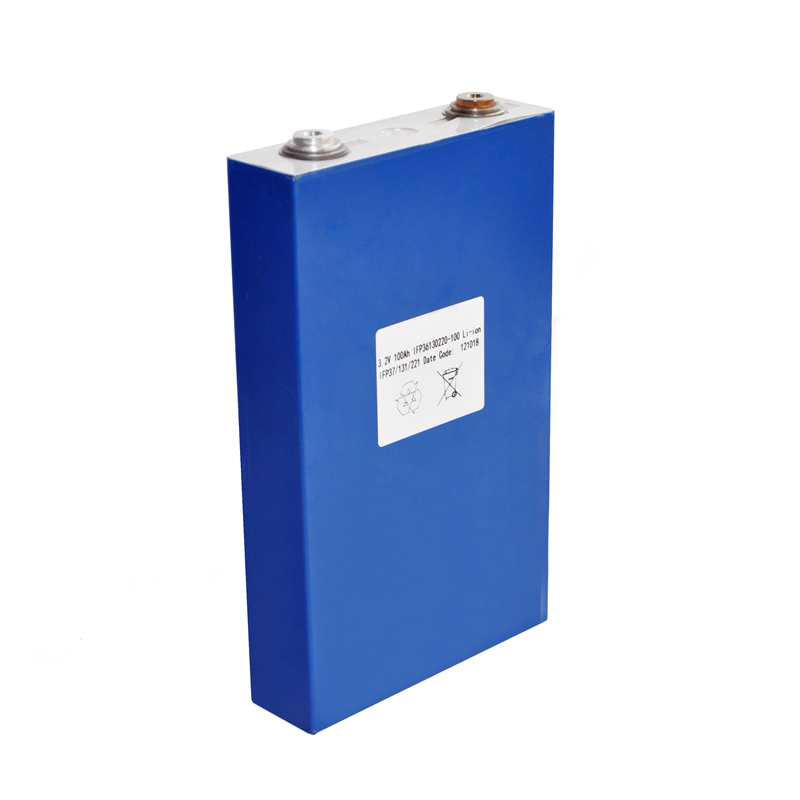

LiFePO4 Battery AS37130200 3.2v 100Ah Lifepo4 Rechargeable Battery Cell
Support customized mass production,Safety and High Energy.
-
Parameters
-
Common Applications
-
Other Products
-
Handling Precautions & Guidelines
Parameters
Norminal Capacity: 100Ah
Rated Voltage: 3.2V
Weight: 3.2kg
Dimensions (mm): 37*130*200mm
lmpedance: ≤1mΩ
Standard Charge/Discharge: 0.2C
Max Charge/Discharge: 100A
Peak Discharge: -
Charge Temp: 0~+45ºC
Discharge Temp: -20~+60ºC
37130200 3.2V 100Ah Product Parameters: |
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
100AH |
From 3.65V to 2.5V by discharge current 0.5C.
|
|
|
Minimum |
100AH |
|||
|
3.2 Nominal Voltage |
Average 3.2V |
|
||
|
3.3 AC Impedance Resistance |
≤1mΩ |
|
||
|
3.4 Discharge Cut-off Voltage |
2.50V |
|
||
|
3.5 Charge Current |
50A |
Standard Charge |
||
|
3.6 Charge voltage |
3.65V |
|
||
|
3.7 Storage humidity |
< 75%RH |
|
||
|
38 Fast Charge current |
100 A |
15~35℃ |
||
|
3.9 Discharge Current |
50 A |
|
||
|
3.10 Fast Discharge Current |
100A |
|
||
|
3.11 Weight |
Approx 2.0kg |
|
||
|
3.12 Shipping Voltage |
3.20-3.40V |
|
||
|
3.13 Shell Material |
Aluminum case |
|
||
|
3.14 Operating Temperature |
Charge |
0~+55℃ |
|
|
|
Discharge |
-20~+55℃ |
|
||
|
3.15 Storage Temperature |
less than 1 month |
-10~+45℃ |
Recommended storage temperature: 25±2℃,at the shipment state |
|
|
less than 3 months |
-10~+40℃ |
|||
|
less than 6 months |
-10~+30℃ |
|||
|
Core parameters: Voltage: 3.2v Certification: - |
 |
Cooperation Case
Project name: 3.2v 100Ah lifepo4 battery used for solar street light project
Detailed introduction:
Project name: 3.2v 100Ah lifepo4 battery used for solar street light project
Detailed introduction: We got this customer inquiry on Alibaba in 2013, they are a public company in France, mainly do the solar street light project, and they has the inquiry for this 3.2v 100Ah Lithium lron Phosphate Battery on their solar street light project. After quotation and long discussion. we understand that customer most care about is the battery quality. so we invite customer to have a visit of our factory. after 2 times meeting, and 2 times samples testing, our 3.2v 100ah lifepo4 battery final get our approval of our customer, and place bulk order with us.
And this year, they also have other inquiry of 12.8v 14Ah lifepo4 battery for their new solar street lamp in park project. here attached for the photos.
Some customer always think the price is important, but what's matters, it is the product quality and good service. For any battery inqury, please contact me.
OEM & ODM |
Dimension and capacity can be customized as your needs |
 |
1. "Customized" battery voltage,capacity size and case.
|
Shenzhen A&S Power Technology Co.,Ltd
- An OEM rechargeable battery manufacturer in China for over 18 years. Specializing in Lithium Polymer Battery, LiFePO4 Battery and Li-ion Battery Pack. Our batteries have got certifications such as UL, IEC62133, CB, CE, ROHS, and some models have also passed KC, BIS certification.
- As a responsible and experienced battery manufacturer for over 18 years, we have been officially recognized by Philips, JVC, Skullcandy, Flex, Mitel, etc. since 2013.
- Our products are widely used in popular electronic products such as Bluetooth Headsets, Portable Speakers, consumer products, emergency lights, GPS, digital players, solar & wind energy storage, electronic auto and E-buses.
- A&S Power actively participates in international exhibitions every year, such as CEBI and HK Electronic Fair. We strictly implement international management standards and have established a complete quality assurance system. We have successfully sold batteries to the international markets of America, Canada, Europe, Africa, the Middle East and South Asia.
- With the tenet of "People-oriented, Quality first and Keeping improving", we continue to improve quality, reduce costs and enhance services. We pay more attention to market changes, client needs, safety & environmental protection, and assume social responsibility.
- A&S Power is dedicated to creating the life stage for employees and providing lithium batteries that are popular with customers all over the world.
- With passion and faithfulness, we are committed to establishing a win-win business and striding forward to create a better future for your company.
Our Service
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries professional in English of course.
• OEM is highly welcomed. We have strong R&D team here to help.
• Your business relationship with us will be confidential to any third party.
• 1 year warranty of products and good after-sale service offered, please get back if you got question.
Contact Us
Shenzhen A&S Power Technology Co., Ltd
Tel: +86-0755-28169348
Fax:+86-0755-84157385
E-mail: info@szaspower.com
sales@szaspower.com
Address: Rm1312,A Block,Weidonglong Business Building,No.2125 Meilong Rd,Longhua,Shenzhen,Guangdong,518109,CHINA
Our website lists just some of the products we have
successfully supplied,but please note this is just
representative and an example of our products&service,
so,if you cannot see the product you are looking for, please contact us today!!!
LiFePO4 Battery Applications
Other LiFePO4 Battery
| Model No. | images | Voltage [V] | Capacity [mAh] | Thickness [mm] | Width [mm] | Length [mm] | Weight [g] |
|---|---|---|---|---|---|---|---|
 |
12.8v
|
50000
|
138
|
217
|
229
|
6.7kg
|
|
 |
12.8v
|
100000
|
220
|
172
|
328
|
13.1kg
|
|
 |
12.8v
|
18000
|
67.5
|
102
|
150
|
1.6kg
|
|
 |
12.8v
|
7000
|
75
|
110
|
75
|
850
|
|
 |
48v
|
100000
|
269
|
220
|
521
|
42kg
|
|
 |
48v
|
60000
|
208
|
173
|
405
|
21kg
|
|
 |
12.8v
|
18000
|
67
|
102
|
151
|
1.6kg
|
|
 |
3.2v
|
200000
|
71
|
182
|
279
|
5.4kg
|
|
 |
12.8v
|
3000
|
28
|
72
|
107
|
362
|
|
 |
12.8v
|
5000
|
73
|
65
|
132
|
//
|
|
 |
3.2v
|
6000
|
28
|
53
|
67
|
150
|
|
 |
12.8v
|
20000
|
106
|
105
|
146
|
3.2kg
|
|
 |
12.8v
|
3000
|
29
|
54
|
135
|
365
|
|
 |
3.2v
|
1400
|
18
|
//
|
65
|
45
|
|
 |
12.8v
|
18000
|
67.5
|
102
|
144.5
|
1.6kg
|
|
 |
12.8v
|
120000
|
170
|
240
|
483
|
16.2kg
|
|
 |
12.8v
|
150000
|
170
|
240
|
483
|
19.2kg
|
|
 |
25.6v
|
6000
|
75
|
35
|
263
|
1kg
|
|
 |
3.2v
|
20000
|
8.1
|
133.5
|
202.5
|
600g
|
|
 |
25.6v
|
6000
|
62
|
69
|
215
|
1.4kg
|
|
 |
3.2v
|
100000
|
200
|
37
|
130
|
3.2kg
|
|
 |
12.8v
|
40000
|
140
|
85
|
220
|
4kg
|
|
 |
3.2v
|
25000
|
210
|
9.5
|
156
|
0.62kg
|
|
 |
25.6v
|
100000
|
208
|
173
|
405
|
21kg
|
|
 |
12.8v
|
20000
|
167.5
|
77
|
181
|
3kg
|
|
 |
48v
|
50000
|
208
|
173
|
405
|
21kg
|
|
 |
3.2v
|
3500
|
//
|
26
|
65
|
95g
|
|
 |
3.2v
|
3300
|
//
|
26
|
65
|
95g
|
|
 |
3.2v
|
3800
|
//
|
26
|
65
|
95g
|
|
 |
3.2v
|
3200
|
//
|
26
|
65
|
90g
|
|
 |
3.2v
|
3000
|
//
|
26
|
65
|
90g
|
|
 |
12.8v
|
12000
|
101
|
98
|
151
|
1.55kg
|
|
 |
12.8v
|
120000
|
240
|
170
|
483
|
16.5kg
|
|
 |
12.8v
|
150000
|
240
|
170
|
483
|
19.2kg
|
|
 |
12.8v
|
200000
|
220
|
238
|
522
|
27kg
|
|
 |
12.8v
|
84000
|
218
|
169
|
260
|
10.2kg
|
|
 |
12.8v
|
60000
|
218
|
169
|
260
|
9.2kg
|
|
 |
25.6v
|
50000
|
220
|
172
|
328
|
13.5kg
|
|
 |
12.8v
|
7000
|
100
|
65
|
151
|
1.06kg
|
|
 |
12.8v
|
9000
|
94
|
65
|
151
|
1.34kg
|
Handling Precautions & Guidelines
-
How should I pay?
You can pay via T/TL/C at sightWestern Union Cash etc. 100% T/T in advance for samples. For large quantities 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms please contac
-
Can lithium batteries be customized for specific applications?
Yes we provide tailored lithium batteries solutions to meet our customers' precise needs. Our customization options include size capacity voltage maximum discharge rate and other parameters. Contact us to explore how we can create a battery solution that fits your requirements perfectly.
-
What is delivery time if we place an order?
It depends order quantities. Usually we can deliver goods within 3 -5 working days for small orders for more QTY. order let's confirm when you place official order.
-
Are you factory?
We have factories both in Dongguan China. The factory covers an area of 8000㎡ Has 500 employees And 25 R&D engineers.We can produce 100000 lithium batteries every dayThe factory has passed SGS & TUV QMS certification.
-
What is the minimum order quantity (MOQ) for lithium batteries?
The minimum order quantity of customized batteries is 3000 pcs. MOQ varies by battery type There is no minimum order quantity for conventional batteries.Contact us for details.
-
Can I get samples of lithium batteries before placing a bulk order?
Yes many suppliers offer samples of lithium batteries for testing and evaluation purposes. However there are costs associated with obtaining samples including sample fees and freight charges.
-
How safe are A&S Power Lithium Batteries?
Our batteries have special mechanisms to prevent overcharging discharging or short-circuiting.Each battery is tested for cycles safety aging and voltage before delivery.
