A&S Power 18650 25.9V 15.6AH lithium ion battery

1.Model:Li-ion18650 7S6P
2.Voltage: 25.9V
3.Capacity: 15.6Ah
4.Dimension:75*120*138mm
5.Weight: 2.5kg

Item			Rating	Note
3.1    Capacity		Typical	15.6Ah	Discharge:0.2CmA
		Minimum	15.0Ah
3.2    Nominal Voltage			Average  25.9V	Discharge:0.2CmA
3.3    Discharge Cut-off Voltage			21.0V
3.4    Charge Current			3.0A	Standard Charge
3.5    Charge Voltage			29.4V
3.6    Charge Time			Approx 6h	Charge: 0.2CmA
3.7    Max. Continue Charge Current			7.5A	10~45ºC
3.8    Continue Discharge Current			7.5A	-20~60ºC
3.9    Peak Discharge Current			15.0A	-10~45ºC
3.10   Weight			Approx 2.5KG
3.11  Operating Temperature	Charge		0~+45ºC
	Discharge		-20~+60ºC
3.12  Storage       Temperature	less than 1 month		-10~+45ºC	Recommended storage temperature: 20ºC,at the shipment state
	less than 3 months		-10~+35ºC

A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors.  We hope you find the one in our product list and suite you the best.  If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.

Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades.  We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production.  Our Customer Service can help for engineering suggestion to meet your specification.

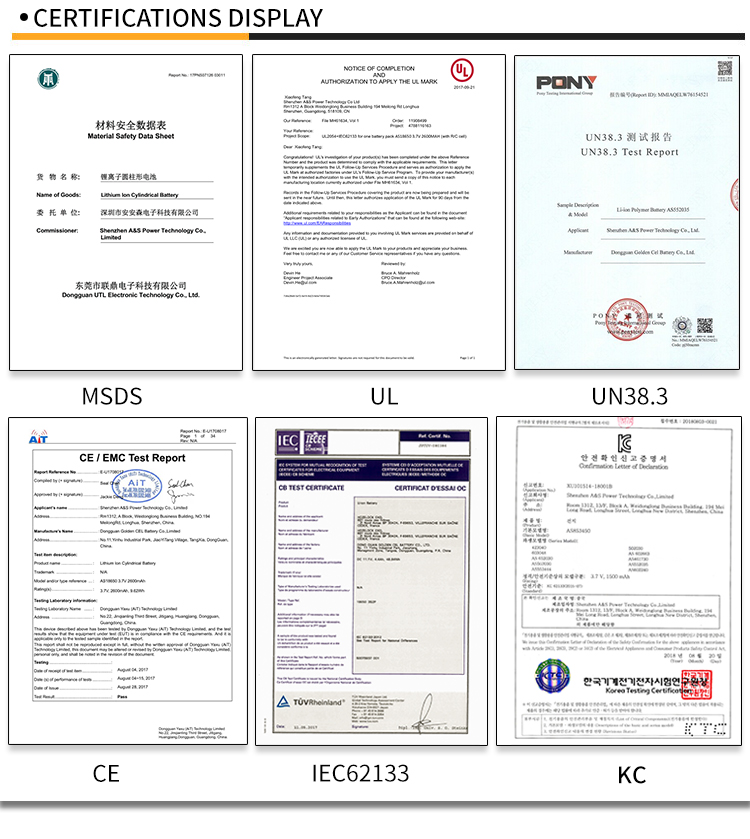

A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.

Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely

Lithium Ion Battery Cell Models:

Model	Nominal voltage(V)	Capacity (mAh)	Max charge voltage(V)	Cut-off discharge voltage(V)	Max continuous discharge currnt(C)	Diameter  φ ( mm)	Height  ( mm)	Weight (approx)(g)
AS-18650	3.7	2000	4.25	2.75	3C	18	65	43.5
AS-18650	3.7	2200	4.25	2.75	3C	18	65	45
AS-18650	3.7	2500	4.25	2.75	3C	18	65	45.5
AS-18650	3.7	2600	4.25	2.75	3C	18	65	46
AS-18650	3.6	3200	4.25	2.5	2C	18	65	45.5
AS-18650	3.6	3350	4.25	2.5	1C	18	65	46
AS-21700	3.6	4000	4.25	2.5	5C	21	70	68.5
AS-21700	3.6	4500	4.25	2.5	3C	21	70	69
AS-21700	3.6	4800	4.25	2.5	1C	21	70	70
AS-21700	3.6	5000	4.25	2.5	1C	21	70	70

A&S Power Hot Selling 18650 Lithium Ion Battery Pack With Certifications:

Model	Nominal voltage(V)	Capacity (mAh)	Max charge voltage(V)	Cut-off discharge voltage(V)	Max continuous discharge currnt(C)	Weight (approx)(g)	Certification
AS-18650-2600-11	3.7	2600	4.2	3	1C	49	UL2054,IEC62133(CB),CE,KC,UN38.3
AS-18650-2000-21	7.4	2000	8.4	6	1C	89	UL2054,IEC62133(CB),UN38.3
AS-18650-2600-21	7.4	2600	8.4	6	1C	90	IEC62133(CB),UN38.3
AS-18650-3350-21	7.4	3350	8.4	5	1C	92	IEC62133(CB)
AS-18650-2000-32	11.1	4000	12.6	9	0.5C	265	UL2054,UN38.3
AS-18650-2600-41	14.8	2600	16.8	12	1C	185	IEC62133(CB)
AS-18650-2500-52	18.5	5000	21	15	1C	480	IEC62133(CB),UN38.3
AS-18650-2000-62	22.2	4000	25.2	18	2C	530	IEC62133(CB),UN38.3
AS-21700-5000-14	3.7	20000	4.2	2.5	0.25	300	UN38.3
AS-21700-4800-12	3.7	9600	4.2	2.5	0.2	150	UN38.3
AS-21700-4800-73	25.9	15000	29.4	17.5	0.5	1500	CE
AS-21700-50E-22	7.4	10000	8.4	5	0.5	300	IEC62133(CB),UN38.3

•Your inquiry related to our product & price will be replied within 24hours.

• Well-trained & experienced staff are to answer all your inquiries professional in English of course.

• OEM is highly welcomed. We have strong R&D team here to help.

• Your business relationship with us will be confidential to any third party.

•1 year warranty of products and good after-sale service offered, please get back if you got question.

 Q1: Can I have some samples for testing quality?

 A1:  Yes, you can buy some samples of any our products for testing quality and market.
 Q2: How should I pay?
 A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30%  T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
 Q3: What is your package looks like? Can I have the customized package?
 A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne  by the buyers, for more details, please contact us.
 Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place official order.
 Q5: Are you factory?

A5: yes,we are factory.

Our website lists just some of the products we have successfully supplied,but please note this is just representative and an example of our products&service,so,if you cannot see the product you are looking for, please contact us today!!!
