A&S Power 18650 4S2P 14.8v 5200mah lithium ion battery
prevnext

A&S Power 18650 4S2P 14.8v 5200mah lithium ion battery

  • Art No :AS-ICR18650-4S2P
  • Material:lithium ion battery
  • Size :40*70*75mm
  • Weight:380g
  • Description :

    18650 4S2P 14.8v 5200mah lithium ion battery


    The Shortest Sample Time:7 days

    Order confirmation to delivery:30 days


A&S Power 18650 4S2P 14.8v 5200mah lithium ion battery

Product details


Specification:

A&S Power 18650 4S2P 14.8v 5200mah lithium ion battery


Specification:

Item

Rating

Note

3.1    Capacity

Typical

5200mAh

Discharge:0.2CmA

cut off Voltage:3V for cell

Minimum

5100mAh

3.2    Nominal Voltage

Average  14.8v

Discharge:0.2CmA

cut off Voltage:3V for cell

3.3    AC Impedance Resistance

320mΩ



3.4    Discharge Cut-off Voltage

12.00V



3.5    Charge Current

1040mA



3.6    Charge Voltage

14.6V



3.7    Max. Charge Voltage

14.69V



3.8    Charge Time

Approx 6.0h

Charge: 0.2CmA

3.9    Max. Charge Current

5200mA

1.0CmA

3.10   Max. Discharge Current

5200mA

1.0CmA

3.11   Weight

Approx380.0g



3.12  Operating

Temperature

Charge

0~+40



Discharge

-20~+60



3.13  Storage

      Temperature

less than 1 month

-20~+45

Recommended storage

temperature: 20,at the

shipment state

less than 3 months

-20~+35

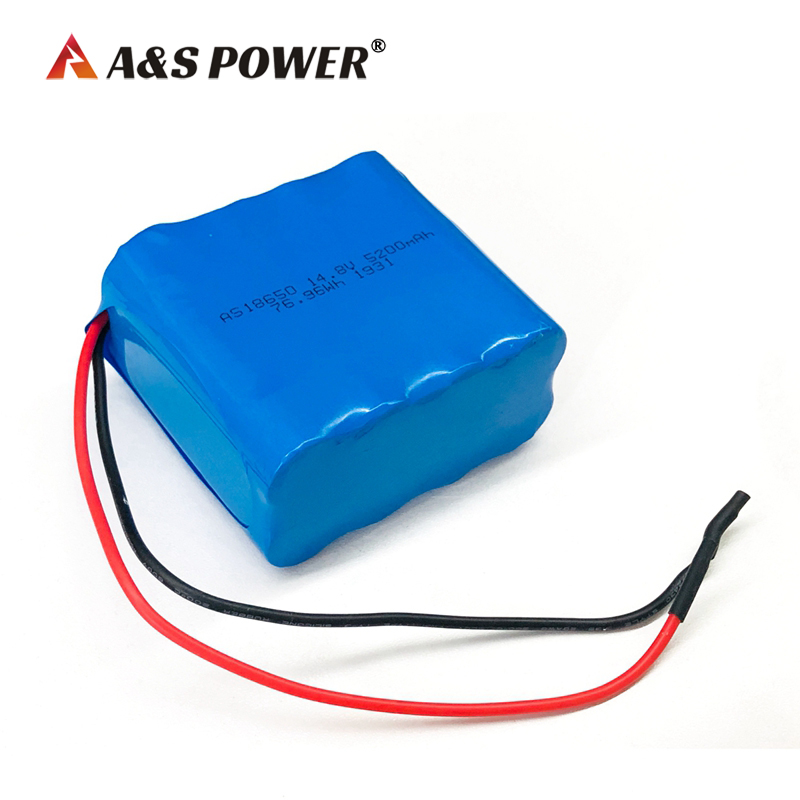

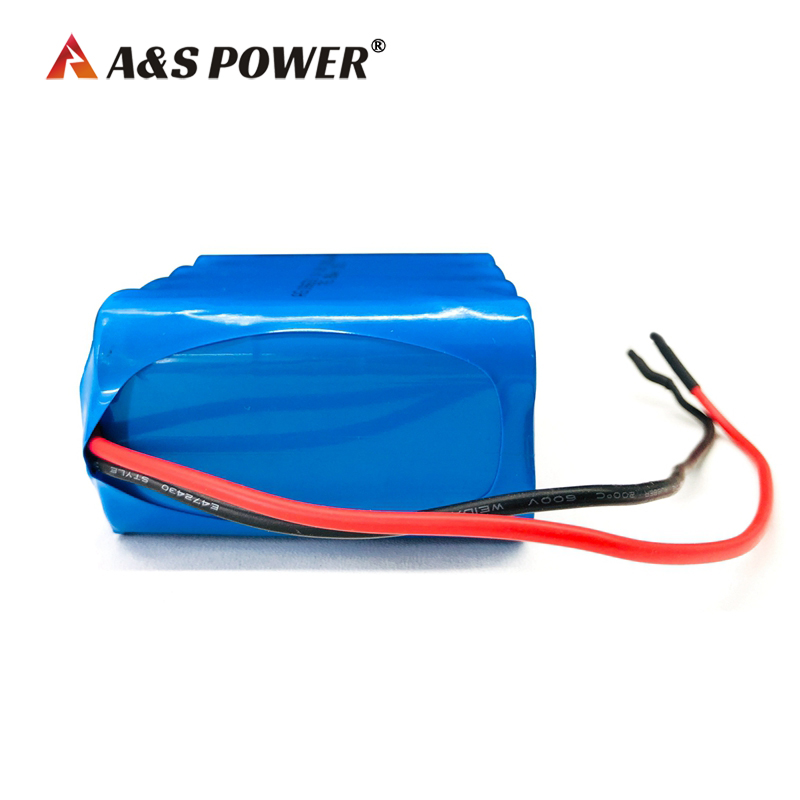

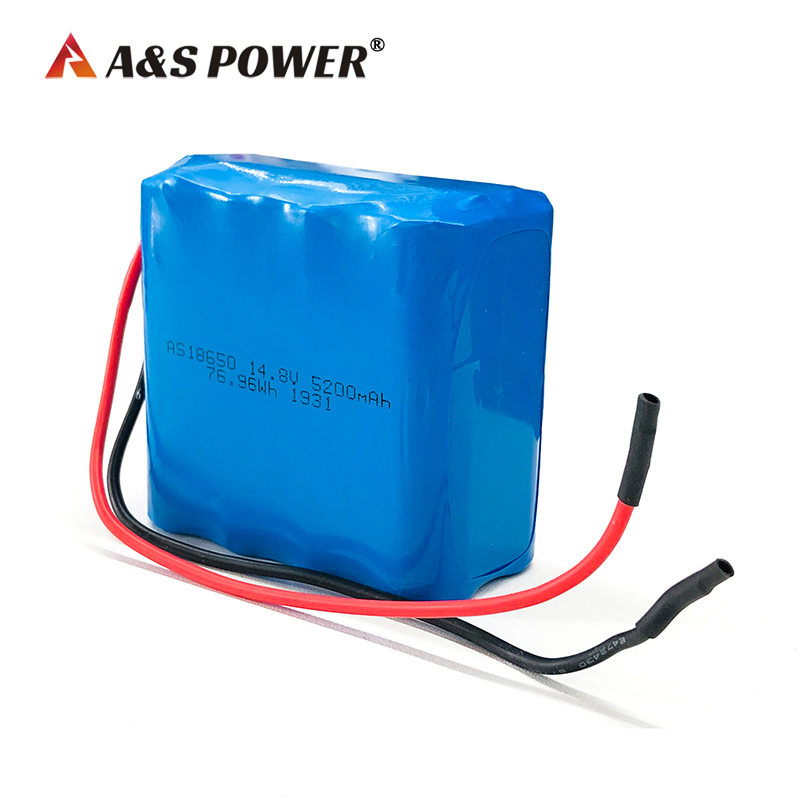

Product Photo

 A&S Power 18650 4S2P 14.8v 5200mah lithium ion batteryA&S Power 18650 4S2P 14.8v 5200mah lithium ion batteryA&S Power 18650 4S2P 14.8v 5200mah lithium ion battery



A&S Power 18650 lithium ion battery

A&S Power 18650 lithium ion battery


A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors.  We hope you find the one in our product list and suite you the best.  If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.

Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades.  We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production.  Our Customer Service can help for engineering suggestion to meet your specification.

A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.

Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely



Lithium Ion Battery Cell Models:



Model
Nominal voltage(V)Capacity (mAh)Max charge voltage(V)Cut-off discharge voltage(V)Max continuous discharge currnt(C) Diameter
 φ ( mm)
Height
 ( mm)
Weight
(approx)(g)
AS-186503.720004.252.753C186543.5
AS-186503.722004.252.753C186545
AS-186503.725004.252.753C186545.5
AS-186503.726004.252.753C186546
AS-186503.632004.252.52C186545.5
AS-186503.633504.252.51C186546
AS-217003.640004.252.55C217068.5
AS-217003.645004.252.53C217069
AS-217003.648004.252.51C217070
AS-217003.650004.252.51C217070



A&S Power Hot Selling 18650 Lithium Ion Battery Pack With Certifications:



Model
Nominal voltage(V)Capacity (mAh)Max charge voltage(V)Cut-off discharge voltage(V)Max continuous discharge currnt(C)Weight
(approx)(g)
Certification
AS-18650-2600-113.726004.231C49UL2054,IEC62133(CB),CE,KC,UN38.3
AS-18650-2000-217.420008.461C89 UL2054,IEC62133(CB),UN38.3
AS-18650-2600-217.426008.461C90IEC62133(CB),UN38.3
AS-18650-3350-217.433508.451C92IEC62133(CB)
AS-18650-2000-3211.1400012.690.5C265UL2054,UN38.3
AS-18650-2600-4114.8260016.8121C185IEC62133(CB)
AS-18650-2500-5218.5500021151C480IEC62133(CB),UN38.3
AS-18650-2000-6222.2400025.2182C530IEC62133(CB),UN38.3
AS-21700-5000-143.7200004.22.50.25300UN38.3
AS-21700-4800-123.796004.22.50.2150UN38.3
AS-21700-4800-7325.91500029.417.50.51500CE
AS-21700-50E-227.4100008.450.5300IEC62133(CB),UN38.3



A&S Power Company Profile

A&S Power Lithium Battery factory produced

A&S Power Lithium Battery fair photo

A&S Power Certification


Our Service


Your inquiry related to our product & price will be replied within 24hours.


• Well-trained & experienced staff are to answer all your inquiries professional in English of course.


• OEM is highly welcomed. We have strong R&D team here to help.


• Your business relationship with us will be confidential to any third party.


•1 year warranty of products and good after-sale service offered, please get back if you got question.


FAQ


 Q1: Can I have some samples for testing quality?

 A1:  Yes, you can buy some samples of any our products for testing quality and market.
 Q2: How should I pay?
 A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30%  T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
 Q3: What is your package looks like? Can I have the customized package?
 A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne  by the buyers, for more details, please contact us.
 Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place official order.
 Q5: Are you factory?

A5: yes,we are factory.
