3.2v 180ah lifepo4 battery for solar energy storage
prevnext

3.2v 180ah lifepo4 battery for solar energy storage

  • Art No :AS71182279
  • Material:Lifepo4 battery
  • Size :71*182*279mm
  • Weight:5.6kg
  • Description :

    1.Model: AS71182279

    2.Voltage: 3.2v

    3.Capacity: 180Ah

    4.Dimension:71*182*279mm

    5.Application: Solar energy storage

3.2v 180ah lifepo4 battery for solar energy storage

Product details


Specification:

3.2v 180ah lifepo4 battery for solar energy storage



Specification:



Item

Rating

Note

3.1    Capacity

Typical

180Ah

Discharge:0.2CmA

Minimum

175Ah

3.2    Nominal voltage

Average 3.2V



3.3    AC impedance resistance

1mΩ



3.4    Discharge cut-off voltage

2.5V



3.5    Charge current

54A

Standard Charge

3.6    Charge voltage

3.65V



3.7    Charge time

Approx5h

Charge: 0.3CmA

3.8   Max. charge current

180A



3.9   Standard discharge current

90A



3.10  Max continuous discharge current

180A



3.11  Max peak discharge current

540A

5s

3.11   Weight

Approx 5.6Kg



3.12  Operating

temperature

Charge

0~+45



Discharge

-20~60



3.13  Storage

      temperature

less than 1 month

-20~45

Recommended storage

temperature: 20,at the

shipment state

less than 6 months

-20~25




A&S Power Lithium Battery Prismatic Cell Type


Our advantage :


1.High Energy Density,High Output Voltage,Excellent Security.

2. Long Cycle Life: More than 500 repeated charge/discharge cycles.
3. Fast Charge Capacity: Can be fully charged in 2 to 3 hours with a rated voltage of 4.2 per cell

4.Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload;

5.Factory mastered technology and competitive price;

6.Injection Technology to make battery more stable;

7.With short-circuit production function, safe and reliable;

8. Environmental-friendly: No Pb, Cd added



Product Photo

A&S Power 3.2v 180ah lifepo4 battery



 A&S Power 3.2v 180ah lifepo4 battery package

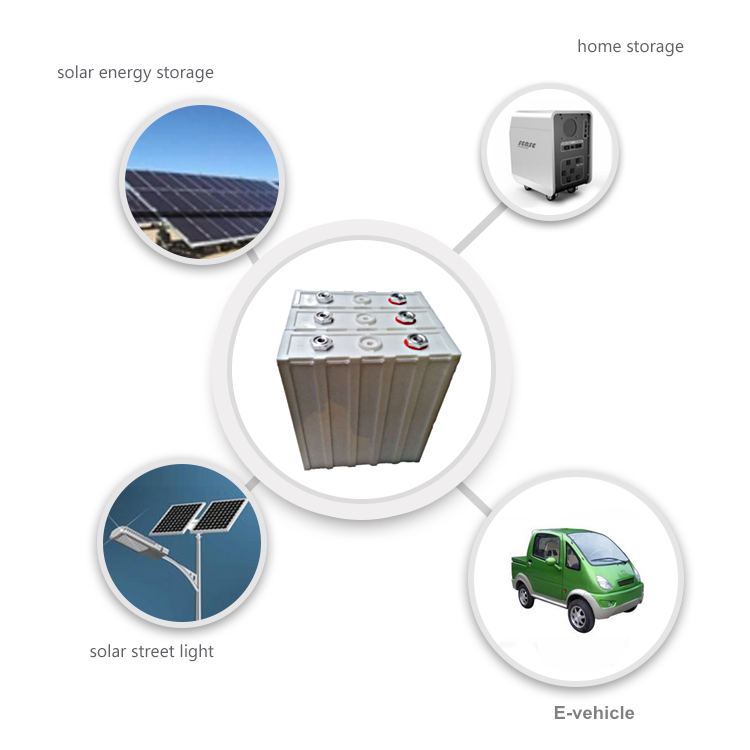

Application

 A&S Power Lithium Battery Application





Shenzhen A&S Power Technology Co.,Ltd, is one of outstanding rechargeable battery manufacturers in Shenzhen China. Which specialized in life Po4 battery ,lithium ion battery, lithium polymer battery for over 10 years.We strictly implement the international management standards and have established a complete quality assurance system.Our products sell well  all over the world such as  America, Canada, Europe, Africa, middle-east and South Asia.we sincerely hope to create prosperous business hand in hand with global customers.

A&S Power Company Profile

A&S Power Lithium Battery factory produced

A&S Power Lithium Battery fair photo

A&S Power Certification






A&S Power 32700 LiFePO4 Battery


A&S Power 12v LiFePO4 Battery


A&S Power 18650 Lithium Ion Battery


A&S Power LiPo Battery


A&S Power High-Tech Enterprises
