IFR26650 8s2p 24v 6Ah lifepo4 battery pack for backup storage
- Art No :AS-IFR266508s2p
- Material:Lithium lron Phosphate Battery
- Size :69*62*215mm
- Weight:1.4kg
- Description :IFR26650 8s2p 24v 6Ah lifepo4 battery pack for backup storage
Specification:
IFR26650 12.8v 3Ah lifepo4 battery pack for led light
Specification:
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
6Ah |
Discharge:0.2CmA |
|
|
Minimum |
5.7Ah |
|||
|
3.2 Nominal voltage |
Average 25.6V |
|
||
|
3.3 AC impedance resistance |
≤280mΩ |
|
||
|
3.4 Discharge cut-off voltage |
20.0V |
|
||
|
3.5 Charge current |
1.2A |
Standard Charge |
||
|
3.6 Charge voltage |
29.2V |
|
||
|
3.7 Charge time |
Approx 6h |
Charge: 0.2CmA |
||
|
3.8 Max. charge current |
6.0A |
|
||
|
3.9 Standard discharge current |
3.0A |
|
||
|
3.10 Max continuous discharge current |
6.0A |
|
||
|
3.11 Max peak discharge current |
12.0A |
|
||
|
3.11 Weight |
Approx 1.4kg |
|
||
|
3.12 Operating temperature |
Charge |
0~+45℃ |
|
|
|
Discharge |
-20~60℃ |
|
||
|
3.13 Storage temperature |
less than 1 month |
-20~45℃ |
Recommended storage temperature: 20℃,at the shipment state |
|
|
less than 6 months |
-20~25℃ |
|||

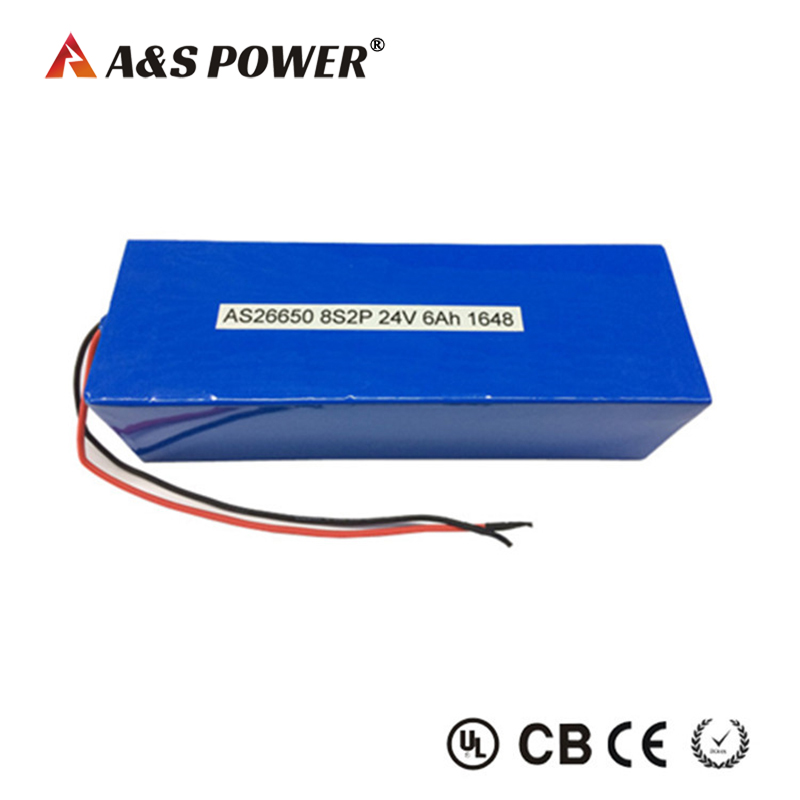

Product Photo
• High Performance —High theoretical capacity of 170mah/g and high practical capacity as high as 165mah/g
• Long Cycle Life: up to 2000 cycle life (8x of Lead Acid and 3-4x of Li-ion)
•
Extremely Safe/Stable Chemistry: no explosion & will not catch fire
under collision over charged or short circuit; hi thermal stability of
phases up to 500C
• Long Service Life: Around 5~6 years
•
Wide working temperature range: From -4 F to 150 F (-20 C–+70C) •
Flexible & Small Form Factor: 1/3 weight of lead acid and 64% of
NiMH
• High Rate (Power) Capability • Environmentally Friendly Non-toxic, non-contaminating and No rare metal
