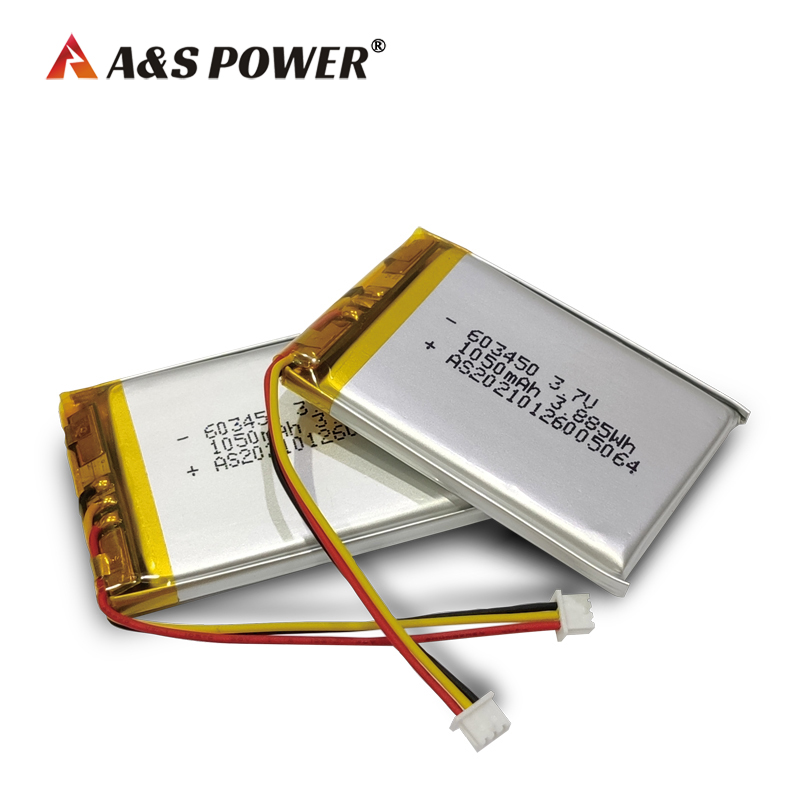

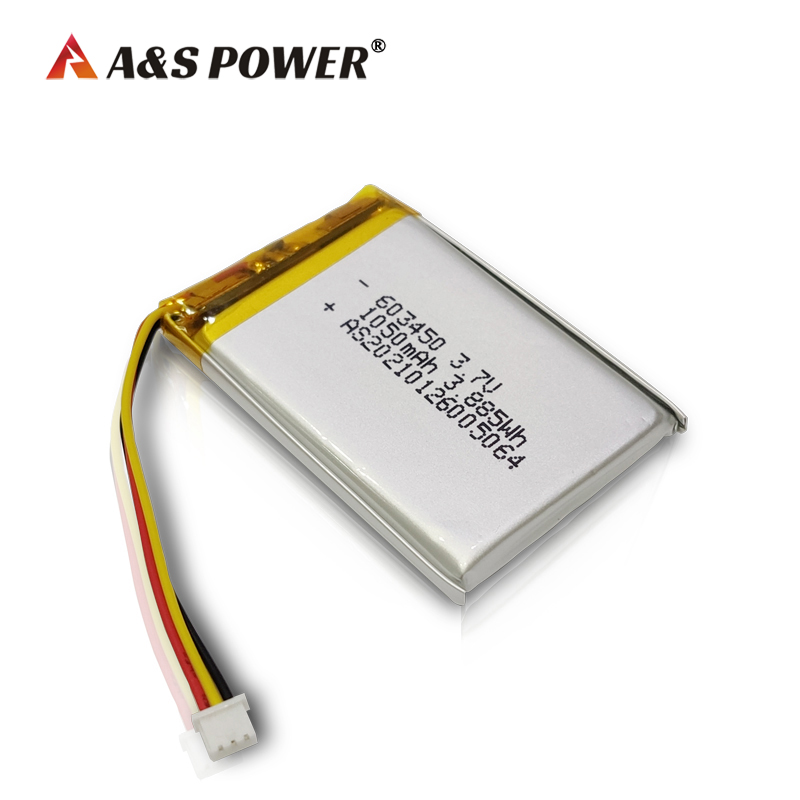

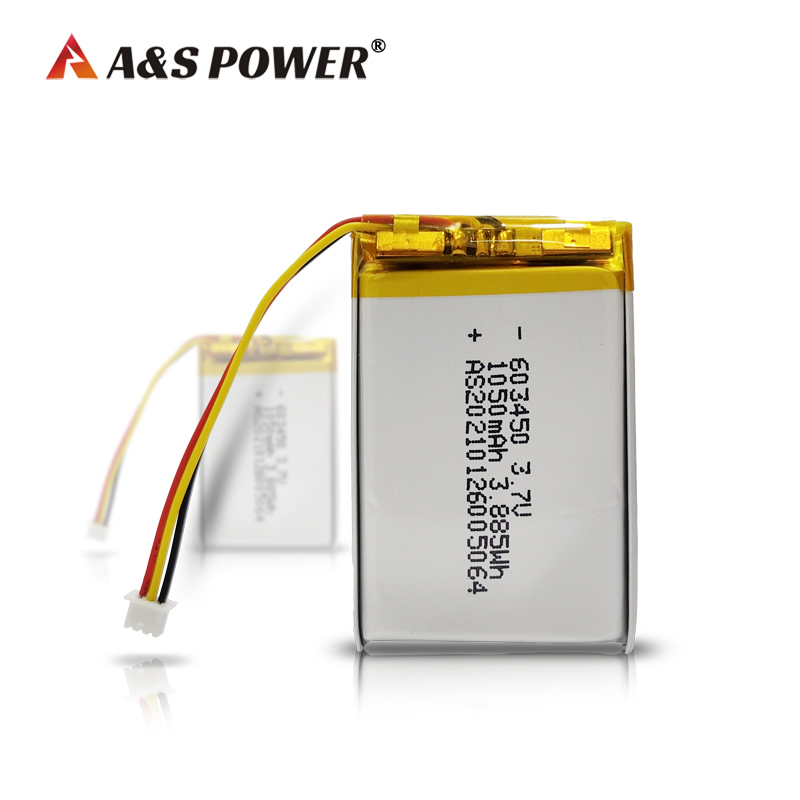

UL 603450 3.7v 1050mah lithium polymer battery cells for led light
- Art No :CPL603450
- Material:Li-polymer battery
- Size :6.2*35*52.5mm
- Weight:20.5g
- Description :Shenzhen A&S Power Technology Co.,Ltd, a OEM rechargeable battery manufacturer in China over 10 years. Specialized in Lithium polymer battery, LiFePO4 battery and Li-ion Battery.
Specification:
UL 603450 3.7v 1050mah lithium polymer battery cells for led light
Specification
|
Item |
Rating |
Note |
||
|
3.1 Capacity |
Typical |
1000mAh |
Discharge:0.2CmA cut off Voltage:3V for cell |
|
|
Minimum |
980mAh |
|||
|
3.2 Nominal Voltage |
Average 3.7V |
Discharge:0.2CmA cut off Voltage:3V for cell |
||
|
3.3 AC Impedance Resistance |
≤155mΩ |
|
||
|
3.4 Discharge Cut-off Voltage |
3.00V |
|
||
|
3.5 Charge Current |
200mA |
Standard Charge |
||
|
3.6 Charge Voltage |
4.2V |
|
||
|
3.7 Max. Charge Voltage |
4.23V |
|
||
|
3.8 Storage humidity |
< 75%RH |
Hygrometer |
||
|
3.9 Fast Charge current |
1000mA |
1.0CmA |
||
|
3.10 Fast Discharge Current |
1000mA |
1.0CmA |
||
|
3.11 Weight |
Approx 20.5g |
|
||
|
3.12 Operating Temperature |
Charge |
0~+45℃ |
Can be operated at max Altitude 3000m and 8%~90% humidity. |
|
|
Discharge |
-20~+60℃ |
Get more than 50% discharge capacity (typical) in -15°C or +55°C. |
||
|
3.13 Storage Temperature |
Less than 1 month |
-20~+45℃ |
Recommended storage temp: 20℃,at the shipment state. |
|
|
Less than 3 months |
-20~+35℃ |
|||
|
Can be stored at -25 ℃ or +70℃ in 48hrs. |
||||
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely
A&S Power Lithium Polymer Battery Model List With Certifications:
Model | Nominal voltage(V) | Capacity (mAh) | Thickness (mm) | Width (mm) | Length (mm) | Certification |
| AS10100 | 3.7 | 58 | Diameter: 10 | 10 | CQC | |
| AS08310 | 3.7 | 130 | Diameter: 8.0 | 31 | IEC62133, UN38.3 | |
| AS17450 | 3.7 | 1100 | Diameter: 17 | 45 | IEC62133(CB), UN38.3 | |
| AS10500 | 3.7 | 390 | Diameter: 10 | 50 | IEC62133(CB), UN38.3 | |
| AS102040 | 3.7 | 700 | 10 | 20 | 40 | UL1642,CE,UN38.3 |
| AS102231 | 3.7 | 600 | 10 | 22 | 31 | UL1642 |
| AS103035 | 3.7 | 1000 | 10 | 30 | 35 | UL1642,CE |
| AS103450 | 3.7 | 2000 | 10 | 34 | 50 | UL1642,CE,UN38.3 |
| AS104049 | 3.7 | 2600 | 10 | 40 | 49 | UL1642,IEC62133(CB),CE,UN38.3 |
| AS104065 | 3.7 | 3200 | 10 | 40 | 65 | UL1642,IEC62133(CB),CE,BIS,UN38.3 |
| AS105073 | 3.7 | 5000 | 10 | 50 | 73 | UL1642,CE |
| AS112560 | 3.7 | 1800 | 11 | 25 | 60 | UL1642 |
| AS125099 | 3.7 | 3750 | 12 | 50 | 99 | UL1642 |
| AS126363 | 3.7 | 5400 | 12 | 63 | 63 | UL1642,UN38.3 |
| AS253550 | 3.7 | 360 | 2.5 | 35 | 50 | UL1642,IEC62133(CB) |
| AS271420 | 3.7 | 20 | 2.7 | 14 | UL1642 | |
| AS301320 | 3.7 | 55 | 3.0 | 13 | 20 | UL1642 |
| AS302025 | 3.7 | 100 | 3.0 | 20 | 25 | UL1642 |
| AS302323 | 3.7 | 110 | 3.0 | 23 | 23 | UL1642,UN38.3 |
| AS302530 | 3.7 | 180 | 3.0 | 25 | 30 | KC |
| AS303080 | 3.7 | 850 | 3.0 | 30 | 80 | UL1642,IEC62133,CE,UN38.3 |
| AS3062173 | 3.7 | 3500 | 3.0 | 62 | 173 | UL1642 |
| AS321129 | 3.7 | 70 | 3.2 | 11 | 29 | UL1642 |
| AS351120 | 3.7 | 40 | 3.5 | 11 | 20 | UL1642,CE |
| AS351121 | 3.7 | 45 | 3.5 | 11 | 21 | UL1642 |
| AS352025 | 3.7 | 110 | 3.5 | 20 | 25 | UL1642,CE |
| AS352730 | 3.7 | 220 | 3.5 | 27 | 30 | UL1642,CE |
| AS356585 | 3.7 | 2000 | 3.5 | 65 | 85 | UL1642 |
| AS357090 | 3.7 | 2800 | 3.5 | 70 | 90 | UL1642,CE |
| AS371042 | 3.7 | 105 | 3.7 | 10 | 42 | UL1642 |
| AS381018 | 3.7 | 40 | 3.8 | 10 | 18 | UL1642 |
| AS391520 | 3.7 | 90 | 3.9 | 15 | 20 | UL1642 |
| AS392265 | 3.7 | 510 | 3.9 | 22 | 65 | UL1642 |
| AS400830 | 3.7 | 60 | 4.0 | 8 | 30 | UL1642,CE |
| AS401020 | 3.7 | 55 | 4.0 | 10 | 20 | UL1642,CE |
| AS401030 | 3.7 | 80 | 4.0 | 10 | 30 | UL1642,CE,UN38.3 |
| AS401119 | 3.7 | 50 | 4.0 | 11 | 19 | UL1642 |
| AS401120 | 3.7 | 60 | 4.0 | 11 | 20 | UL1642 |
| AS401230 | 3.7 | 120 | 4.0 | 12 | 30 | UL1642,IEC62133(CB),KC,UN38.3,CQC |
| AS401235 | 3.7 | 130 | 4.0 | 12 | 35 | UN38.3 |
| AS401245 | 3.7 | 190 | 4.0 | 12 | 45 | CE |
| AS401824 | 3.7 | 100 | 4.0 | 18 | 24 | KC |
| AS402525 | 3.7 | 200 | 4.0 | 25 | 25 | CE,KC,UN38.3 |
| AS403040 | 3.7 | 430 | 4.0 | 30 | 40 | UL1642,CE |
| AS405070 | 3.7 | 1700 | 4.0 | 50 | 70 | UL1642,CE,UN38.3 |
| AS405080 | 3.7 | 1750 | 4.0 | 50 | 80 | UN38.3 |
| AS406868 | 3.7 | 2200 | 4.0 | 68 | 68 | UL1642,CE |
| AS423040 | 3.7 | 530 | 4.2 | 30 | 40 | UL1642,UL2054,CE,KC,UN38.3 |
| AS442030 | 3.7 | 210 | 4.4 | 20 | 30 | UL1642,CE |
| AS443493 | 3.7 | 1500 | 4.4 | 34 | 93 | UL1642 |
| AS451268 | 3.7 | 280 | 4.5 | 12 | 68 | UL1642 |
| AS452428 | 3.7 | 250 | 4.5 | 24 | 28 | CE |
| AS455060 | 3.7 | 1400 | 4.5 | 50 | 60 | UL1642,CE |
| AS461730 | 3.7 | 200 | 4.6 | 17 | 30 | UL1642,CE,KC,UN38.3 |
| AS481221 | 3.7 | 70 | 4.8 | 12 | 21 | UL1642,CE |
| AS483450 | 3.7 | 850 | 4.8 | 34 | 50 | UL1642,CE,UN38.3 |
| AS495892 | 3.7 | 3000 | 4.9 | 58 | 92 | UL1642 |
| AS501235 | 3.7 | 160 | 5.0 | 12 | 35 | KC,UN38.3 |
| AS502025 | 3.7 | 180 | 5.0 | 20 | 25 | UL1642,CE,KC |
| AS502030 | 3.7 | 240 | 5.0 | 20 | 30 | UL1642,CE,KC,UN38.3 |
| AS502248 | 3.7 | 500 | 5.0 | 22 | 48 | UL1642,IEC62133(CB),CE,UN38.3 |
| AS503030 | 3.7 | 430 | 5.0 | 30 | 30 | UL1642,CE,KC |
| AS503034 | 3.7 | 460 | 5.0 | 30 | 34 | UL1642,CE |
| AS503035 | 3.7 | 500 | 5.0 | 30 | 35 | UL1642,CE |
| AS504552 | 3.7 | 1200 | 5.0 | 45 | 52 | UL1642,CE |
| AS505055 | 3.8 | 1800 | 5.0 | 50 | 55 | UL1642,UL2054,IEC62133(CB),CE,UN38.3 |
| AS505771 | 3.7 | 2200 | 5.0 | 57 | 71 | UL1642,CE |
| AS506077 | 3.7 | 3400 | 5.0 | 60 | 77 | UL1642,IEC62133(CB),CE,UN38.3 |
| AS523450 | 3.7 | 1000 | 5.2 | 35 | 50 | UL1642,CE |
| AS535058 | 3.7 | 1600 | 5.3 | 50 | 58 | UL1642,CE |
| AS542435 | 3.7 | 500 | 5.4 | 24 | 35 | UN38.3 |
| AS552035 | 3.7 | 350 | 5.5 | 20 | 35 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS |
| AS552540 | 3.7 | 540 | 5.5 | 25 | 40 | UL1642,CE |
| AS553345 | 3.7 | 720 | 5.5 | 33 | 45 | UL1642,CE |
| AS553436 | 3.7 | 740 | 5.5 | 34 | 36 | UL1642,CE |
| AS553444 | 3.7 | 650/950 | 5.5 | 34 | 44 | UL1642,CE,KC |
| AS553640 | 3.7 | 850 | 5.5 | 36 | 40 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,CQC |
| AS553759 | 3.7 | 1350 | 5.5 | 37 | 59 | UL1642,CE |
| AS556585 | 3.7 | 3600 | 5.5 | 65 | 85 | UL1642 |
| AS562438 | 3.7 | 400 | 5.6 | 24 | 38 | UL1642,CE |
| AS583573 | 3.7 | 1500 | 5.8 | 35 | 73 | UL1642 |
| AS584070 | 3.7 | 2000 | 5.8 | 40 | 70 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,PSE |
| AS593545 | 3.7 | 1050 | 5.9 | 35 | 45 | CE |
| AS601362 | 3.7 | 500 | 6.0 | 13 | 62 | UL1642,CE |
| AS601530 | 3.7 | 250 | 6.0 | 15 | 30 | CE |
| AS601470 | 3.7 | 600 | 6.0 | 14 | 70 | CE |
| AS602025 | 3.7 | 200 | 6.0 | 20 | 25 | CE |
| AS602030 | 3.7 | 300 | 6.0 | 20 | 30 | CE,KC |
| AS602240 | 3.7 | 500 | 6.0 | 22 | 40 | UL1642,CE,KC |
| AS602663 | 3.7 | 1000 | 6.0 | 26 | 63 | UL1642,IEC62133,CE,KC,UN38.3 |
| AS603030 | 3.7 | 520 | 6.0 | 30 | 30 | UL1642,IEC62133(CB),CE,KC,UN38.3,WERCS |
| AS603040 | 3.7 | 750 | 6.0 | 30 | 40 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS |
| AS603048 | 3.7 | 900 | 6.0 | 30 | 48 | UL1642,CE,KC,UN38.3 |
| AS603245 | 3.7 | 720 | 6.0 | 32 | 45 | UL1642 |
| AS603450 | 3.7 | 1050 | 6.0 | 34 | 50 | UL1642,IEC62133(CB),CE,KC,UN38.3 |
| AS603465 | 3.7 | 1350 | 6.0 | 34 | 65 | UL1642,CE |
| AS603952 | 3.7 | 1400 | 6.0 | 39 | 52 | CE |
| AS604050 | 3.7 | 1100 | 6.0 | 40 | 50 | UL1642,IEC62133(CB),UN38.3 |
| AS606060 | 3.7 | 2500/3000 | 6.0 | 60 | 60 | UL1642,CE |
| AS6060115 | 3.7 | 5000 | 6.0 | 60 | 115 | UL1642,CE |
| AS623441 | 3.7 | 1000 | 6.2 | 34 | 41 | CE |
| AS624046 | 3.7 | 1200 | 6.2 | 40 | 46 | UL1642,IEC62133(CB),CE,UN38.3 |
| AS6482148 | 3.7 | 3750 | 6.4 | 82 | 148 | UL1642 |
| AS652030 | 3.7 | 350 | 6.5 | 20 | 30 | UL1642,CE,KC,UN38.3 |
| AS652631 | 3.7 | 520 | 6.5 | 26 | 31 | UL1642,CE |
| AS653136 | 3.7 | 800 | 6.5 | 31 | 36 | CE |
| AS682134 | 3.7 | 500 | 6.8 | 21 | 34 | UL1642 |
| AS701235 | 3.7 | 250 | 7.0 | 12 | 35 | CE |
| AS701729 | 3.7 | 300 | 7.0 | 17 | 29 | UL1642,BIS |
| AS701416 | 3.7 | 100 | 7.0 | 14 | 16 | UL1642,CE |
| AS701919 | 3.7 | 150 | 7.0 | 19 | 19 | UL1642,CE |
| AS702040 | 3.7 | 500 | 7.0 | 20 | 40 | UL1642,IEC62133(CB),CE,UN38.3,WERCS |
| AS703440 | 3.7 | 1000 | 7.0 | 34 | 40 | UL1642,UL2054,CE,KC,UN38.3 |
| AS704060 | 3.7 | 1800 | 7.0 | 40 | 60 | UL1642,CE |
| AS705088 | 3.7 | 3400 | 7.0 | 50 | 88 | UL1642 |
| AS723272 | 3.7 | 1700 | 7.2 | 32 | 72 | UL1642 |
| AS753048 | 3.7 | 1200 | 7.5 | 30 | 48 | UL1642,CE,KC |
| AS755070 | 3.7 | 3000 | 7.5 | 50 | 70 | UL1642,IEC62133(CB),CE, KC |
| AS802030 | 3.7 | 420 | 8.0 | 20 | 30 | UL1642,CE |
| AS803035 | 3.7 | 800 | 8.0 | 30 | 35 | UL1642,UL2054,CE,KC,UN38.3 |
| AS803040 | 3.7 | 900 | 8.0 | 30 | 40 | CE |
| AS803648 | 3.7 | 1200 | 8.0 | 36 | 48 | UL1642,CE |
| AS805052 | 3.7 | 2500 | 8.0 | 50 | 52 | UL1642 |
| AS8051116 | 3.7 | 6900 | 8.0 | 51 | 116 | UL1642,CE |
| AS853450 | 3.7 | 1500 | 8.5 | 34 | 50 | UL1642,CE,CB,KC,UN38.3 |
| AS872237 | 3.7 | 750 | 8.7 | 22 | 37 | UL1642 |
| AS904286 | 3.7 | 4000 | 9.0 | 42 | 86 | UL1642,CE |
| AS954674 | 3.7 | 4050 | 9.5 | 46 | 74 | UL1642 |
| AS962731 | 3.7 | 720 | 9.6 | 27 | 31 | UL1642 |
| AS853450-2P | 3.7 | 3000 | 17 | 35 | 53 | UL1642,UL2054,UN38.3 |
Q1: Can I have some samples for testing quality?
A1: Yes, you can buy some samples of any our products for testing quality and market.Q2: How should I pay?
A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.
Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you place official order.
Q5: Are you factory?
A5: yes,we are factory.
If you are interested in Lithium polymer battery, LiFePO4 battery and Li-ion Battery. , if you are looking for the lithium battery manufacturers, then please contact with us, we will answer for you patiently.
