Specification:

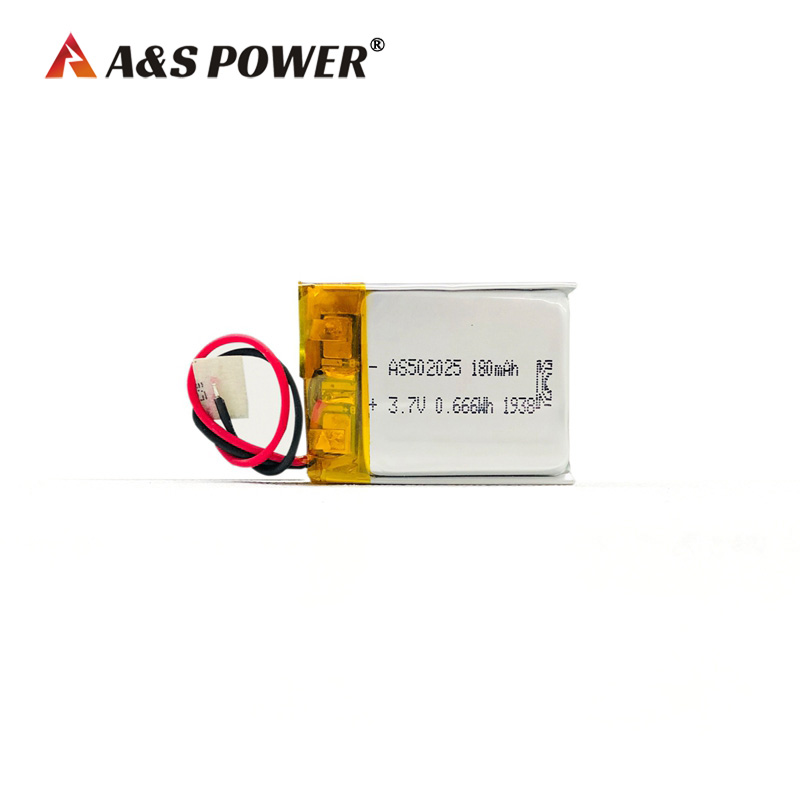

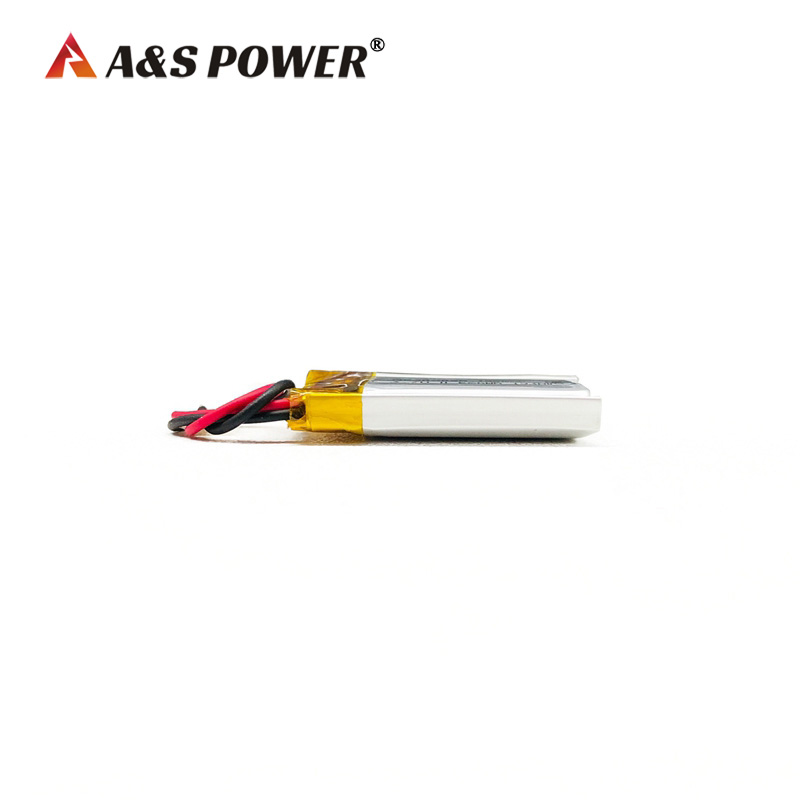

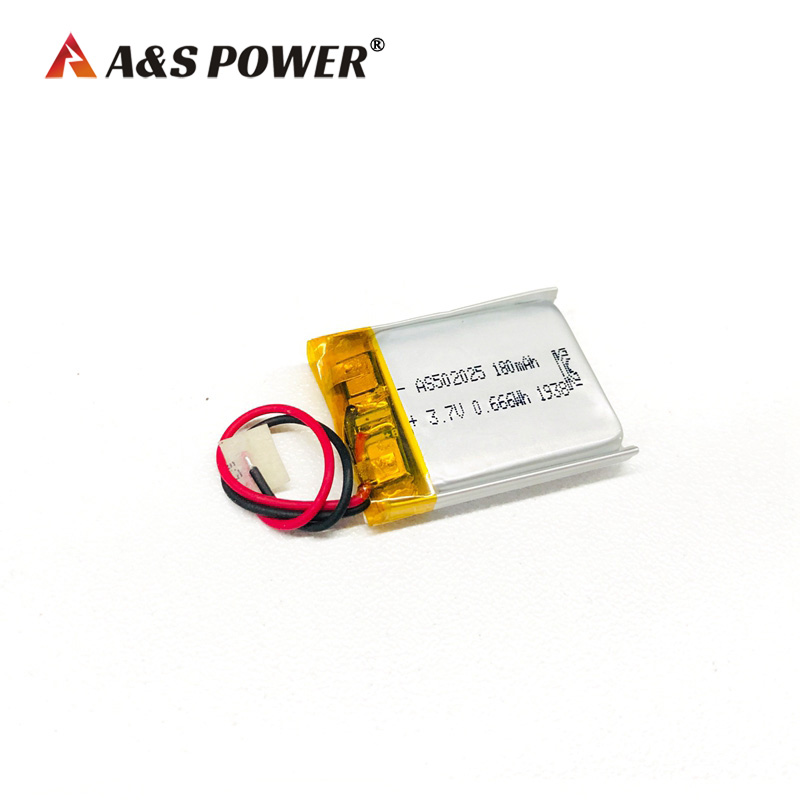

A&S Power UL KC 502025 3.7V 180mah lithium polymer battery
Product and Model Name
2.1 Product: Lithium Polymer Battery
2.2 Model Name:AS502025
3 Ratings of battery pack
Item |
Rating |
Note |
||
3.1 Capacity |
Typical |
180mAh |
Discharge:0.2CmA cut off Voltage:3V for cell |
|
Minimum |
170mAh |
|||
3.2 Nominal Voltage |
Average 3.7V |
Discharge:0.2CmA cut off Voltage:3V for cell |
||
3.3 AC Impedance Resistance |
≤260mΩ |
|
||
3.4 Discharge Cut-off Voltage |
3.0V |
|
||
3.5 Charge Current |
36mA |
Standard Charge |
||
3.6 Charge Voltage |
4.2V |
|
||
3.7 Max. Charge Voltage |
4.23V |
|
||
3.8 Storage humidity |
< 75%RH |
Hygrometer |
||
3.9 Fast Charge current |
180mA |
1.0CmA |
||
3.10 Fast Discharge Current |
180mA |
1.0CmA |
||
3.11 Weight |
Approx 3.9g |
|
||
3.12 Shipping Voltage |
>3.70V |
60 ~80% of full charged |
||
3.13 Operating Temperature |
Charge |
0~+45℃ |
|
|
Discharge |
-20~+60℃ |
|
||
3.14 Storage Temperature |
less than 1 month |
-10~+45℃ |
Recommended storage temperature: 20℃,at the shipment state |
|
less than 3 months |
-10~+35℃ |
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely
A&S Power Lithium Polymer Battery Model List With Certifications:
Model | Nominal voltage(V) | Capacity (mAh) | Thickness (mm) | Width (mm) | Length (mm) | Certification |
AS10100 | 3.7 | 58 | Diameter: 10 | 10 | CQC | |
AS08310 | 3.7 | 130 | Diameter: 8.0 | 31 | IEC62133, UN38.3 | |
AS17450 | 3.7 | 1100 | Diameter: 17 | 45 | IEC62133(CB), UN38.3 | |
AS10500 | 3.7 | 390 | Diameter: 10 | 50 | IEC62133(CB), UN38.3 | |
AS102040 | 3.7 | 700 | 10 | 20 | 40 | UL1642,CE,UN38.3 |
AS102231 | 3.7 | 600 | 10 | 22 | 31 | UL1642 |
AS103035 | 3.7 | 1000 | 10 | 30 | 35 | UL1642,CE |
AS103450 | 3.7 | 2000 | 10 | 34 | 50 | UL1642,CE,UN38.3 |
AS104049 | 3.7 | 2600 | 10 | 40 | 49 | UL1642,IEC62133(CB),CE,UN38.3 |
AS104065 | 3.7 | 3200 | 10 | 40 | 65 | UL1642,IEC62133(CB),CE,BIS,UN38.3 |
AS105073 | 3.7 | 5000 | 10 | 50 | 73 | UL1642,CE |
AS112560 | 3.7 | 1800 | 11 | 25 | 60 | UL1642 |
AS125099 | 3.7 | 3750 | 12 | 50 | 99 | UL1642 |
AS126363 | 3.7 | 5400 | 12 | 63 | 63 | UL1642,UN38.3 |
AS253550 | 3.7 | 360 | 2.5 | 35 | 50 | UL1642,IEC62133(CB) |
AS271420 | 3.7 | 20 | 2.7 | 14 | UL1642 | |
AS301320 | 3.7 | 55 | 3.0 | 13 | 20 | UL1642 |
AS302025 | 3.7 | 100 | 3.0 | 20 | 25 | UL1642 |
AS302323 | 3.7 | 110 | 3.0 | 23 | 23 | UL1642,UN38.3 |
AS302530 | 3.7 | 180 | 3.0 | 25 | 30 | KC |
AS303080 | 3.7 | 850 | 3.0 | 30 | 80 | UL1642,IEC62133,CE,UN38.3 |
AS3062173 | 3.7 | 3500 | 3.0 | 62 | 173 | UL1642 |
AS321129 | 3.7 | 70 | 3.2 | 11 | 29 | UL1642 |
AS351120 | 3.7 | 40 | 3.5 | 11 | 20 | UL1642,CE |
AS351121 | 3.7 | 45 | 3.5 | 11 | 21 | UL1642 |
AS352025 | 3.7 | 110 | 3.5 | 20 | 25 | UL1642,CE |
AS352730 | 3.7 | 220 | 3.5 | 27 | 30 | UL1642,CE |
AS356585 | 3.7 | 2000 | 3.5 | 65 | 85 | UL1642 |
AS357090 | 3.7 | 2800 | 3.5 | 70 | 90 | UL1642,CE |
AS371042 | 3.7 | 105 | 3.7 | 10 | 42 | UL1642 |
AS381018 | 3.7 | 40 | 3.8 | 10 | 18 | UL1642 |
AS391520 | 3.7 | 90 | 3.9 | 15 | 20 | UL1642 |
AS392265 | 3.7 | 510 | 3.9 | 22 | 65 | UL1642 |
AS400830 | 3.7 | 60 | 4.0 | 8 | 30 | UL1642,CE |
AS401020 | 3.7 | 55 | 4.0 | 10 | 20 | UL1642,CE |
AS401030 | 3.7 | 80 | 4.0 | 10 | 30 | UL1642,CE,UN38.3 |
AS401119 | 3.7 | 50 | 4.0 | 11 | 19 | UL1642 |
AS401120 | 3.7 | 60 | 4.0 | 11 | 20 | UL1642 |
AS401230 | 3.7 | 120 | 4.0 | 12 | 30 | UL1642,IEC62133(CB),KC,UN38.3,CQC |
AS401235 | 3.7 | 130 | 4.0 | 12 | 35 | UN38.3 |
AS401245 | 3.7 | 190 | 4.0 | 12 | 45 | CE |
AS401824 | 3.7 | 100 | 4.0 | 18 | 24 | KC |
AS402525 | 3.7 | 200 | 4.0 | 25 | 25 | CE,KC,UN38.3 |
AS403040 | 3.7 | 430 | 4.0 | 30 | 40 | UL1642,CE |
AS405070 | 3.7 | 1700 | 4.0 | 50 | 70 | UL1642,CE,UN38.3 |
AS405080 | 3.7 | 1750 | 4.0 | 50 | 80 | UN38.3 |
AS406868 | 3.7 | 2200 | 4.0 | 68 | 68 | UL1642,CE |
AS423040 | 3.7 | 530 | 4.2 | 30 | 40 | UL1642,UL2054,CE,KC,UN38.3 |
AS442030 | 3.7 | 210 | 4.4 | 20 | 30 | UL1642,CE |
AS443493 | 3.7 | 1500 | 4.4 | 34 | 93 | UL1642 |
AS451268 | 3.7 | 280 | 4.5 | 12 | 68 | UL1642 |
AS452428 | 3.7 | 250 | 4.5 | 24 | 28 | CE |
AS455060 | 3.7 | 1400 | 4.5 | 50 | 60 | UL1642,CE |
AS461730 | 3.7 | 200 | 4.6 | 17 | 30 | UL1642,CE,KC,UN38.3 |
AS481221 | 3.7 | 70 | 4.8 | 12 | 21 | UL1642,CE |
AS483450 | 3.7 | 850 | 4.8 | 34 | 50 | UL1642,CE,UN38.3 |
AS495892 | 3.7 | 3000 | 4.9 | 58 | 92 | UL1642 |
AS501235 | 3.7 | 160 | 5.0 | 12 | 35 | KC,UN38.3 |
AS502025 | 3.7 | 180 | 5.0 | 20 | 25 | UL1642,CE,KC |
AS502030 | 3.7 | 240 | 5.0 | 20 | 30 | UL1642,CE,KC,UN38.3 |
AS502248 | 3.7 | 500 | 5.0 | 22 | 48 | UL1642,IEC62133(CB),CE,UN38.3 |
AS503030 | 3.7 | 430 | 5.0 | 30 | 30 | UL1642,CE,KC |
AS503034 | 3.7 | 460 | 5.0 | 30 | 34 | UL1642,CE |
AS503035 | 3.7 | 500 | 5.0 | 30 | 35 | UL1642,CE |
AS504552 | 3.7 | 1200 | 5.0 | 45 | 52 | UL1642,CE |
AS505055 | 3.8 | 1800 | 5.0 | 50 | 55 | UL1642,UL2054,IEC62133(CB),CE,UN38.3 |
AS505771 | 3.7 | 2200 | 5.0 | 57 | 71 | UL1642,CE |
AS506077 | 3.7 | 3400 | 5.0 | 60 | 77 | UL1642,IEC62133(CB),CE,UN38.3 |
AS523450 | 3.7 | 1000 | 5.2 | 35 | 50 | UL1642,CE |
AS535058 | 3.7 | 1600 | 5.3 | 50 | 58 | UL1642,CE |
AS542435 | 3.7 | 500 | 5.4 | 24 | 35 | UN38.3 |
AS552035 | 3.7 | 350 | 5.5 | 20 | 35 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS |
AS552540 | 3.7 | 540 | 5.5 | 25 | 40 | UL1642,CE |
AS553345 | 3.7 | 720 | 5.5 | 33 | 45 | UL1642,CE |
AS553436 | 3.7 | 740 | 5.5 | 34 | 36 | UL1642,CE |
AS553444 | 3.7 | 650/950 | 5.5 | 34 | 44 | UL1642,CE,KC |
AS553640 | 3.7 | 850 | 5.5 | 36 | 40 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,CQC |
AS553759 | 3.7 | 1350 | 5.5 | 37 | 59 | UL1642,CE |
AS556585 | 3.7 | 3600 | 5.5 | 65 | 85 | UL1642 |
AS562438 | 3.7 | 400 | 5.6 | 24 | 38 | UL1642,CE |
AS583573 | 3.7 | 1500 | 5.8 | 35 | 73 | UL1642 |
AS584070 | 3.7 | 2000 | 5.8 | 40 | 70 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,PSE |
AS593545 | 3.7 | 1050 | 5.9 | 35 | 45 | CE |
AS601362 | 3.7 | 500 | 6.0 | 13 | 62 | UL1642,CE |
AS601530 | 3.7 | 250 | 6.0 | 15 | 30 | CE |
AS601470 | 3.7 | 600 | 6.0 | 14 | 70 | CE |
AS602025 | 3.7 | 200 | 6.0 | 20 | 25 | CE |
AS602030 | 3.7 | 300 | 6.0 | 20 | 30 | CE,KC |
AS602240 | 3.7 | 500 | 6.0 | 22 | 40 | UL1642,CE,KC |
AS602663 | 3.7 | 1000 | 6.0 | 26 | 63 | UL1642,IEC62133,CE,KC,UN38.3 |
AS603030 | 3.7 | 520 | 6.0 | 30 | 30 | UL1642,IEC62133(CB),CE,KC,UN38.3,WERCS |
AS603040 | 3.7 | 750 | 6.0 | 30 | 40 | UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS |
AS603048 | 3.7 | 900 | 6.0 | 30 | 48 | UL1642,CE,KC,UN38.3 |
AS603245 | 3.7 | 720 | 6.0 | 32 | 45 | UL1642 |
AS603450 | 3.7 | 1050 | 6.0 | 34 | 50 | UL1642,IEC62133(CB),CE,KC,UN38.3 |
AS603465 | 3.7 | 1350 | 6.0 | 34 | 65 | UL1642,CE |
AS603952 | 3.7 | 1400 | 6.0 | 39 | 52 | CE |
AS604050 | 3.7 | 1100 | 6.0 | 40 | 50 | UL1642,IEC62133(CB),UN38.3 |
AS606060 | 3.7 | 2500/3000 | 6.0 | 60 | 60 | UL1642,CE |
AS6060115 | 3.7 | 5000 | 6.0 | 60 | 115 | UL1642,CE |
AS623441 | 3.7 | 1000 | 6.2 | 34 | 41 | CE |
AS624046 | 3.7 | 1200 | 6.2 | 40 | 46 | UL1642,IEC62133(CB),CE,UN38.3 |
AS6482148 | 3.7 | 3750 | 6.4 | 82 | 148 | UL1642 |
AS652030 | 3.7 | 350 | 6.5 | 20 | 30 | UL1642,CE,KC,UN38.3 |
AS652631 | 3.7 | 520 | 6.5 | 26 | 31 | UL1642,CE |
AS653136 | 3.7 | 800 | 6.5 | 31 | 36 | CE |
AS682134 | 3.7 | 500 | 6.8 | 21 | 34 | UL1642 |
AS701235 | 3.7 | 250 | 7.0 | 12 | 35 | CE |
AS701729 | 3.7 | 300 | 7.0 | 17 | 29 | UL1642,BIS |
AS701416 | 3.7 | 100 | 7.0 | 14 | 16 | UL1642,CE |
AS701919 | 3.7 | 150 | 7.0 | 19 | 19 | UL1642,CE |
AS702040 | 3.7 | 500 | 7.0 | 20 | 40 | UL1642,IEC62133(CB),CE,UN38.3,WERCS |
AS703440 | 3.7 | 1000 | 7.0 | 34 | 40 | UL1642,UL2054,CE,KC,UN38.3 |
AS704060 | 3.7 | 1800 | 7.0 | 40 | 60 | UL1642,CE |
AS705088 | 3.7 | 3400 | 7.0 | 50 | 88 | UL1642 |
AS723272 | 3.7 | 1700 | 7.2 | 32 | 72 | UL1642 |
AS753048 | 3.7 | 1200 | 7.5 | 30 | 48 | UL1642,CE,KC |
AS755070 | 3.7 | 3000 | 7.5 | 50 | 70 | UL1642,IEC62133(CB),CE, KC |
AS802030 | 3.7 | 420 | 8.0 | 20 | 30 | UL1642,CE |
AS803035 | 3.7 | 800 | 8.0 | 30 | 35 | UL1642,UL2054,CE,KC,UN38.3 |
AS803040 | 3.7 | 900 | 8.0 | 30 | 40 | CE |
AS803648 | 3.7 | 1200 | 8.0 | 36 | 48 | UL1642,CE |
AS805052 | 3.7 | 2500 | 8.0 | 50 | 52 | UL1642 |
AS8051116 | 3.7 | 6900 | 8.0 | 51 | 116 | UL1642,CE |
AS853450 | 3.7 | 1500 | 8.5 | 34 | 50 | UL1642,CE,CB,KC,UN38.3 |
AS872237 | 3.7 | 750 | 8.7 | 22 | 37 | UL1642 |
AS904286 | 3.7 | 4000 | 9.0 | 42 | 86 | UL1642,CE |
AS954674 | 3.7 | 4050 | 9.5 | 46 | 74 | UL1642 |
AS962731 | 3.7 | 720 | 9.6 | 27 | 31 | UL1642 |
AS853450-2P | 3.7 | 3000 | 17 | 35 | 53 | UL1642,UL2054,UN38.3 |
