UL KC 753048 3.7V 1200mah lithium polymer battery

Product and Model Name

2.1 Product： Lithium Polymer Battery

2.2 Model Name：AS753048

3  Ratings of battery pack

Item			Rating	Note
3.1    Capacity		Typical	1200mAh	Discharge:0.2CmA cut off Voltage:3V for cell
		Minimum	1100mAh
3.2    Nominal Voltage			Average  3.7V	Discharge:0.2CmA cut off Voltage:3V for cell
3.3    AC Impedance Resistance			≤190mΩ
3.4    Discharge Cut-off Voltage			3.0V
3.5    Charge Current			220mA	Standard Charge
3.6    Charge Voltage			4.2V
3.7    Max. Charge Voltage			4.23V
3.8   Storage humidity			< 75%RH	Hygrometer
3.9    Fast Charge current			1200mA	1.0CmA
3.10   Fast Discharge Current			1200mA	1.0CmA
3.11   Weight			Approx 22.5g
3.12   Shipping Voltage			>3.70V	60 ~80% of full charged
3.13  Operating Temperature	Charge		0~+45℃
	Discharge		-20~+60℃
3.14  Storage       Temperature	less than 1 month		-10~+45℃	Recommended storage temperature: 20℃,at the shipment state
	less than 3 months		-10~+35℃

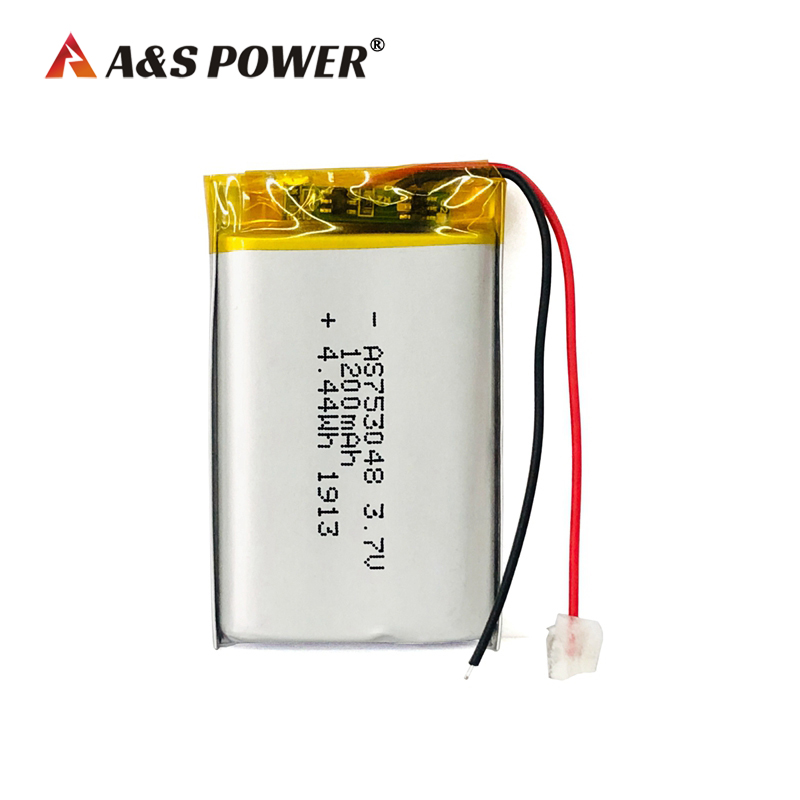

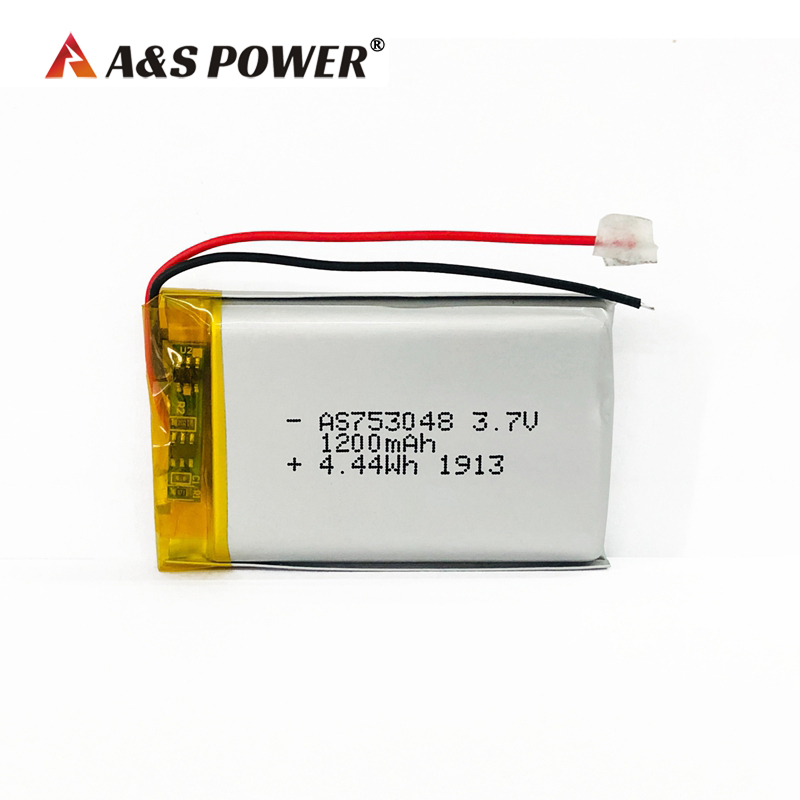

Product Photo

A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors.  We hope you find the one in our product list and suite you the best.  If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.

Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades.  We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production.  Our Customer Service can help for engineering suggestion to meet your specification.

A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.

Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely

A&S Power Lithium Polymer Battery Model List With Certifications:

Model	Nominal voltage(V)	Capacity (mAh)	Thickness  (mm)	Width  (mm)	Length  (mm)	Certification
AS10100	3.7	58	Diameter: 10		10	CQC
AS08310	3.7	130	Diameter: 8.0		31	IEC62133, UN38.3
AS17450	3.7	1100	Diameter: 17		45	IEC62133(CB), UN38.3
AS10500	3.7	390	Diameter: 10		50	IEC62133(CB), UN38.3
AS102040	3.7	700	10	20	40	UL1642,CE,UN38.3
AS102231	3.7	600	10	22	31	UL1642
AS103035	3.7	1000	10	30	35	UL1642,CE
AS103450	3.7	2000	10	34	50	UL1642,CE,UN38.3
AS104049	3.7	2600	10	40	49	UL1642,IEC62133(CB),CE,UN38.3
AS104065	3.7	3200	10	40	65	UL1642,IEC62133(CB),CE,BIS,UN38.3
AS105073	3.7	5000	10	50	73	UL1642,CE
AS112560	3.7	1800	11	25	60	UL1642
AS125099	3.7	3750	12	50	99	UL1642
AS126363	3.7	5400	12	63	63	UL1642,UN38.3
AS253550	3.7	360	2.5	35	50	UL1642,IEC62133(CB)
AS271420	3.7	20	2.7	14		UL1642
AS301320	3.7	55	3.0	13	20	UL1642
AS302025	3.7	100	3.0	20	25	UL1642
AS302323	3.7	110	3.0	23	23	UL1642,UN38.3
AS302530	3.7	180	3.0	25	30	KC
AS303080	3.7	850	3.0	30	80	UL1642,IEC62133,CE,UN38.3
AS3062173	3.7	3500	3.0	62	173	UL1642
AS321129	3.7	70	3.2	11	29	UL1642
AS351120	3.7	40	3.5	11	20	UL1642,CE
AS351121	3.7	45	3.5	11	21	UL1642
AS352025	3.7	110	3.5	20	25	UL1642,CE
AS352730	3.7	220	3.5	27	30	UL1642,CE
AS356585	3.7	2000	3.5	65	85	UL1642
AS357090	3.7	2800	3.5	70	90	UL1642,CE
AS371042	3.7	105	3.7	10	42	UL1642
AS381018	3.7	40	3.8	10	18	UL1642
AS391520	3.7	90	3.9	15	20	UL1642
AS392265	3.7	510	3.9	22	65	UL1642
AS400830	3.7	60	4.0	8	30	UL1642,CE
AS401020	3.7	55	4.0	10	20	UL1642,CE
AS401030	3.7	80	4.0	10	30	UL1642,CE,UN38.3
AS401119	3.7	50	4.0	11	19	UL1642
AS401120	3.7	60	4.0	11	20	UL1642
AS401230	3.7	120	4.0	12	30	UL1642,IEC62133(CB),KC,UN38.3,CQC
AS401235	3.7	130	4.0	12	35	UN38.3
AS401245	3.7	190	4.0	12	45	CE
AS401824	3.7	100	4.0	18	24	KC
AS402525	3.7	200	4.0	25	25	CE,KC,UN38.3
AS403040	3.7	430	4.0	30	40	UL1642,CE
AS405070	3.7	1700	4.0	50	70	UL1642,CE,UN38.3
AS405080	3.7	1750	4.0	50	80	UN38.3
AS406868	3.7	2200	4.0	68	68	UL1642,CE
AS423040	3.7	530	4.2	30	40	UL1642,UL2054,CE,KC,UN38.3
AS442030	3.7	210	4.4	20	30	UL1642,CE
AS443493	3.7	1500	4.4	34	93	UL1642
AS451268	3.7	280	4.5	12	68	UL1642
AS452428	3.7	250	4.5	24	28	CE
AS455060	3.7	1400	4.5	50	60	UL1642,CE
AS461730	3.7	200	4.6	17	30	UL1642,CE,KC,UN38.3
AS481221	3.7	70	4.8	12	21	UL1642,CE
AS483450	3.7	850	4.8	34	50	UL1642,CE,UN38.3
AS495892	3.7	3000	4.9	58	92	UL1642
AS501235	3.7	160	5.0	12	35	KC,UN38.3
AS502025	3.7	180	5.0	20	25	UL1642,CE,KC
AS502030	3.7	240	5.0	20	30	UL1642,CE,KC,UN38.3
AS502248	3.7	500	5.0	22	48	UL1642,IEC62133(CB),CE,UN38.3
AS503030	3.7	430	5.0	30	30	UL1642,CE,KC
AS503034	3.7	460	5.0	30	34	UL1642,CE
AS503035	3.7	500	5.0	30	35	UL1642,CE
AS504552	3.7	1200	5.0	45	52	UL1642,CE
AS505055	3.8	1800	5.0	50	55	UL1642,UL2054,IEC62133(CB),CE,UN38.3
AS505771	3.7	2200	5.0	57	71	UL1642,CE
AS506077	3.7	3400	5.0	60	77	UL1642,IEC62133(CB),CE,UN38.3
AS523450	3.7	1000	5.2	35	50	UL1642,CE
AS535058	3.7	1600	5.3	50	58	UL1642,CE
AS542435	3.7	500	5.4	24	35	UN38.3
AS552035	3.7	350	5.5	20	35	UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS
AS552540	3.7	540	5.5	25	40	UL1642,CE
AS553345	3.7	720	5.5	33	45	UL1642,CE
AS553436	3.7	740	5.5	34	36	UL1642,CE
AS553444	3.7	650/950	5.5	34	44	UL1642,CE,KC
AS553640	3.7	850	5.5	36	40	UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,CQC
AS553759	3.7	1350	5.5	37	59	UL1642,CE
AS556585	3.7	3600	5.5	65	85	UL1642
AS562438	3.7	400	5.6	24	38	UL1642,CE
AS583573	3.7	1500	5.8	35	73	UL1642
AS584070	3.7	2000	5.8	40	70	UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,PSE
AS593545	3.7	1050	5.9	35	45	CE
AS601362	3.7	500	6.0	13	62	UL1642,CE
AS601530	3.7	250	6.0	15	30	CE
AS601470	3.7	600	6.0	14	70	CE
AS602025	3.7	200	6.0	20	25	CE
AS602030	3.7	300	6.0	20	30	CE,KC
AS602240	3.7	500	6.0	22	40	UL1642,CE,KC
AS602663	3.7	1000	6.0	26	63	UL1642,IEC62133,CE,KC,UN38.3
AS603030	3.7	520	6.0	30	30	UL1642,IEC62133(CB),CE,KC,UN38.3,WERCS
AS603040	3.7	750	6.0	30	40	UL1642,UL2054,IEC62133(CB),CE,KC,UN38.3,WERCS
AS603048	3.7	900	6.0	30	48	UL1642,CE,KC,UN38.3
AS603245	3.7	720	6.0	32	45	UL1642
AS603450	3.7	1050	6.0	34	50	UL1642,IEC62133(CB),CE,KC,UN38.3
AS603465	3.7	1350	6.0	34	65	UL1642,CE
AS603952	3.7	1400	6.0	39	52	CE
AS604050	3.7	1100	6.0	40	50	UL1642,IEC62133(CB),UN38.3
AS606060	3.7	2500/3000	6.0	60	60	UL1642,CE
AS6060115	3.7	5000	6.0	60	115	UL1642,CE
AS623441	3.7	1000	6.2	34	41	CE
AS624046	3.7	1200	6.2	40	46	UL1642,IEC62133(CB),CE,UN38.3
AS6482148	3.7	3750	6.4	82	148	UL1642
AS652030	3.7	350	6.5	20	30	UL1642,CE,KC,UN38.3
AS652631	3.7	520	6.5	26	31	UL1642,CE
AS653136	3.7	800	6.5	31	36	CE
AS682134	3.7	500	6.8	21	34	UL1642
AS701235	3.7	250	7.0	12	35	CE
AS701729	3.7	300	7.0	17	29	UL1642,BIS
AS701416	3.7	100	7.0	14	16	UL1642,CE
AS701919	3.7	150	7.0	19	19	UL1642,CE
AS702040	3.7	500	7.0	20	40	UL1642,IEC62133(CB),CE,UN38.3,WERCS
AS703440	3.7	1000	7.0	34	40	UL1642,UL2054,CE,KC,UN38.3
AS704060	3.7	1800	7.0	40	60	UL1642,CE
AS705088	3.7	3400	7.0	50	88	UL1642
AS723272	3.7	1700	7.2	32	72	UL1642
AS753048	3.7	1200	7.5	30	48	UL1642,CE,KC
AS755070	3.7	3000	7.5	50	70	UL1642,IEC62133(CB),CE, KC
AS802030	3.7	420	8.0	20	30	UL1642,CE
AS803035	3.7	800	8.0	30	35	UL1642,UL2054,CE,KC,UN38.3
AS803040	3.7	900	8.0	30	40	CE
AS803648	3.7	1200	8.0	36	48	UL1642,CE
AS805052	3.7	2500	8.0	50	52	UL1642
AS8051116	3.7	6900	8.0	51	116	UL1642,CE
AS853450	3.7	1500	8.5	34	50	UL1642,CE,CB,KC,UN38.3
AS872237	3.7	750	8.7	22	37	UL1642
AS904286	3.7	4000	9.0	42	86	UL1642,CE
AS954674	3.7	4050	9.5	46	74	UL1642
AS962731	3.7	720	9.6	27	31	UL1642
AS853450-2P	3.7	3000	17	35	53	UL1642,UL2054,UN38.3

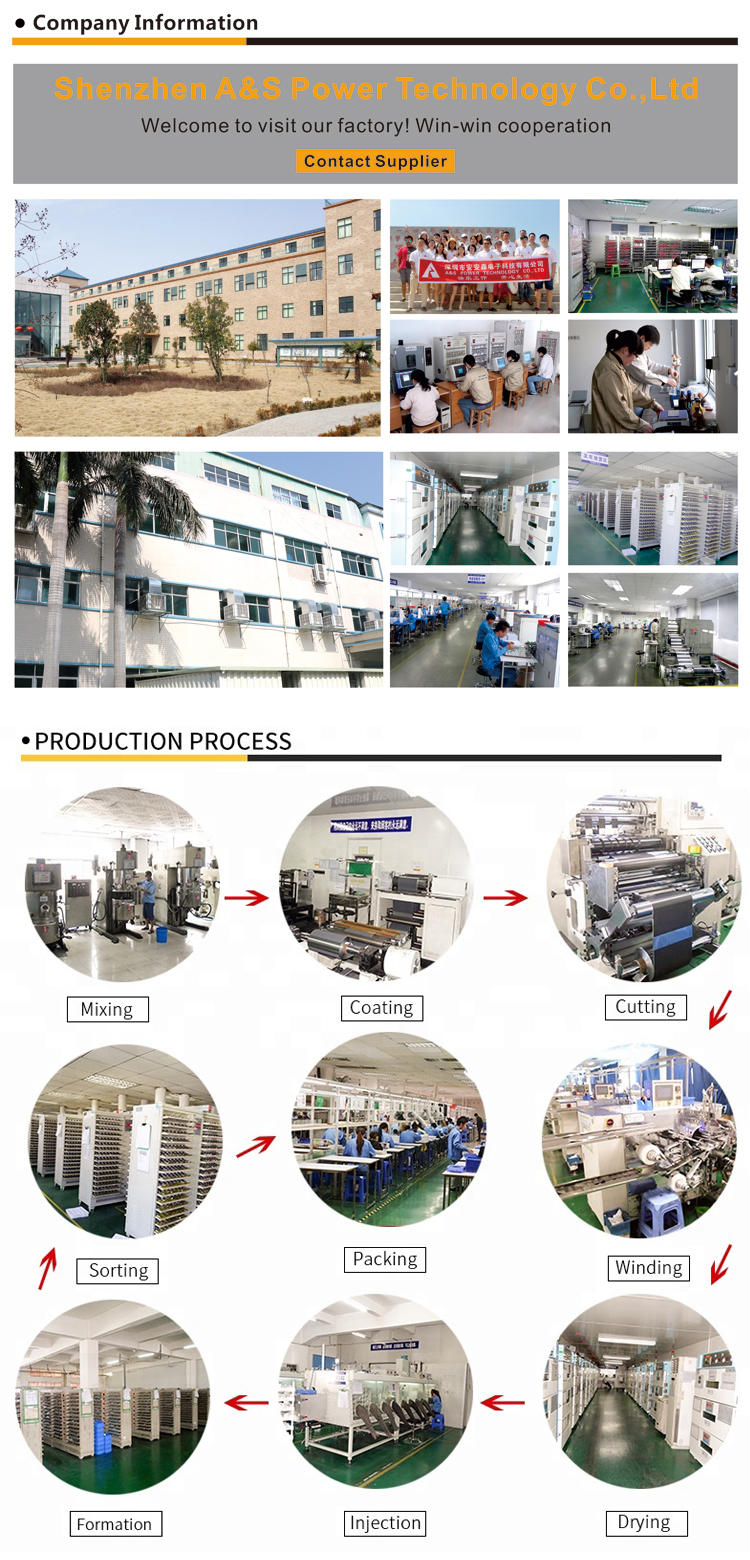

Company information:

A&S Power Technology Co., Ltd. was established in 2001, and specialize in manufacturing and exporting rechargeable lithium battery, like li-ion battery, li-polymer battery and LiFePO4 battery.



Company Overview

• Established :  2001
• Capital:    20,000,000.00 RMB
• Location:    Dongguan,Shenzhen
• Employee:  > 600
• Daily output:  100K Li-Poly, 50K LiFePO4,  80K Li-ion 18650

• OEM rechargeable battery manufacturer in China over 15 years
• Specialized in Lithium polymer battery, LiFePO4 battery and Li-ion Battery pack
• Our batteries got UL, KC, BIS,IEC62133, CB, CE, ROHS certifications
• We’re officially recognized by Philips, JVC, Skullcandy, Flex, Mitel etc. from 2013.
• We have succeeded in selling our batteries to the international markets of America, Canada, Europe, Africa, middle-east and South Asia.
• A&S Power has well presence in international fairs each year, such as CEBIT,Intersolar, KES, HK Electronic Fair



 Q1: Can I have some samples for testing quality?

 A1:  Yes, you can buy some samples of any our products for testing quality and market.

Q2: How should I pay?
A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as  order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.

Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne          by the buyers, for more details, please contact us.

Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when  you  place official order.

Q5: Are you factory?

A5: yes,we are factory.

If   you   have   any   questions   abouts  lithium ion polymer battery，lithium polymer batteries for sale，lithium polymer cell,you  can contact   with  us.Thank  you  to  visit  my  website:http://www.szaspower.com！
