UL 302025 3.7v 110mah li-poymer battery for bluetooth massager
prevnext

UL 302025 3.7v 110mah li-poymer battery for bluetooth massager

  • Art No :CPL302025
  • Material:Li-polymer battery
  • Size :3.5*21*27.5mm
  • Weight:2.8g
  • Description :1. Voltage:3.7v 2. Capacity: 110mah 3. Model: 302025 4. Dimension:3.5*21*27.5mm 5. Certification:UL1642

UL 302025 3.7v 110mah li-poymer battery for bluetooth massager

Product details


Specification:

UL 302025 3.7v 110mah li-poymer battery for bluetooth massager



Specification:



Item

Rating

Note

3.1    Capacity

Typical

110mAh

Discharge:0.2CmA

cut off Voltage:2.75V for cell

Minimum

100mAh

3.2    Nominal Voltage

Average  3.7V



3.3    AC Impedance Resistance

300mΩ



3.4    Discharge Cut-off Voltage

3.0V



3.5    Charge Current

20mA

Standard Charge

3.6    Charge Voltage

4.2V



3.7    Max. Charge Voltage

4.23V



3.8    Storage humidity

< 75%RH

Hygrometer

3.9    Max. Charge current

100mA

1.0CmA

3.10   Continuous discharge Current

100mA

1.0CmA

3.11   Pulse discharge current

200mA

2.0CmA

3.12   Weight

Approx 2.8g



3.13   Shipping Voltage

3.85~3.95V



3.14  Operating

Temperature

Charge

0~+45

Can be operated at max Altitude 3000m and 8%~90% humidity.

Discharge

-20~+60

Get more than 50% discharge capacity (typical) in -15°C or +55°C.

3.15  Storage

      Temperature

less than 1 month

-20~60

Recommended storage temp: 20℃,at the shipment state.

less than 3 months

-20~45

Less than 1 year

-20~20

Must charge once when the battery with pcm store more than half year.



Order infomation
MOQ: 1000pcs
Trade term: EXW, FOB or others.
Payment term:T/T in advanced, others terms pls negotiate by email.
Shipping way:By  Express or  Sea transportation
Packaging: Standard transportation packing.
Lead-time:  In stock: 7-10days, Out of stock: 25-30days
Warranty: 12 months



Product Photo


A&S Power 302025 3.7v 110mah li-poymer battery


( 1 ) Communication: We usually replies to emails within 3-4 hours during working time.

( 2 ) Order processing: Most orders are shipped within 20~25 days *except during Holidays and vacation.

( 3 ) After sale support: We will try to help you with any technical settup issues to our best knowledge

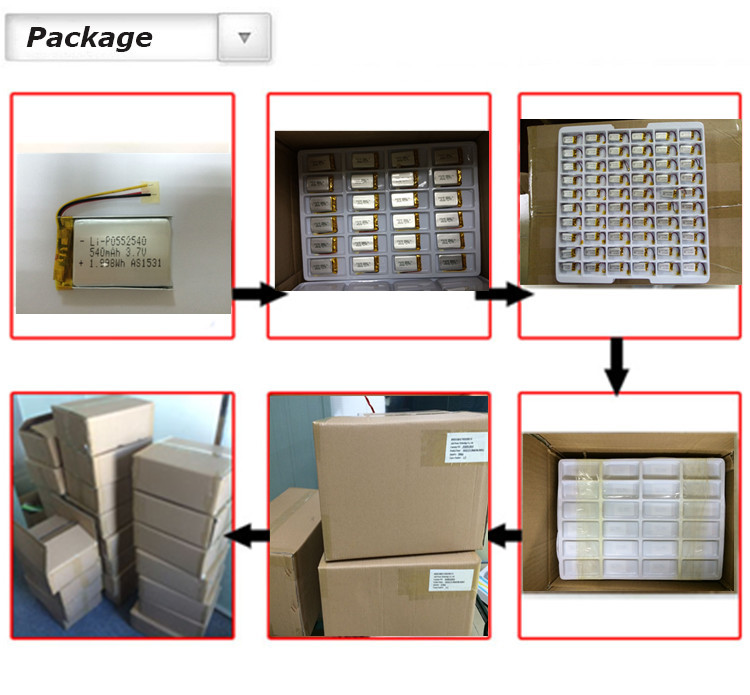

Packing and Shipping

Packaging Detail: Carton Box
Delivery Detail: 20-25 Days

A&S Power li-poymer battery Package

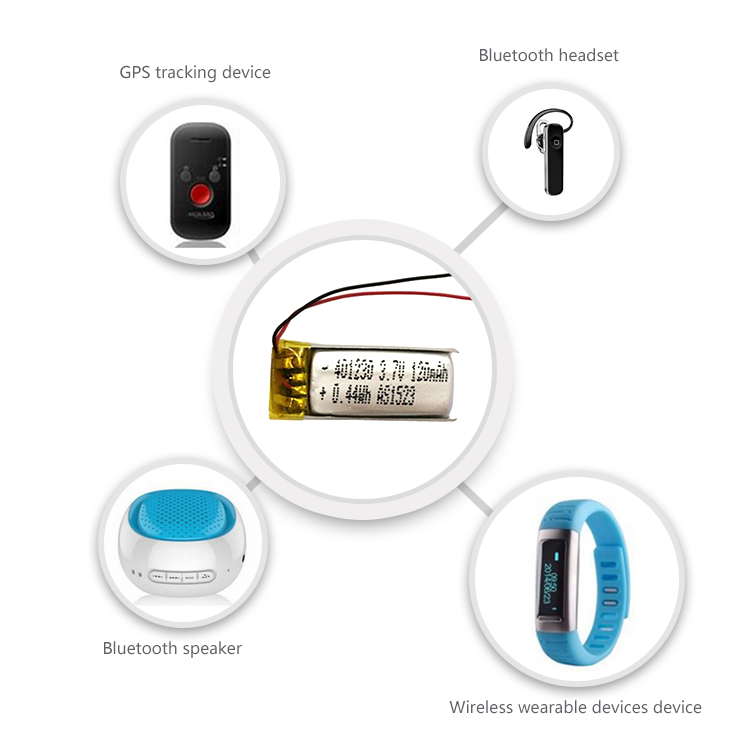

Application

A&S Power Lithium Battery Application

Company Information

Shenzhen A&S Power Technology Co.,Ltd, a OEM rechargeable battery manufacturer in China over 10 years. Specialized in Lithium polymer battery, LiFePO4 battery and Li-ion Battery. Our products are widely used in popular electronic products, such as Bluetooth Headset, Portable Speakers, consumer products, emergency light, GPS, digital player,  solar & wind energy storage, electronic auto and E-bus.

A&S Power lithium battery manufacturer

A&S Power Lithium Battery factory produced

A&S Power Lithium Battery fair photo

A&S Power Certification

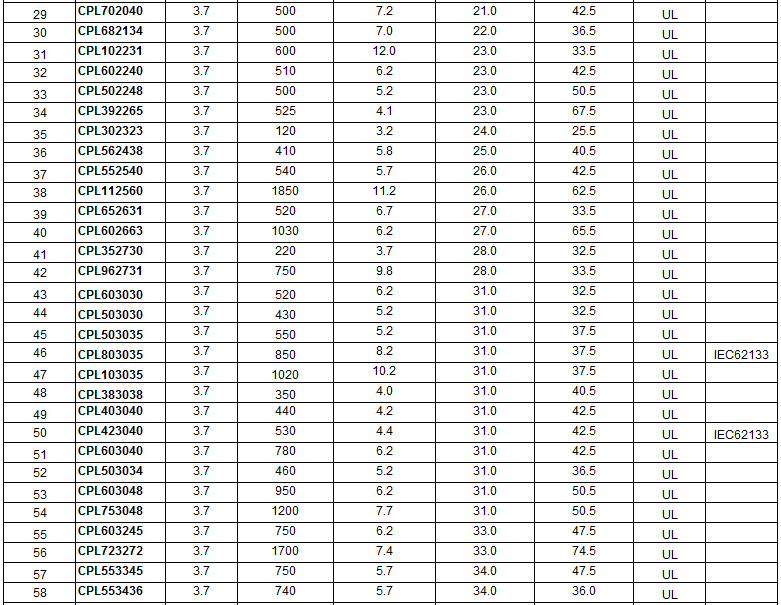

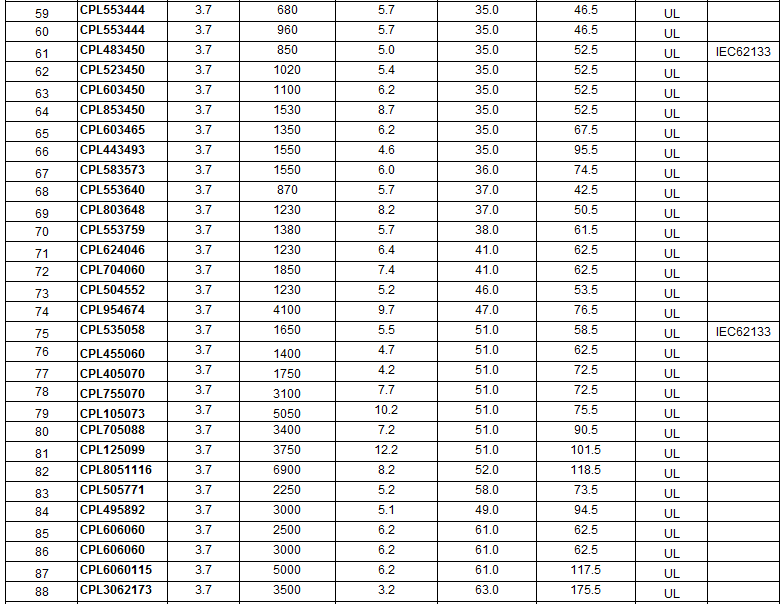

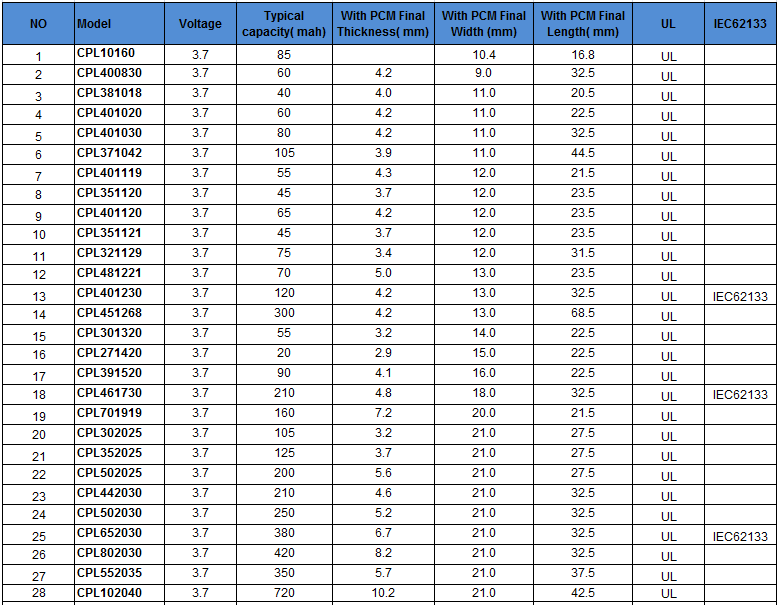

                                                         Our UL models:



A&S Power Lithium polymer battery


A&S Power Lithium polymer battery


A&S Power Lithium polymer battery


A&S Power Lipo battery factory




Advantage:
1.High Energy Density.
2. High Output Voltage.
3. Excellent Security.
4. Long Cycle Life: More than 500 repeated charge/discharge cycles.
5. Fast Charge Capacity: Can be fully charged in 2 to 3 hours with a rated voltage of 4.2 per cell
6. Environmental-friendly: No Pb, Cd added
7.Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload;
8.Injection Technology to make battery more stable;
9.With short-circuit production function, safe and reliable;
10.Factory mastered technology and competitive price;
11.CE/ROSH/UL/MSDS/UN38.3/IEC61233 standard.



FAQ


 Q1: Can I have some samples for testing quality?

 A1:  Yes, you can buy some samples of any our products for testing quality and market.

Q2: How should I pay?
A2: You can pay via T/T,L/C at sight,Western Union, Cash etc., 100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as  order confirmed and the balance before shipping via T/T or L/C etc. If you prefer other payment terms, please contact us freely.

Q3: What is your package looks like? Can I have the customized package?
A3: We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne          by the buyers, for more details, please contact us.

Q4: What is delivery time if we place an order?
A4: It depends order quantities. Usually, we can deliver goods within 3 -5 working days for small orders, for more QTY. order, let's confirm when you             place official order.

Q5: Are you factory?
A5: yes,we are factory.
