Assembly Process of Lithium Ion Battery

The assembly process of a lithium ion battery involves a series of precise steps that transform raw materials into a reliable energy storage device. You encounter lithium ion batteries daily, powering devices from smartphones to electric vehicles. Each battery must pass through four main stages: electrode manufacturing, cell assembly, formation, and pack production. Every stage in the process demands strict control and accuracy, which ensures both performance and safety.

• In 2024, global production of lithium ion batteries surpassed 10 billion cells, reaching nearly 11 billion units.

You rely on the strength of this process to deliver safe and efficient energy.

Key Takeaways

• The assembly of lithium ion batteries involves four main stages: electrode manufacturing, cell assembly, formation and aging, and pack production.
• Precision in electrode manufacturing is crucial. Uniform mixing and controlled drying enhance battery performance and lifespan.
• Cell assembly requires careful stacking or winding of electrodes and separators to maximize energy density and prevent short circuits.
• Formation and aging stabilize the battery's electrochemical properties. Initial charging forms a protective layer that extends battery life.
• Final testing ensures safety and performance. Rigorous protocols help identify defects and confirm that batteries meet global safety standards.

Electrode Manufacturing

Electrode manufacturing forms the foundation of lithium ion battery production. You rely on this stage to create electrodes with the right properties for energy storage and delivery. The process involves several steps that transform raw active materials into functional battery components. Precision and a controlled environment are essential throughout, as even minor errors can impact battery performance and safety.

Mixing

You begin by combining active materials, conductive additives, binders, and solvents to create a uniform slurry. This mixture determines the electrochemical characteristics of the electrode. For example, you might use graphite for the anode and lithium cobalt oxide for the cathode. Consistent mixing ensures each particle is evenly distributed, which supports stable battery operation.

Tip: Uniform mixing prevents defects and improves battery lifespan.

Coating

Next, you coat the slurry onto a metal foil, which acts as the current collector. Copper foil is common for anodes, while aluminum foil is used for cathodes. You must apply the coating evenly to achieve the desired thickness and coverage. This step directly affects how much energy the battery can store.

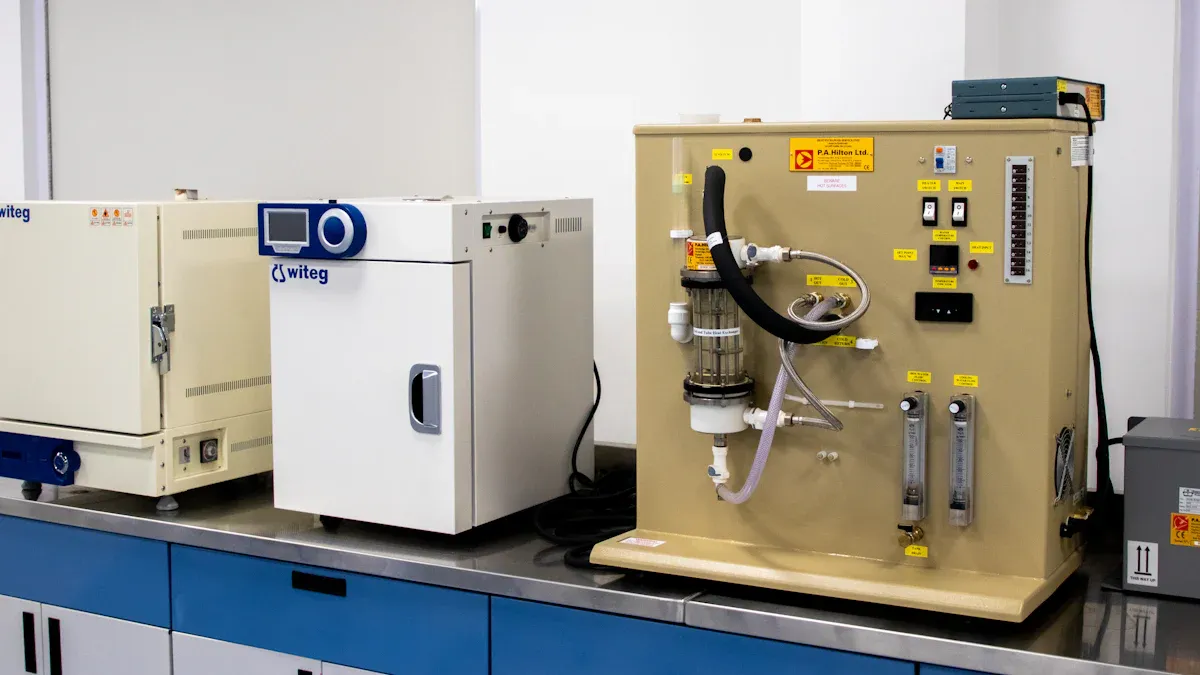

Drying

After coating, you dry the electrodes to remove solvents. You need to control temperature and humidity to avoid damaging the active materials. Wet coating methods require solvent recovery systems, while dry coating reduces energy use and environmental impact. Efficient drying supports high-quality battery manufacturing.

Pressing

You then press the dried electrodes to adjust thickness and density. This step, called calendaring, improves contact between particles and enhances battery performance. You must set the calender gap and roller speed precisely, as these factors influence mass loading and ionic resistance.

Slitting & Notching

Finally, you slit and notch the electrodes to match the required dimensions. You cut the electrodes into strips or shapes that fit the battery design. Accurate slitting prevents short circuits and ensures safe assembly.

Note: Maintaining a clean, controlled environment during electrode manufacturing reduces contamination and improves reliability.

Battery Cell Assembly

You enter the battery cell assembly stage after completing electrode manufacturing. This process combines the electrodes, separator, and electrolyte to create a functional lithium ion battery cell. Each step requires precision and a controlled environment to prevent contamination and ensure safety.

Stacking/Winding

You start by arranging the electrodes and separator. You can use either stacking or winding methods. Stacking places the electrodes and separator in flat layers, which maximizes space utilization—up to 95%. Winding rolls the components into a spiral, reaching about 88% space efficiency. Stacked cells store more energy in the same volume, which increases energy density. Laminated structures can boost energy density by around 5% compared to winding. You select the method based on the battery’s intended application and required performance.

Tip: Stacking is preferred for high-performance batteries in electric vehicles due to its superior energy density.

Separator Placement

You position the separator between the anode and cathode. The separator prevents direct contact between electrodes, which avoids short circuits and safety hazards. It also holds the electrolyte and supports ion movement during charging and discharging. The separator’s design and material properties play a critical role in battery safety, especially in preventing thermal runaway. You must ensure the separator is free of defects and properly aligned.

Welding

You connect the electrode tabs using welding techniques. Spot welding or ultrasonic welding creates strong, reliable joints. You need to ensure precise alignment and secure connections to maintain electrical conductivity and mechanical stability. Welding errors can lead to increased resistance or even battery failure. You use automated machines to achieve consistent results and minimize human error.

Electrolyte Filling

You fill the cell with electrolyte under vacuum conditions. The electrolyte enables lithium ions to move between electrodes during operation. You use vacuum machines to draw the liquid into the electrodes, ensuring complete wetting and avoiding air pockets. Moisture contamination poses a serious risk at this stage. Even small amounts of water can react with lithium salts, forming hydrofluoric acid that damages electrodes and reduces battery lifespan. You must work in a dry room or glove box to keep humidity levels extremely low.

Note: Stable electrochemical performance requires maintaining a low dew point in the assembly area.

Sealing

You seal the battery cell using heat or welding. Proper sealing prevents leaks and protects the cell from external contaminants. You inspect each cell for defects such as pinholes, scratches, or edge wrinkles. Common defects include point defects, linear defects, and edge defects. You use automated inspection systems to detect these issues and ensure quality. You follow strict safety protocols, including wearing personal protective equipment and working on non-conductive surfaces, to prevent accidents.

• Prepare your workspace on a non-conductive surface.
• Wear gloves and safety glasses.
• Inspect each battery for damage before final sealing.

You complete the cell assembly process by ensuring every cell meets safety and performance standards. Academic research highlights the importance of moisture control and defect detection in lithium ion battery manufacturing. You rely on advanced equipment such as CCD testers, spot welders, and comprehensive testers to maintain quality. South Korean manufacturers often lead in adopting these technologies, setting global standards for reliability and efficiency.

Formation and Aging

After you assemble the battery cell, you move to the formation and aging stage. This process shapes the final electrochemical properties of the lithium ion battery and ensures long-term stability. You must pay close attention to every detail, as this stage determines the battery’s safety and performance.

Initial Charging

You begin with the initial charging phase. Here, you apply a controlled current to the cell for the first time. During this step, lithium ions move from the cathode to the anode. The graphite electrode undergoes significant structural changes. Lithium ions intercalate into the graphite, passing through several stages. The graphite transforms from stage III (LiC30) to stage II (LiC12), and finally to stage I (LiC6). This process forms a solid electrolyte interphase (SEI) layer on the anode surface. The SEI layer protects the electrode and reduces unwanted side reactions. You must control the charging rate and temperature to avoid damaging the cell.

Note: The initial charging phase is critical for forming a stable SEI layer, which directly affects battery lifespan.

Performance Testing

Once you complete initial charging, you move to performance testing and aging. You store the cells under controlled conditions for up to three weeks. This period allows the SEI film to stabilize and the electrolyte to fully infiltrate the electrode. You also monitor voltage and capacity to detect any defects. The main objectives of this process include:

• Stabilizing the SEI film to reduce side reactions and improve cycle life.
• Releasing internal stress to prevent mechanical issues.
• Allowing gas escape to avoid bulging and ensure proper contact.
• Screening defective cells for quality control.
• Balancing electrolyte distribution for better ion movement.

You can see the objectives summarized in the table below:

You typically spend 1.5 to 3 weeks on this stage, depending on the manufacturing protocol and temperature. By following these steps, you ensure each lithium ion battery meets strict safety and performance standards before moving to pack production.

Pack Production

Module Assembly

You enter the module assembly stage after completing cell formation and aging. You group individual lithium cells into modules based on specific circuit connections. This step determines the voltage and capacity of the final battery pack. You select cells with similar capacity, voltage, and internal resistance to ensure consistency. You use advanced sorting techniques to classify cells and improve module efficiency.

1. Sort cells by capacity, voltage, and resistance.
2. Connect cells using automatic welding for secure electrical links.
3. Assemble welded modules with busbars and protection boards.
4. Integrate heat control systems, insulation, and a Battery Management System (BMS) for safety.
5. Verify module structure, electrical performance, and safety features.

Research shows that the arrangement of modules impacts thermal management and overall safety. Optimized configurations improve heat dissipation and reduce the risk of uneven current distribution.

You design modules to meet the requirements for energy density, stability, and cycle life. You use proper insulation and separators to prevent short circuits and thermal runaway. You ensure modules meet the voltage and capacity needs of the application.

Final Testing

You conduct rigorous testing before shipping the battery pack. You assess performance, durability, and safety using industry-standard protocols. You perform tests that simulate real-world conditions and operational limits. The UN38.3 tests and abuse tests, such as the Nail Penetration Test, help you evaluate safety under extreme scenarios.

You use remote monitoring and communication boards to support rapid recharging and data collection. You package tested battery packs to maintain integrity during transit. You follow strict manufacturing protocols to ensure every lithium battery meets global safety standards.

You have seen how the lithium ion battery assembly process involves four main stages: electrode manufacturing, cell assembly, formation and aging, and pack production. Each step plays a vital role in battery quality and safety. The table below shows how every stage contributes to safe lithium battery manufacturing:

Advancements in materials and process control have made battery manufacturing more precise and reliable. You can expect future trends like solid-state batteries and silicon anodes to further improve performance and sustainability. Appreciate the complexity behind every lithium ion battery you use.
