Lithium-ion Battery Pack Design and Process

  March 2025-09-02 14:30:30

In the modern lithium battery industry, a single cell is only the smallest unit of energy. To serve real-world applications, it must be scientifically assembled and managed into a complete battery pack (PACK). This process involves electrochemistry, structure, electronics, and safety engineering.






Step 1 – Defining Requirements



Battery pack design starts with application needs:



  • Voltage and capacity requirements (e.g., 36V, 15Ah for e-bikes).

  • Energy density, safety, and expected lifespan.

  • Environmental factors such as waterproofing, vibration resistance, and temperature range.






Common Lithium Battery Cell Types

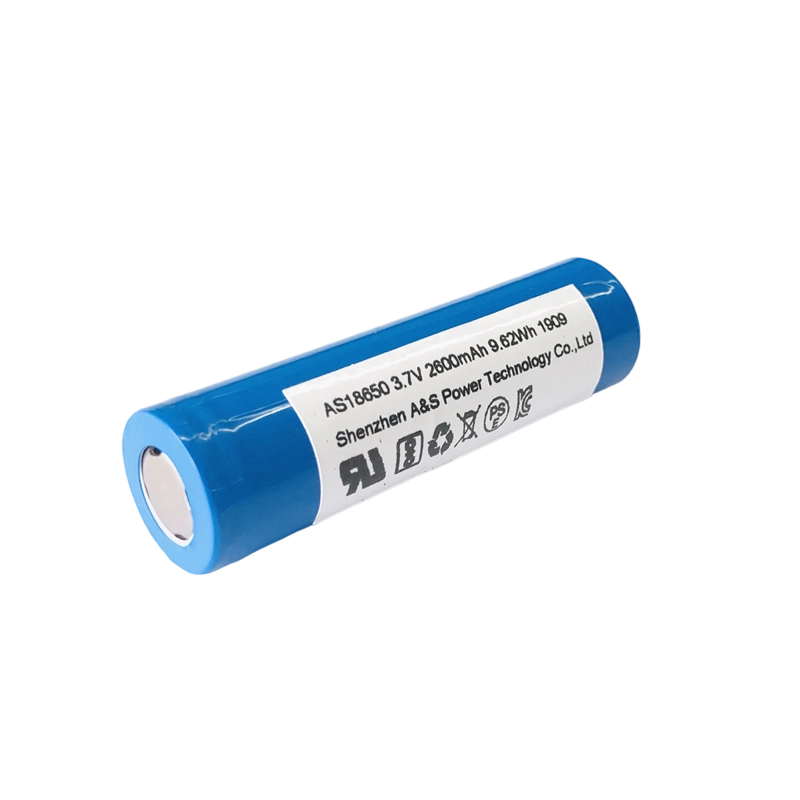

18650 Cells



  • Size: Ø18×65mm

  • Capacity: 1800–3500mAh

  • Mature technology, widely used in laptops, e-bikes, and early EVs (e.g., Tesla Model S).

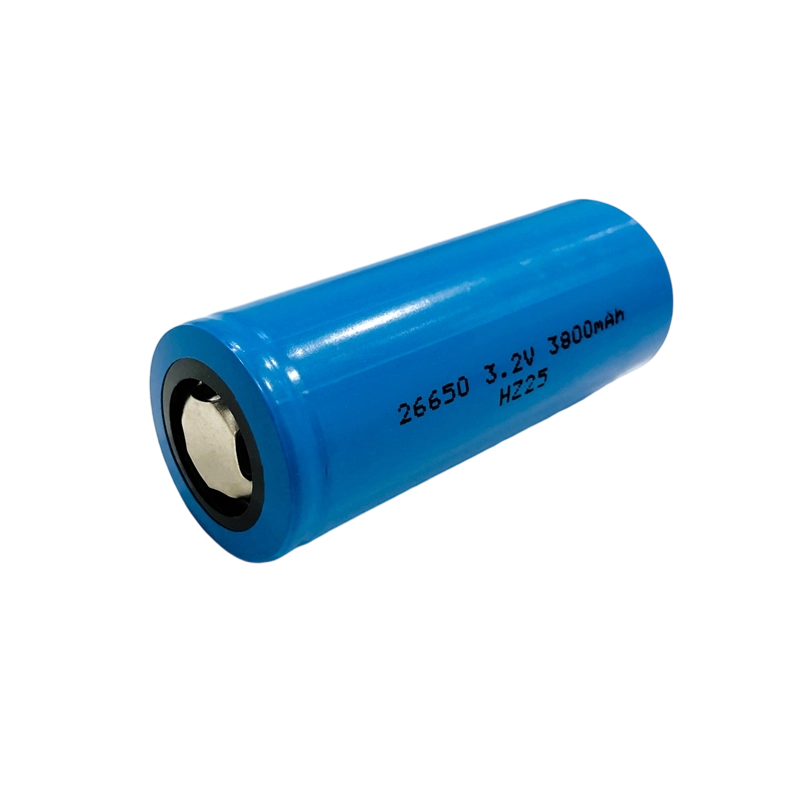

26650 Cells



  • Size: Ø26×65mm

  • Capacity: 4000–5000mAh

  • Slightly lower energy density than 18650 but higher discharge rate and better cycle life.

  • Ideal for power tools and high-power energy storage.

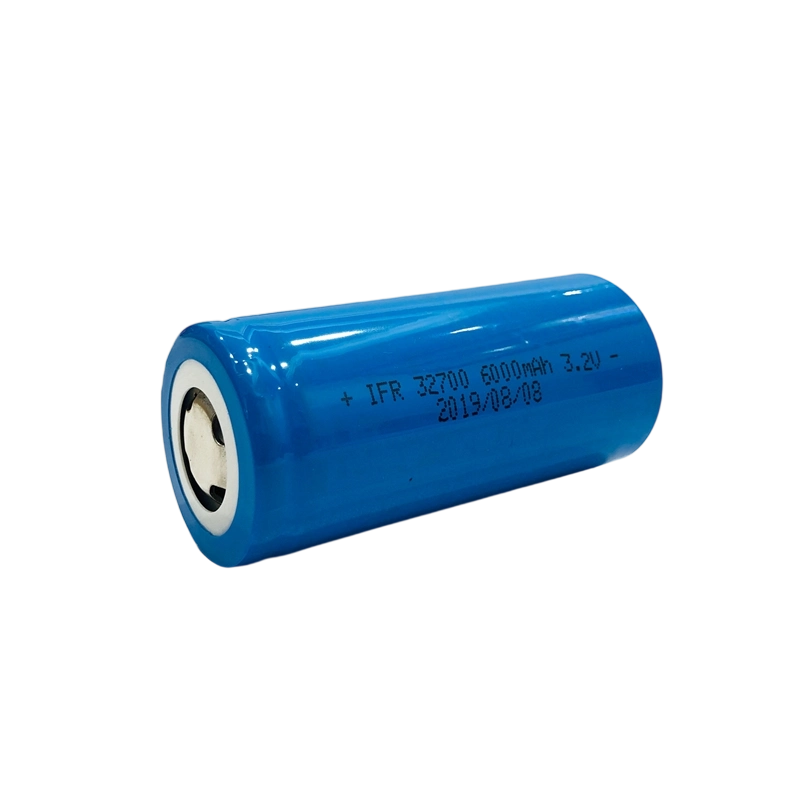

32700 Cells



  • Size: Ø32×70mm

  • Capacity: 6000mAh+

  • Common in low-speed EVs, telecom energy storage, and home storage systems.





Cell choice directly impacts volume, weight, cost, and complexity of the PACK.






Step 2 – Cell Matching & Screening



Even cells from the same batch may differ in:



  • Capacity

  • Internal resistance

  • Open-circuit voltage



To ensure consistency:

  • Group cells with similar parameters.

  • Example: In a 10s5p 18650 pack, the 5 cells in each parallel group must match closely.






Step 3 – Connection Methods



  • Nickel strip spot welding: Common for small packs (laptops, power banks).

  • Laser welding: Used in 26650 packs for high current and durability.

  • Bolt & copper bar connections: Often used in 32700 energy storage cabinets for easy maintenance.






Step 4 – Battery Management System (BMS)



The BMS is the brain of the pack. Functions include:



  • Monitoring voltage and temperature.

  • Preventing overcharge, over-discharge, and overheating.

  • Cell balancing to avoid uneven voltages.

  • Advanced packs add SOC algorithms, remote monitoring, and communication.






Step 5 – Thermal Management



Heat control is crucial for safety and lifespan.



  • 18650 packs: natural cooling or small fans.

  • 26650 packs: often air cooling for tools and e-motorcycles.

  • 32700 packs: large systems usually need liquid cooling for consistent temperature.






Step 6 – Mechanical Structure & Safety



  • Cases: aluminum alloy or flame-retardant plastics.

  • Protection: insulation sheets, gaskets, fuses, or breakers.

  • Standards: e.g., IP65 waterproofing for e-bike packs, fireproofing for energy storage cabinets.






Step 7 – Testing & Verification



Before mass production, packs undergo:



  • Electrical performance tests.

  • Overcharge / overdischarge / short circuit tests.

  • High & low temperature cycles.

  • Vibration, drop, and shock tests.



Example: 26650 tool packs must withstand heavy vibration and drops at construction sites.






Conclusion



Designing a lithium-ion battery pack is a systematic engineering project.



  • 18650: mature, portable devices, and small-to-mid power.

  • 26650: excellent for high-current tools and equipment.

  • 32700: best for energy storage and low-speed EVs.



A successful PACK requires demand-driven design, cell matching, reliable connections, intelligent BMS, robust thermal management, and strict safety testing. Only then can it operate stably in electric mobility, renewable energy storage, and daily electronics.
