Parameters
Norminal Capacity: 500mAh
Rated Voltage: 3.7V
Weight: 9g
Dimensions (mm): 5.2*30*37.5mm
lmpedance: ≤220mΩ
Standard Charge/Discharge: 0.2C
Max Charge/Discharge: 500mA
Peak Discharge: 1.0CmA
Charge Temp: 0~+45℃
Discharge Temp: -20~+60℃

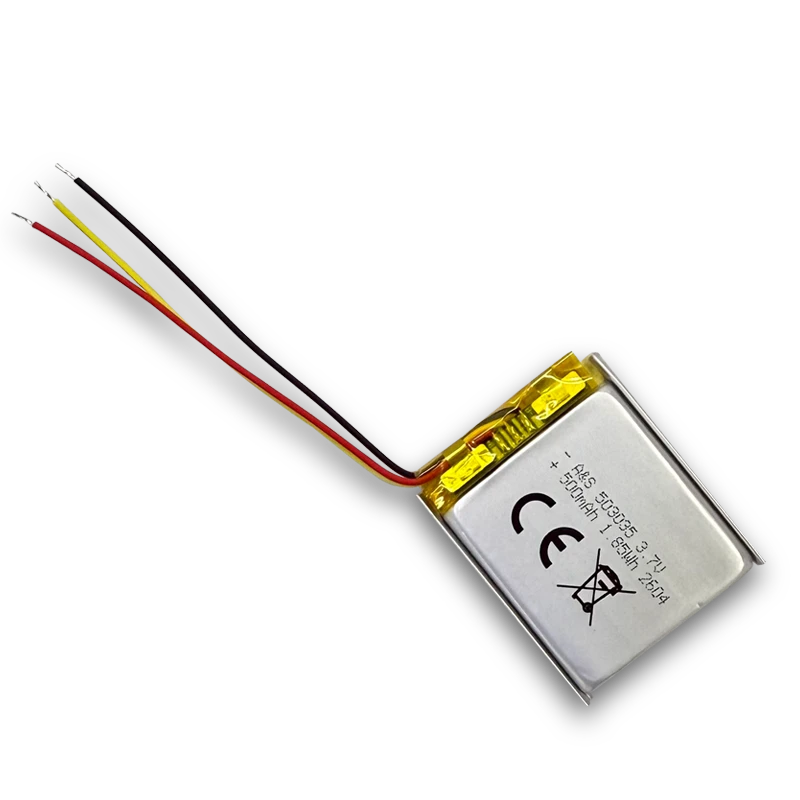

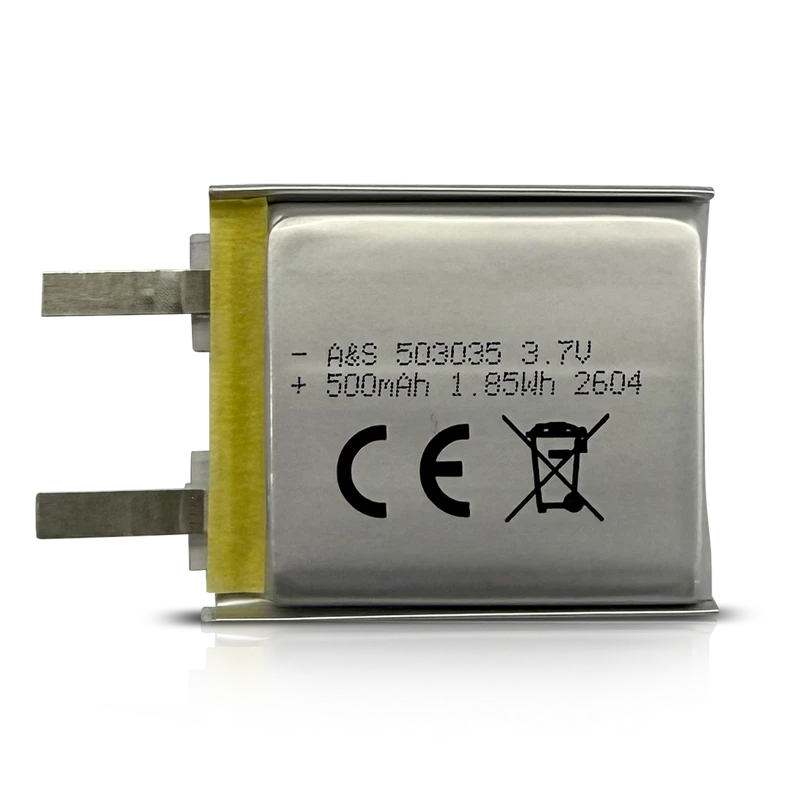

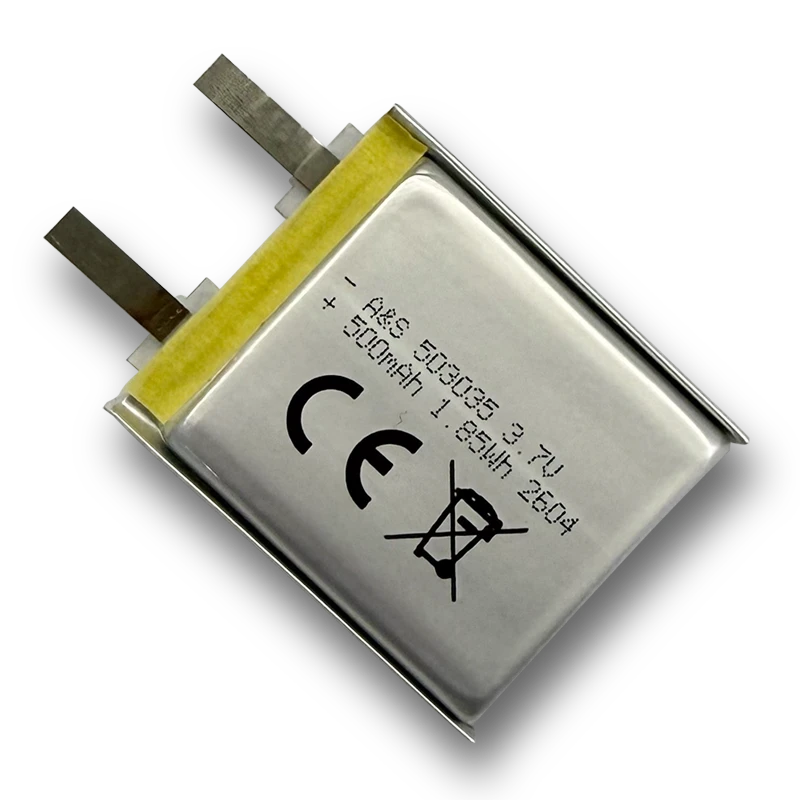

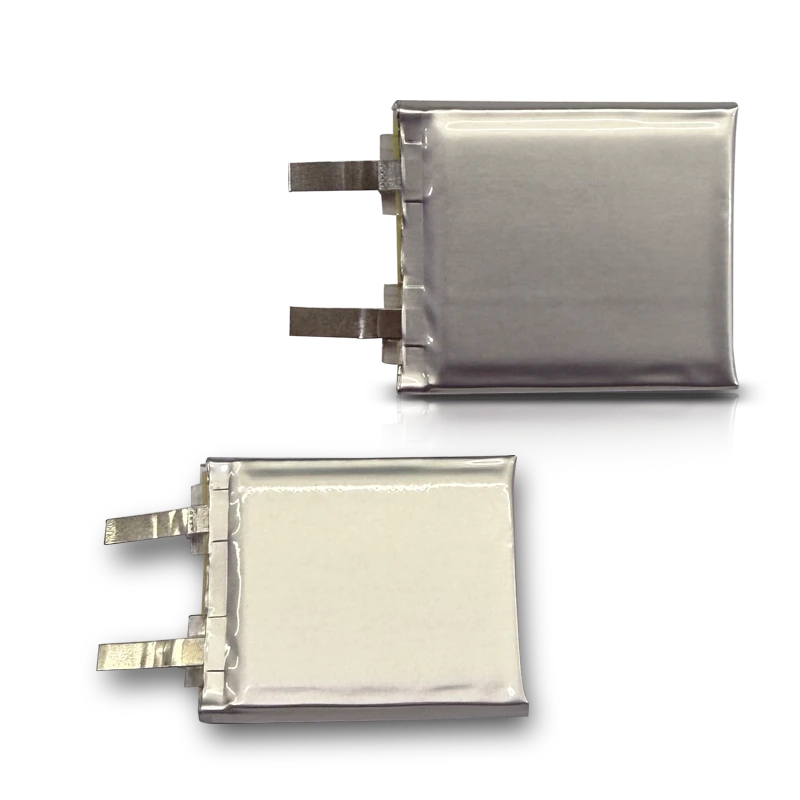

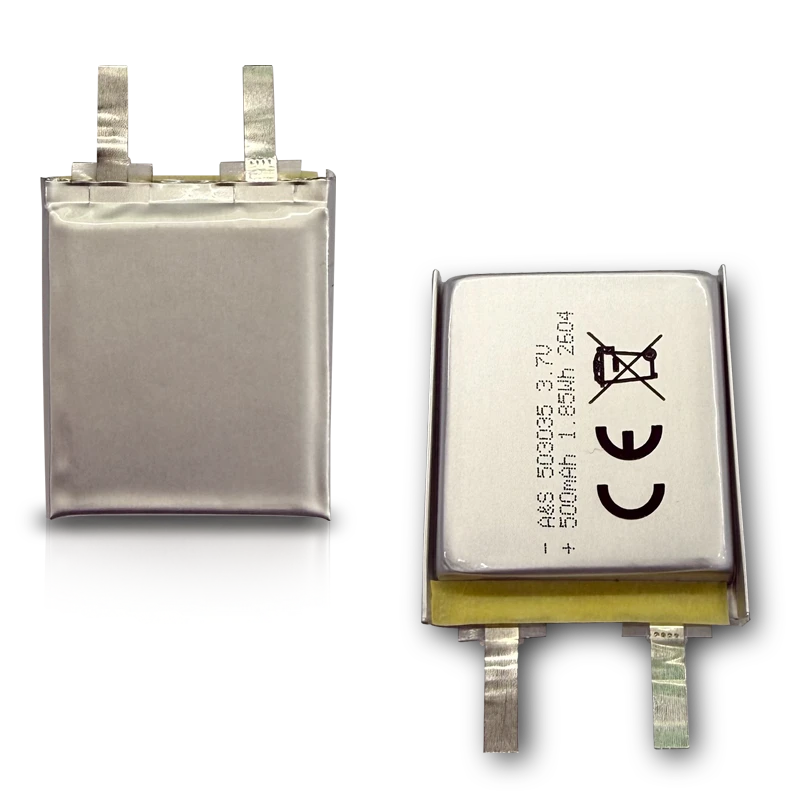

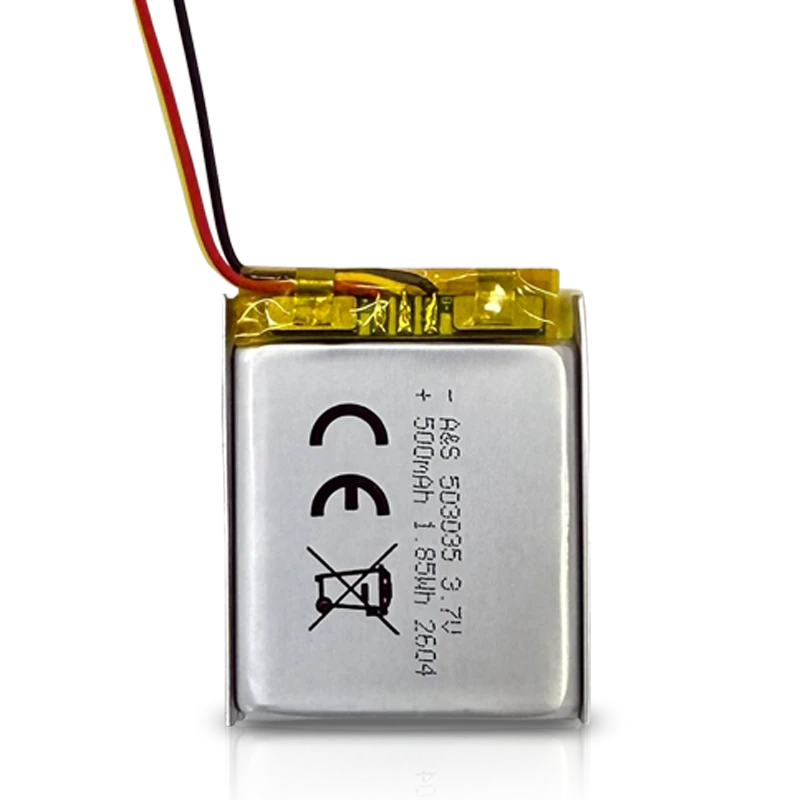

AS503035 3.7v 500mAh Lithium Polymer Battery Product Parameters:
|
|
Item
|
Rating
|
Note
|
|
|
3.1 Capacity
|
Typical
|
500mAh
|
Temperature：25±5℃ Charge ：0.2C Discharge：0.2C
|
|
Minimum
|
480mAh
|
|
3.2 Nominal Voltage
|
Average 3.7V
|
|
|
3.3 AC Impedance Resistance
|
≤100mΩ
|
Cell
|
|
≤200mΩ
|
Battery Pack
|
|
3.4 Discharge End Voltage
|
3.0V
|
|
|
3.5 Charge Current
|
100mA
|
Standard Charge
|
|
3.6 Charge voltage
|
4.2V
|
Cut-off current≤5.0mA
|
|
3.7 Charge Time
|
Approx 6 h
|
Standard Charge
|
|
3.8 Storage humidity
|
< 85%RH
|
|
|
3.9 Max Charge Continuous
|
500mA
|
+10~+45℃
|
|
3.10 Discharge Continuous
|
250mA
|
|
|
3.11 Max Discharge Continuous
|
500mA
|
+10~+45℃
|
|
3.12 Weight
|
Approx 9g
|
|
|
3.13 Shipping Voltage
|
3.85~3.95V
|
|
|
3.14 Operating Temperature
|
Charge
|
0~+45℃
|
Max Charge: 100mA
|
|
+10~+45℃
|
Max Charge: 500mA
|
|
Discharge
|
-20~+60℃
|
|
|
3.15 Storage Temperature
|
less than 1 month
|
-10~+45℃
|
Recommended storage
|
|
temperature: 25±2℃,at the shipment state
|
|
less than 3 months
|
-10~+35℃
|
 |
|

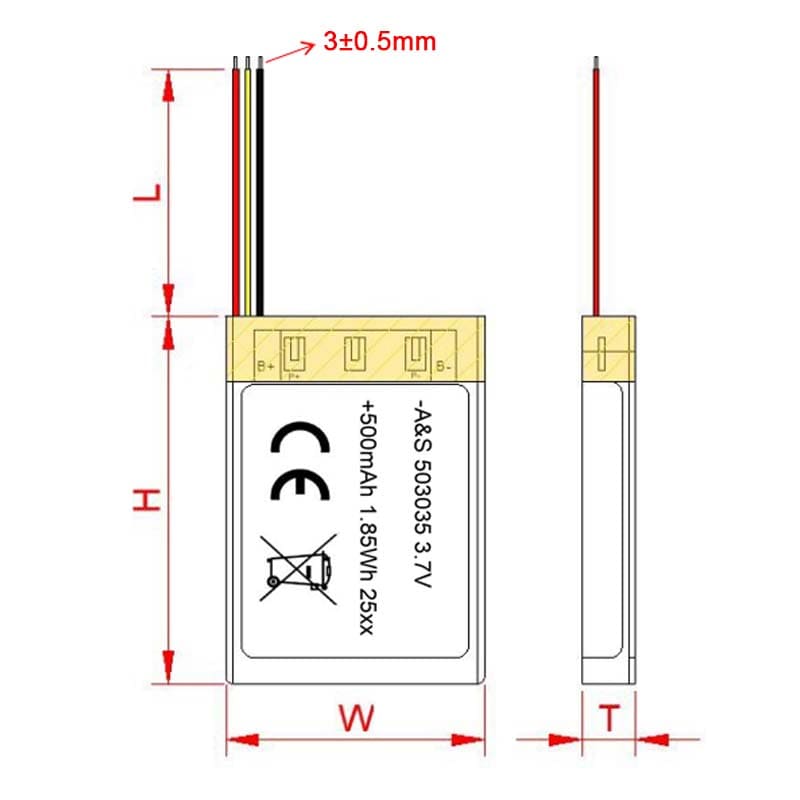

Item
|
Pack Dimension
|
|
T
|
5.2 mm max. (After 500 cycle life 5.46mm max)
|
|
W
|
30.0 mm max.
|
|
H
|
37.5 mm max.
|
|
L
|
56±3 mm (UL3302 28# AWG)
|
|
Performance
1 Standard Test Conditions
Test should be conducted with new batteries within one month after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise defined, test and measurement shall be done under temperature of 25±2℃ and relative humidity of 45~85%. The test results are not affected evidently by such conditions of temperature 15~30℃ or humidity 25~85%RH.5.2 Measuring Instrument or Apparatus.
2 Measuring Instrument or Apparatus
2.1 Dimension Measuring Instrument
The dimension measurement shall be implemented by instruments with equal or more precision scale
of 0.01mm.
