Parameters
Norminal Capacity: 3000mAh
Rated Voltage: 3.7V
Weight: 60g
Dimensions (mm): 6.2x61x62.5mm
lmpedance: ≤280mΩ
Standard Charge/Discharge: 0.2C
Max Charge/Discharge: 3000mA
Peak Discharge: 1.0CmA
Charge Temp: 0~+45℃
Discharge Temp: -20~+60℃

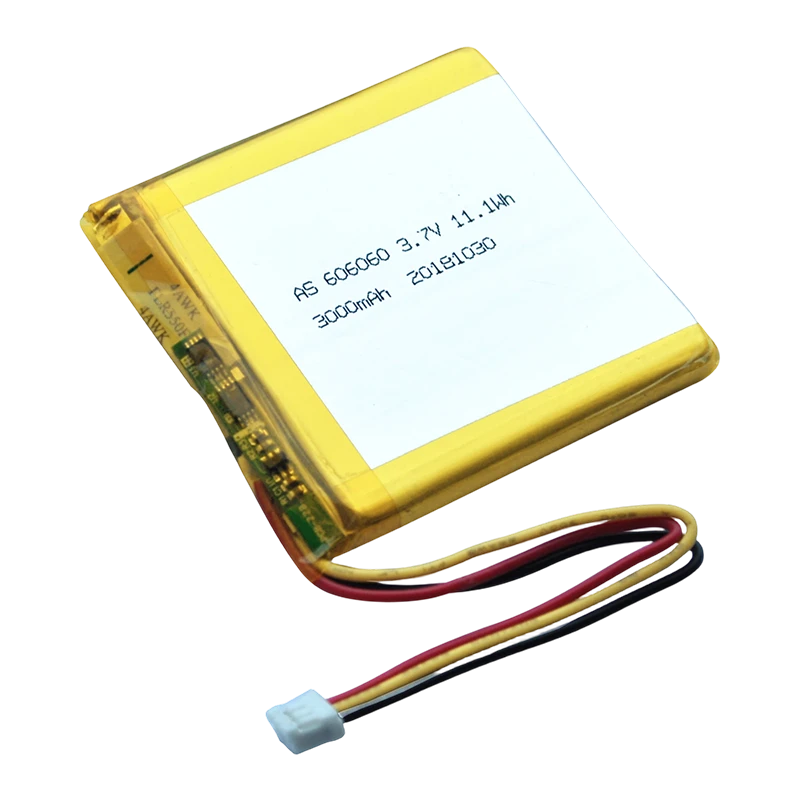

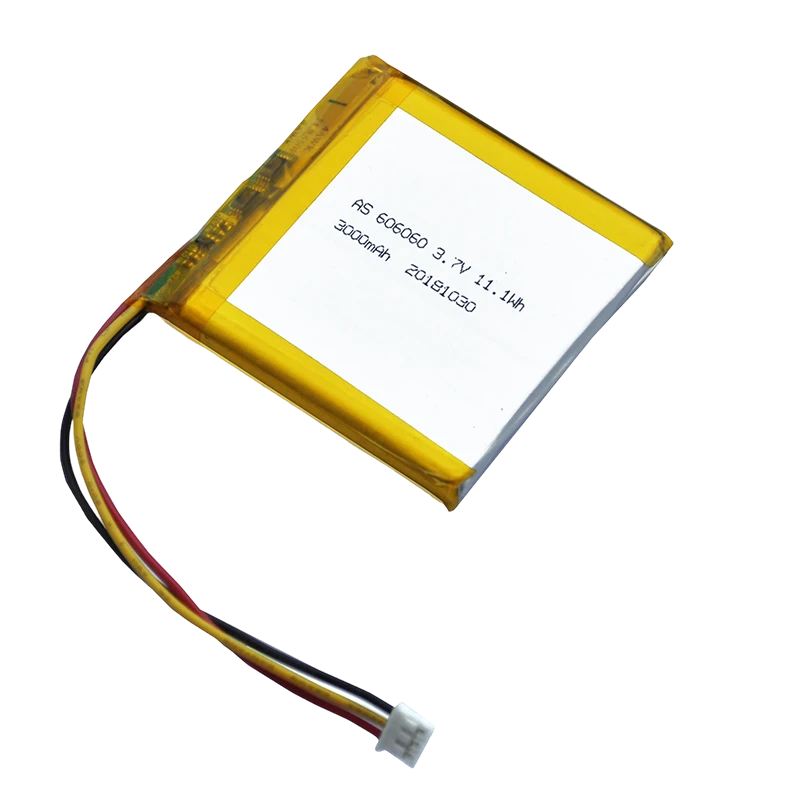

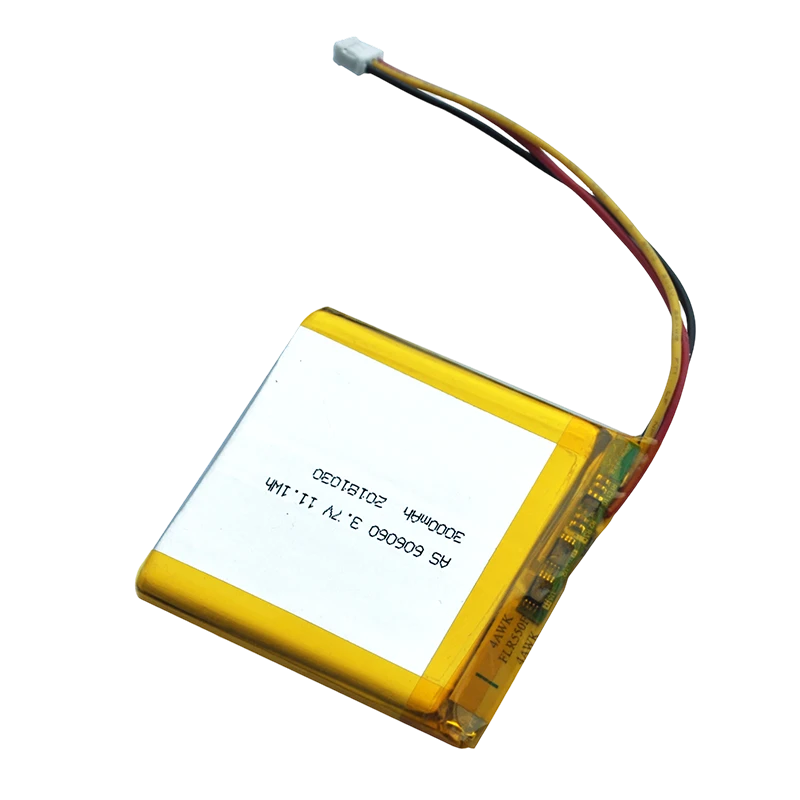

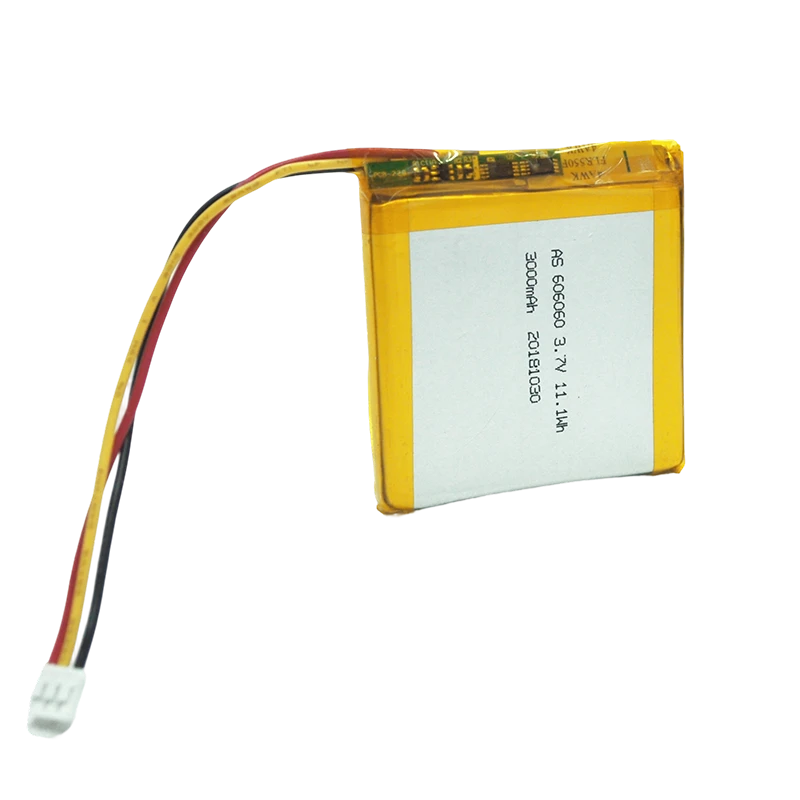

AS6060605 3.7v 3000mAh Lithium Polymer Battery Product Parameters:
|
Item
|
Rating
|
Note
|
|
Capacity
|
Typical
|
3000mAh
|
Discharge:0.2CmA
cut off Voltage:3.0V for cell
|
|
Minimum
|
3000mAh
|
|
Nominal Voltage
|
Average 3.7V
|
Discharge:0.2CmA
cut off Voltage:3.0V for cell
|
|
AC Impedance Resistance
|
≤280mΩ
|
|
|
Discharge Cut-off Voltage
|
3.00V
|
|
|
Charge Current
|
600mA
|
Standard Charge
|
|
Charge Voltage
|
4.2V
|
|
|
Max. Charge Voltage
|
4.23V
|
|
|
Charge Time
|
Approx 6h
|
Standard Charge
|
|
Max. Charge Current
|
3000mA
|
1.0 CmA
|
|
Max. Discharge Current
|
3000mA
|
1.0 CmA
|
|
Weight
|
Approx 60g
|
|
|
Operating Temperature
|
Charge
|
0~+45°C
|
|
|
Discharge
|
-20~+60°C
|
|
|
Storage Temperature
|
less than 1 month
|
-20~+45°C
|
Recommended storage
temperature: 20°C,at the
shipment state
|
|
less than 3 months
|
-20~+35°C
|
Performance
1 Standard Test Conditions
Test should be conducted with new batteries within one month after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise defined, test and measurement shall be done under temperature of 25±2℃ and relative humidity of 45~85%. The test results are not affected evidently by such conditions of temperature 15~30℃ or humidity 25~85%RH.5.2 Measuring Instrument or Apparatus.
2 Measuring Instrument or Apparatus
2.1 Dimension Measuring Instrument
The dimension measurement shall be implemented by instruments with equal or more precision scale
of 0.01mm.
Custom Lithium Polymer Battery Solutions
1. Support Customized Battery Size:
The Same Battery Capacity We Can Do Different Sizes To Meet Customer Size Limitations;
2. Support Custom Wire And Plug:
Customized Wire And Plug According To Customer’s Use Scenario Requirements;
3. Support Customized Voltage:
We Support Customized Polymer Battery Packs To Meet Customers’ Demand For Battery Voltage And Capacity Through Series And Parallel Batteries;
4. Support Custom PCM Circuit Board:
In Addition To The Standard Overcharge, Overdischarge, Short Circuit Protection, We Also Support Temperature Overheat Protection, Communication Functions And Other Customized Services;
We specialize in providing customized lithium battery solutions for medical devices, GPS trackers, wearables, and more. Our products are known for their reliability, safety, and precision engineering. Whether you need high-capacity or ultra-slim battery packs, our engineering team is ready to help bring your project to life.
Battery Support Customization (Size Voltage Capacity BMS Chip Cable Plug)
|
 |
| Battery Cells |
With PCB and Wire |
With PCB Wire and Connector |
Battery Protection Board Support Customization
|
 |
Terminal Cable and Plug Support Customization
|
 |
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely.
 |
|
 |
|
 |
|
 |
Automatic Rolling Machine
|
|
Electrolyte Injecting Machine
|
|
Automatic Tape Sticking Machine
|
|
Automatic Slitting Machine
|
 |
|
 |
|
 |
|
 |
Fully Automatic Tablet Making Machine
|
|
Aluminum-Plastic Film Punching Machine
|
|
Ultra High Vacuum Baking Machine
|
|
Thermoforming
|
Partnerships
|
 |
Our Service
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries professional in English of course.
• OEM is highly welcomed. We have strong R&D team here to help.
• Your business relationship with us will be confidential to any third party.
• 1 year warranty of products and good after-sale service offered, please get back if you got question.
Contact Us
Shenzhen A&S Power Technology Co., Ltd
Tel: +86-0755-28169348
Fax:+86-0755-84157385
E-mail: info@szaspower.com
sales@szaspower.com
Address: Rm1312,A Block,Weidonglong Business Building,No.2125 Meilong Rd,Longhua,Shenzhen,Guangdong,518109,CHINA
Our website lists just some of the products we have
successfully supplied,but please note this is just
representative and an example of our products&service,
so,if you cannot see the product you are looking for, please contact us today!!!
FAQs: AS606060 3.7V 3000mAh Li-Po Battery
Q1: What are the physical dimensions and key electrical specs of the AS606060 battery?
A: The battery measures approximately 6.0mm in thickness, 60mm in width, and 60mm in length ($\pm0.5\text{mm}$ tolerance). It features a nominal voltage of 3.7V and a high-capacity rating of 3000mAh, making it ideal for devices requiring long runtimes in a relatively flat, square profile.
Q2: What safety certifications does this model carry?
A: The AS606060 is certified with UL (UL1642/2054) and CB, ensuring compliance with international safety standards. It also comes with UN38.3 and MSDS reports, facilitating safe international shipping via air and sea.
Q3: Can the protection circuitry (PCM/BMS) and connectors be tailored to my project requirements?
A: Yes, we offer full OEM/ODM customization. You can specify wire lengths, wire gauges, and connector types (e.g., JST, Molex, etc.). The built-in PCM/BMS can be configured for specific overcharge/over-discharge voltage cut-offs and can include NTC thermistors for temperature monitoring.
Q4: Can this 3000mAh cell be integrated into a larger battery pack?
A: Yes, the AS606060 is frequently used as a building block for multi-cell configurations (Series/Parallel, such as 2S1P or 1S2P). Our engineering team can design the appropriate BMS to ensure balanced charging and protection for your specific pack assembly.
Q: What industries or devices is this battery best suited for?
A: With its slim profile and high energy density, the AS606060 is widely used in:
Portable Consumer Electronics: Tablets, e-readers, and large-screen handheld devices.
Medical & Healthcare: Portable diagnostic equipment and home-use medical monitors.
Smart Industrial/IoT: Rugged handheld terminals, high-capacity IoT sensors, and portable payment terminals.
Q5: What is the expected cycle life of the AS606060?
A: Under standard charge/discharge operating conditions, the cell is engineered to maintain over 80% of its nominal capacity after 500 charge cycles.
Q6: What are the lead times for this specific model?
A: For standard stock samples, delivery is typically 3–7 working days. For mass production orders, the standard lead time is 20–30 working days, depending on your specific customization requirements (e.g., specialized connectors or PCB designs).
Q7: What is the Minimum Order Quantity (MOQ)?
A: We are flexible with small-batch prototyping. For mass production runs with custom specifications, the standard MOQ is typically 1,000–3,000 units. Please contact our sales team to discuss your project scale.
