Parameters
Norminal Capacity: 2000mAh
Rated Voltage: 3.7V
Weight: 40g
Dimensions (mm): 6*40.5*72.5mm
lmpedance: ≤220mΩ
Standard Charge/Discharge: 0.2C
Max Charge/Discharge: 2000mA 1.1 C
Peak Discharge: 1.0CmA
Charge Temp: 0~+45°C
Discharge Temp: -20~+60°C
| Item |
|
Rating |
Note |
|
1.1
|
Capacity
|
Typical |
2000 mAh |
Temperature: 25±5℃
Charge: 0.2C
Discharge: 0.2C
|
| Minimum |
2000 mAh |
| 1.2 |
Nominal Voltage |
Average 3.7V |
|
|
1.3
|
AC Impedance Resistance
|
≤60mΩ |
Cell |
| ≤220mΩ |
Battery Pack |
| 1.4 |
Discharge Cut-off Voltage
|
3.0V |
|
| 1.5 |
Charge voltage |
4.2V |
Cut-off current≤20mA |
|
1.6
|
Max Charge Continuous
|
2000mA |
+10~+45℃ |
| 1.7 |
Max Discharge Continuous
|
2000mA |
+10~+45℃ |
| 1.8 |
Weight |
|
Approx 40g |
|
| 1.9 |
Cycle Life |
500 cycles |
Capacity≥80% |
| 1.10 |
Shipping Voltage |
3.85-3.95V |
|
|
1.11
|
Operating Temperature
|
Charge
|
0~+45℃ |
Max Charge:400mA |
| +10~+45℃ |
Max Charge:2000mA |
| Discharge |
-20~+60℃ |
Get more than 50% discharge capacity (typical) in -15°C or +55°C. |

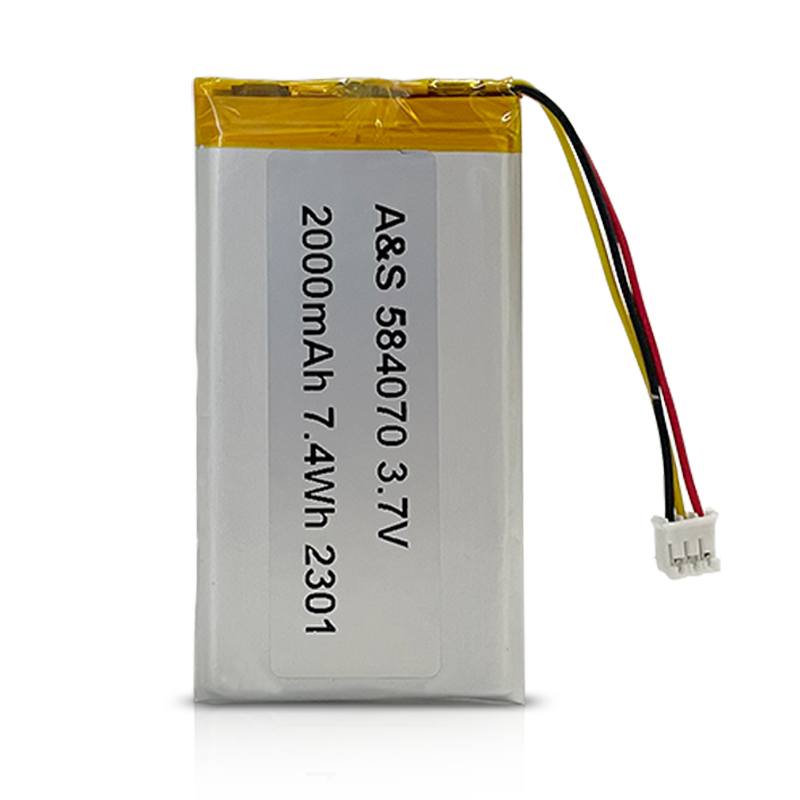

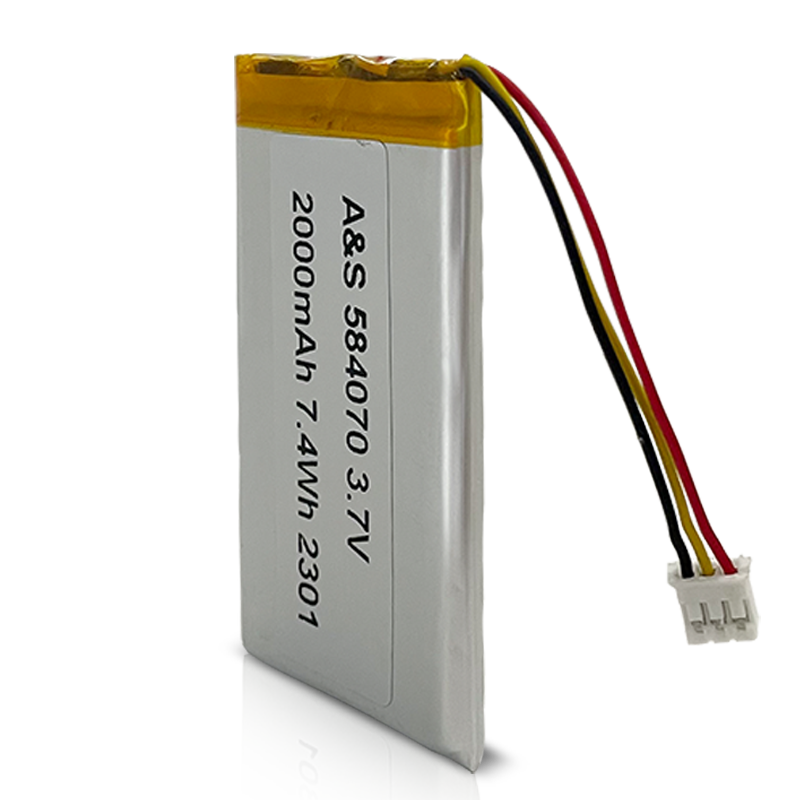

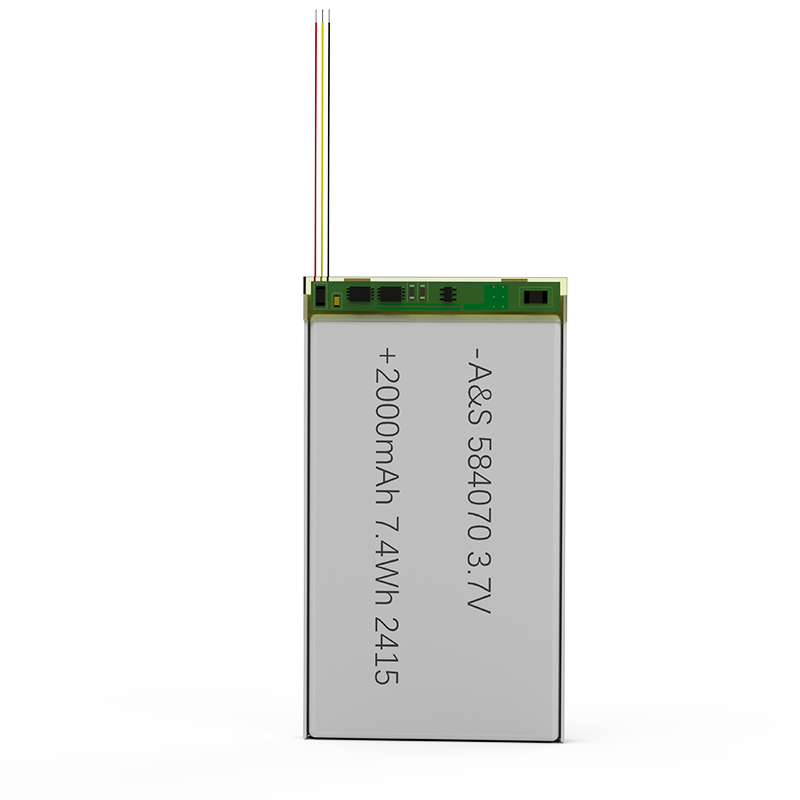

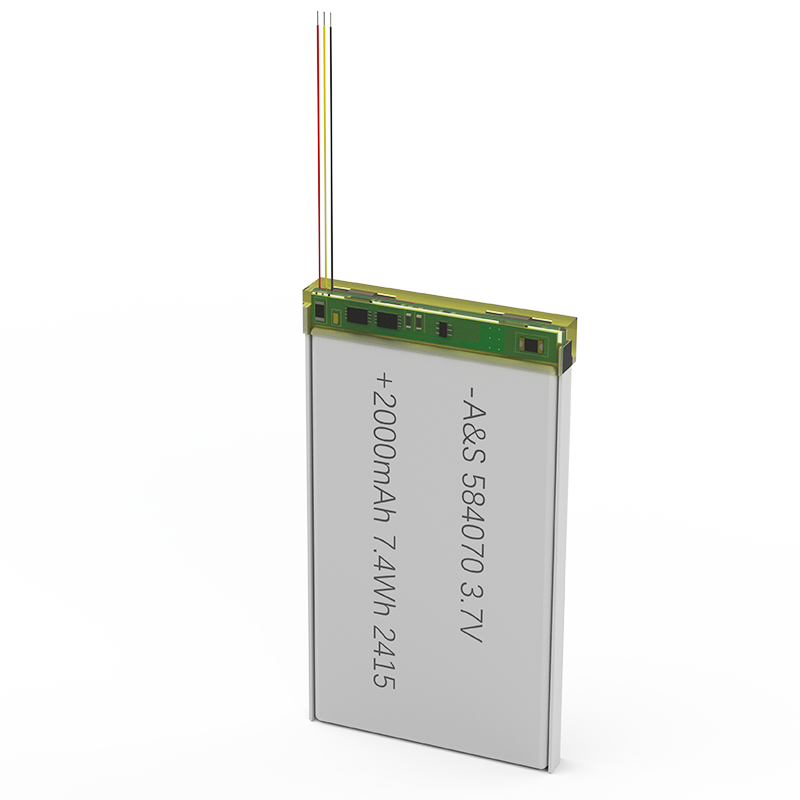

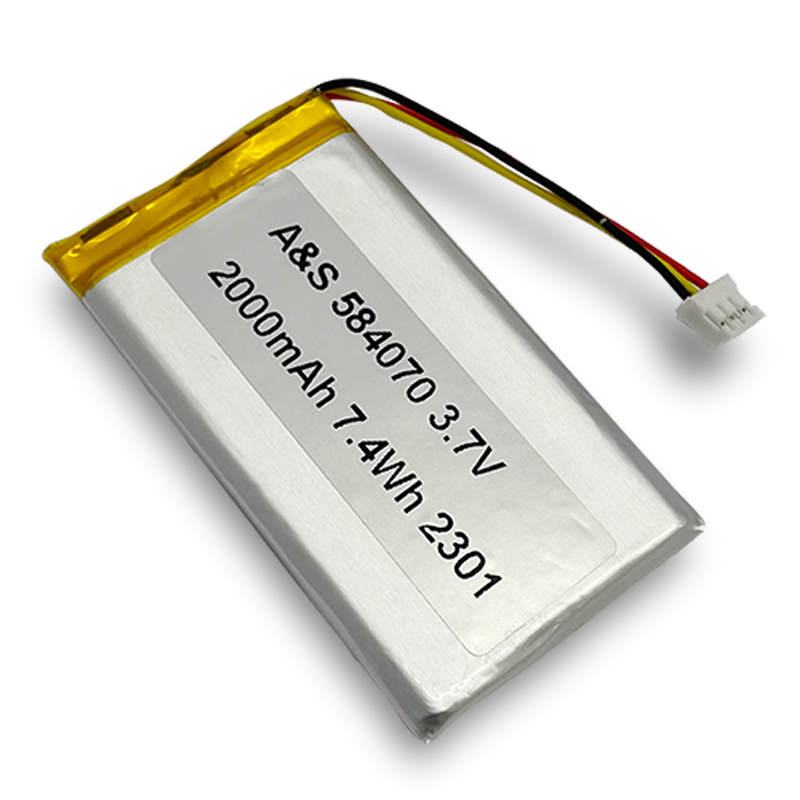

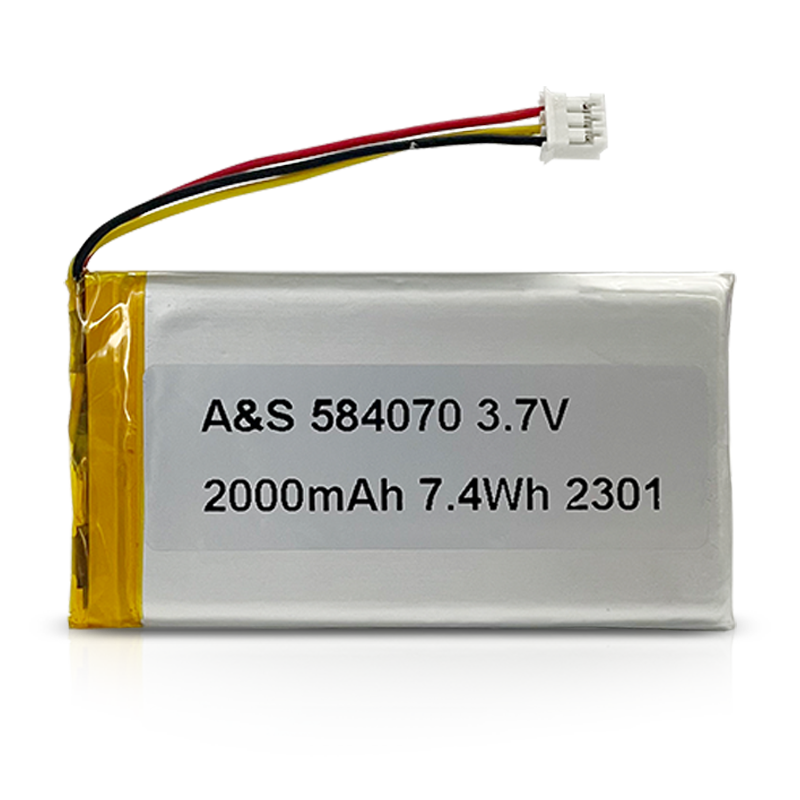

| Model Name: A&S 584070 |
| Overcharge detection voltage: 4.230--4.330V |
| Overdischarge detection voltage: 2.300--2.500V |
| Overcurrent protection current: 2~4.5A |
| NTC:10K,B=3435±1% |
PTC: SMD1206P200SLR |
| IC: DW01 |
|
Specifications

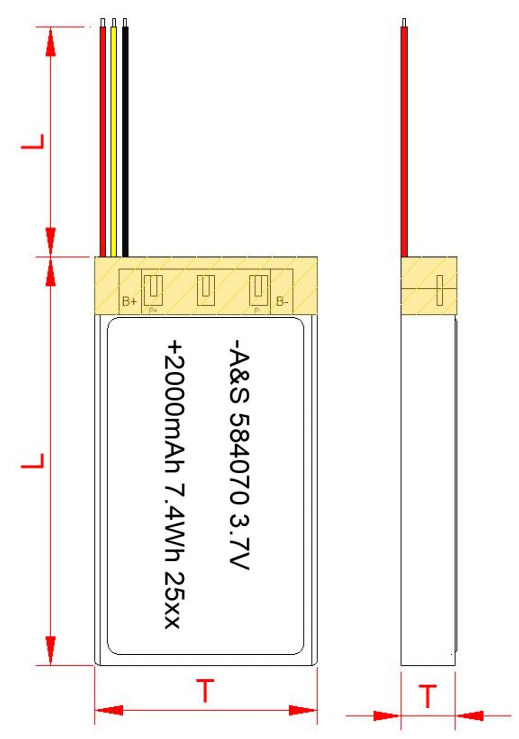

Battery size: 6.0mm × 40.5mm × 72.5mm
Weight: Approx 40g
Electrical Characteristics
Nominal Voltage: Average 3.7V
Charge voltage: 4.2V
Discharge Cut-off Voltage: 3.0V
Typical Capacity
2000 mAh
Product Description：
This lithium polymer battery, with the Art No AS584070, is a high-quality rechargeable Lipo battery, designed to meet the demands of modern technology. With a size of 5.8*40*70mm and a weight of 40g, this battery is compact and lightweight, making it ideal for use in small electronic devices.
The A&S Power 584070 3.7v 2000mAh Rechargeable Lipo Battery is UL, CB, CE, KC, UN38.3, and PSE certified, ensuring it meets the highest safety standards. It boasts excellent discharge performance, making it a reliable and durable power source for your devices.
This battery has a cycle life of over 500 times, meaning it can be recharged and used repeatedly without losing its capacity. Its long cycle life makes it a cost-effective and eco-friendly alternative to traditional batteries.
The A&S Power 584070 3.7v 2000mAh Rechargeable Lipo Battery is specifically designed for use in smartwatches. Its excellent discharge performance ensures that your smartwatch will have a reliable power source, allowing you to stay connected and track your fitness goals throughout the day.
Overall, the A&S Power 584070 3.7v 2000mAh Rechargeable Lipo Battery is an excellent choice for those looking for a reliable and durable power source for their electronic devices. Its compact size, long cycle life, and excellent discharge performance make it a cost-effective and eco-friendly alternative to traditional batteries. With its UL, CB, CE, KC, UN38.3, and PSE certifications, you can trust that this battery meets the highest safety standards, providing you with peace of mind.
Client Background
One of our long-term Korean clients was developing a new POS machine for their important customer. The client stated that the target market covers the globe, meaning the battery must possess multiple international certifications and meet specific capacity and size requirements.
Solution
Considering the client’s needs and aiming for the widespread global application of their device, we suggested adding PTC (Positive Temperature Coefficient) and NTC (Negative Temperature Coefficient) protection configurations. We understood that this would help the client enhance the safety reputation of their POS machine in the global market and facilitate business expansion.
Outcome & Value
The client approved this suggestion. After rigorous sample testing, they ultimately selected our 584070 3.7V 2000mAh battery. We then promptly assisted in initiating the application process for key certifications, including UL2054, CB, KC, CE, PSE, and UN38.3.
This battery, featuring high performance, high safety, and multiple certifications, not only met the client’s technical requirements but also served as a powerful support for their device entering the global market, further solidifying our deep cooperation with the client.
 |
 |
Performance
1 Standard Test Conditions
Test should be conducted with new batteries within one month after shipment from our factory and the cells shall not be cycled more than five times before the test. Unless otherwise defined, test and measurement shall be done under temperature of 25±2℃ and relative humidity of 45~85%. The test results are not affected evidently by such conditions of temperature 15~30℃ or humidity 25~85%RH.5.2 Measuring Instrument or Apparatus.
2 Measuring Instrument or Apparatus
2.1 Dimension Measuring Instrument
The dimension measurement shall be implemented by instruments with equal or more precision scale of 0.01mm.
Custom Lithium Polymer Battery Solutions
1. Support Customized Battery Size:
The Same Battery Capacity We Can Do Different Sizes To Meet Customer Size Limitations;
2. Support Custom Wire And Plug:
Customized Wire And Plug According To Customer’s Use Scenario Requirements;
3. Support Customized Voltage:
We Support Customized Polymer Battery Packs To Meet Customers’ Demand For Battery Voltage And Capacity Through Series And Parallel Batteries;
4. Support Custom PCM Circuit Board:
In Addition To The Standard Overcharge, Overdischarge, Short Circuit Protection, We Also Support Temperature Overheat Protection, Communication Functions And Other Customized Services;
We specialize in providing customized lithium battery solutions for medical devices, GPS trackers, wearables, and more. Our products are known for their reliability, safety, and precision engineering. Whether you need high-capacity or ultra-slim battery packs, our engineering team is ready to help bring your project to life.
Custom Rechargeable Lithium Polymer Battery Manufacturers in China
A&S Power Battery with Terminations, Pins, Tags
Battery is always available with different types of terminations, i.e. PC pins, tabs, solder tabs, leads, wire, cable and connectors. We hope you find the one in our product list and suite you the best. If not, our Customer Service can assist you to find one, or offer custom-made terminations to meet meet your specifications.
Custom Battery Pack
We manufacture custom battery pack assembly for electronic, industry and OEM business for decades. We are proud to serve our customers, some of them are world's most prominent companies, with engineering design, prototype, in-house testing, certifications, and mass-production. Our Customer Service can help for engineering suggestion to meet your specification.
A&S Power Battery Quality Control & Compliance
Check A&S Power Manufacturing site and product compliance.
Safety Handling and Product Design with A&S Power Lithium Battery
Handling Lithium Battery Safely.

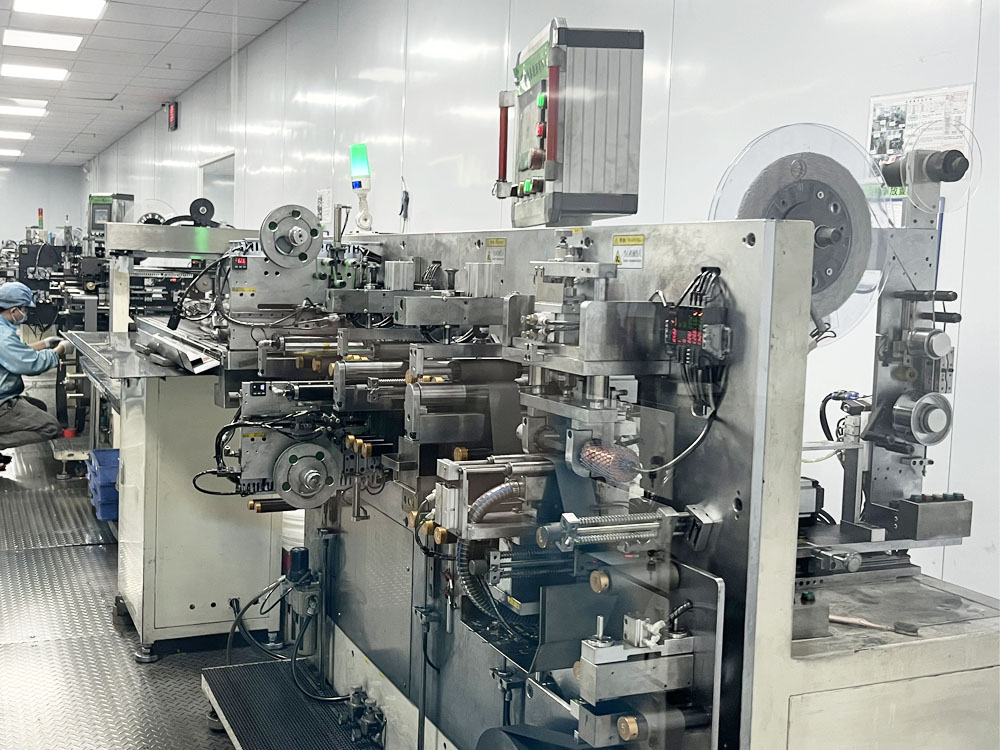

Automatic Rolling Machine

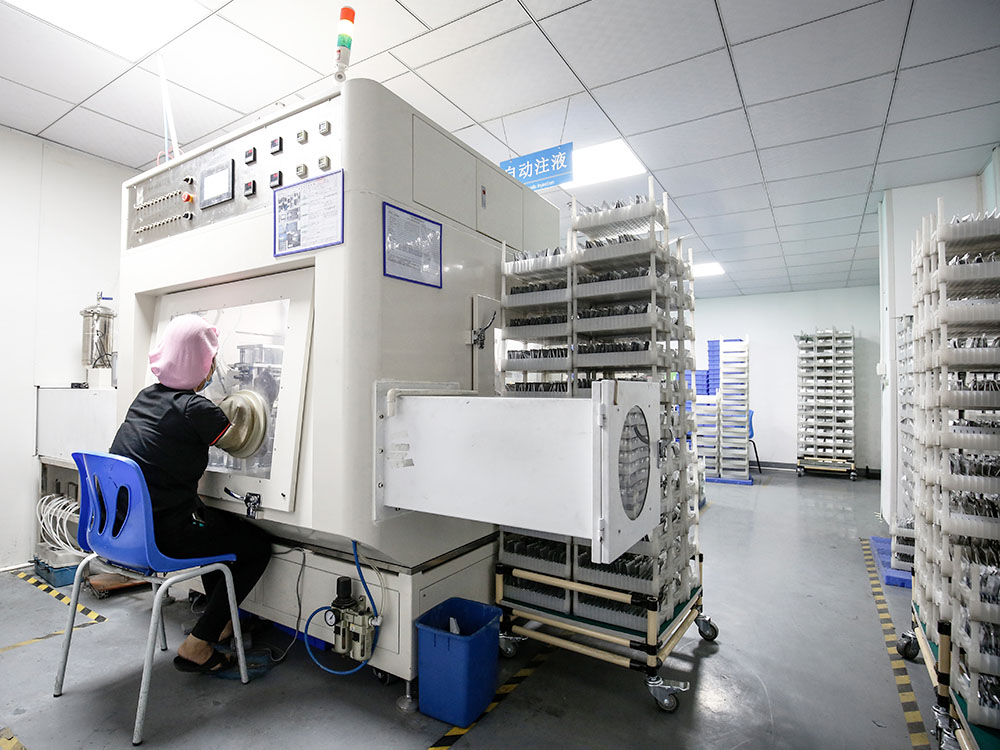

Electrolyte Injecting Machine
Automatic Tape Sticking Machine

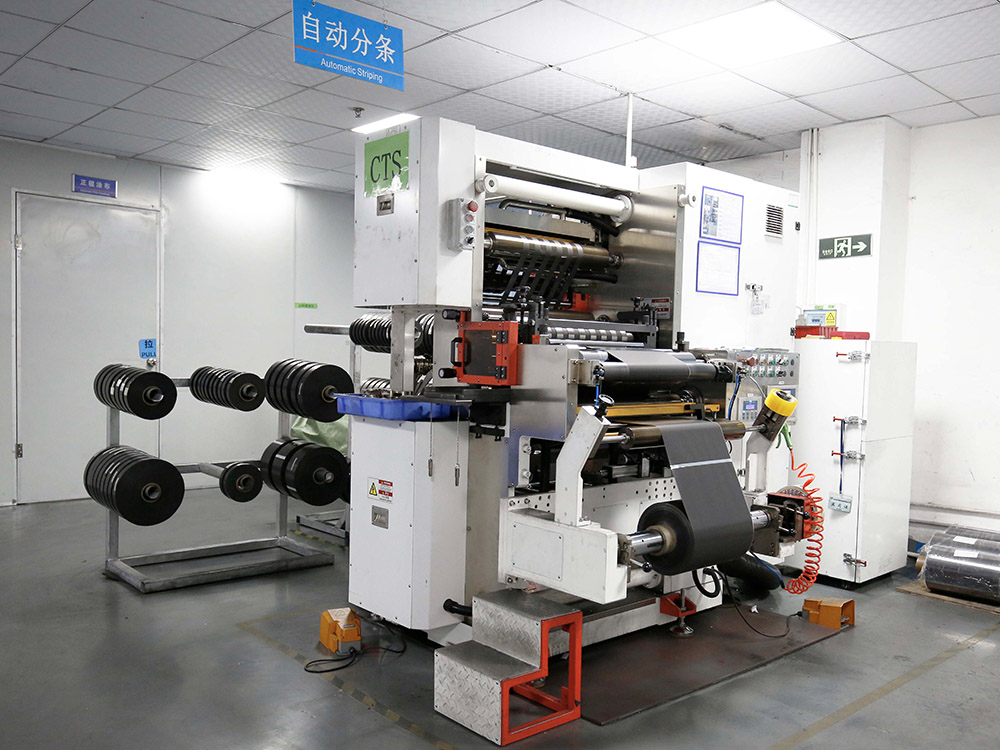

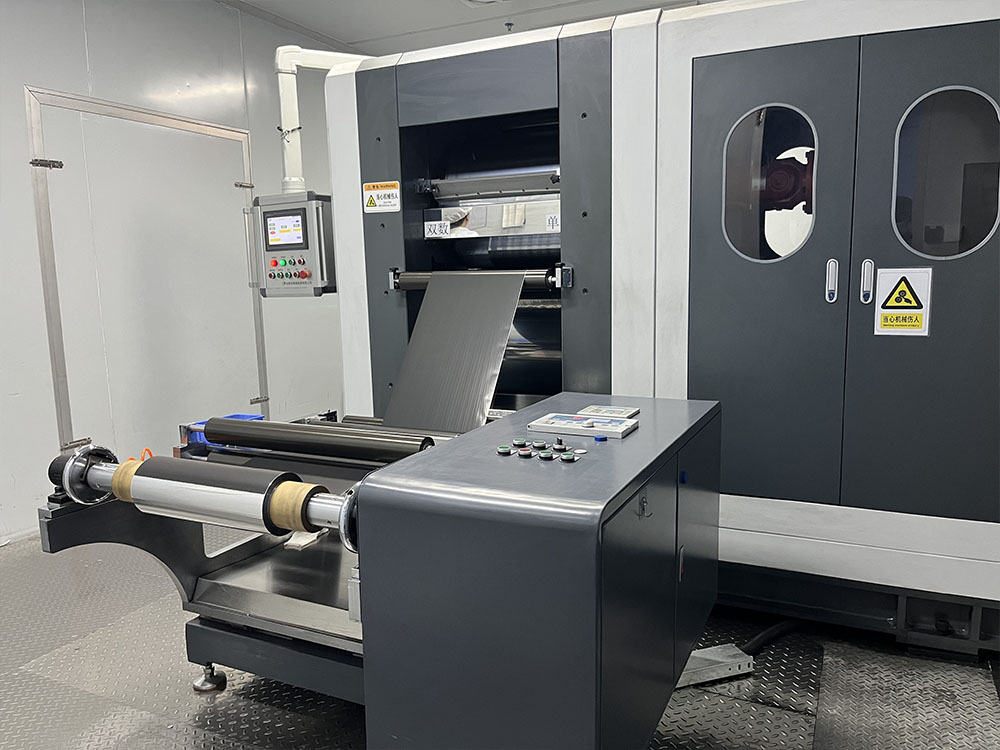

Automatic Slitting Machine
Fully Automatic Tablet Making Machine

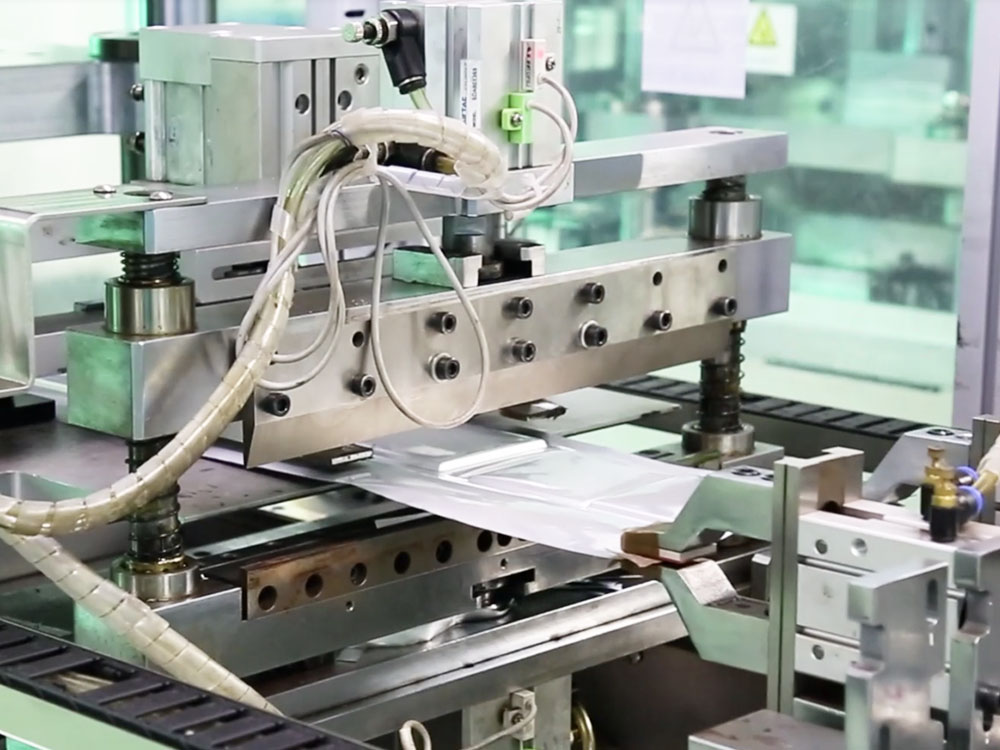

Aluminum-Plastic Film Punching Machine
Ultra High Vacuum Baking Machine
Thermoforming
Partnerships
|
 |
Our Service
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries professional in English of course.
• OEM is highly welcomed. We have strong R&D team here to help.
• Your business relationship with us will be confidential to any third party.
• 1 year warranty of products and good after-sale service offered, please get back if you got question.
Contact Us
Shenzhen A&S Power Technology Co., Ltd
Tel: +86-0755-28169348
Fax:+86-0755-84157385
E-mail: info@szaspower.com
sales@szaspower.com
Address: Rm1312,A Block,Weidonglong Business Building,No.2125 Meilong Rd,Longhua,Shenzhen,Guangdong,518109,CHINA
Our website lists just some of the products we have successfully supplied,but please note this is just representative and an example of our products&service,so,if you cannot see the product you are looking for, please contact us today!!!
Frequently Asked Questions (FAQ)
1. What certifications does the AS584070 3.7V 2000mAh LiPo battery have?
The AS584070 lithium polymer battery is certified to multiple international safety and transportation standards, including UL1642, UL2054, IEC 62133 (CB), CE, KC, PSE, and UN38.3. These certifications help manufacturers simplify product compliance and support global market distribution.
2. Is the AS584070 battery suitable for medical devices?
Yes. The AS584070 rechargeable LiPo battery is suitable for portable medical devices that require a compact size, stable power output, and certified safety performance. It is commonly used in patient monitoring equipment, portable diagnostic devices, healthcare electronics, and other battery-powered medical applications.
3. Can the AS584070 battery be customized for OEM projects?
Absolutely. A&S Power provides OEM and ODM battery customization services, including connector selection, wire length customization, protection circuit integration (PCM/BMS), NTC temperature sensors, custom labels, and battery pack assembly based on your product requirements.
4. What applications commonly use a 3.7V 2000mAh lithium polymer battery?
The AS584070 battery is widely used in medical devices, GPS trackers, POS terminals, portable printers, smart wearables, IoT products, industrial handheld devices, and various consumer electronics requiring a lightweight rechargeable power source.
5. Does the AS584070 battery include built-in safety protection?
The battery can be supplied with a protection circuit module (PCM) that provides overcharge, over-discharge, over-current, and short-circuit protection. Additional safety components such as NTC sensors can also be integrated according to customer requirements.
6. Can this LiPo battery be shipped internationally?
Yes. The AS584070 battery has passed UN38.3 transportation testing, making it suitable for international shipment by air, sea, and ground transportation when packaged according to applicable regulations.
7. Why choose A&S Power as your lithium battery supplier?
A&S Power offers certified lithium battery solutions backed by years of manufacturing experience, strict quality control, OEM/ODM customization capabilities, and international certifications. We support customers from prototype development through mass production for medical, industrial, and consumer electronic applications.
8. How can I request a quotation for the AS584070 battery?
Simply provide your required quantity, application details, connector requirements, wire specifications, and any certification needs. Our engineering and sales teams will recommend the most suitable battery solution and provide a customized quotation.
