You can understand the difference between Ternary Lithium battery and LiFePo4 battery by examining their technical characteristics. The difference between Ternary Lithium battery and LiFePo4 battery starts with their cathode materials: Ternary Lithium batteries use nickel, cobalt, and manganese or aluminum, while LiFePo4 batteries use lithium iron phosphate. This difference between Ternary Lithium battery and LiFePo4 battery affects energy density, safety, and cycle life. LiFePo4 batteries currently hold 66% of the global market share, reflecting their greater stability and lower cost. For a quick overview of the difference between Ternary Lithium battery and LiFePo4 battery, see the table below:

Key Takeaways

• Ternary Lithium batteries have more energy in a small space. They are good for things that need to be small and strong. Electric cars and portable electronics use them a lot.
• LiFePO4 batteries are safer and last longer. They are good when safety and long life are very important. People use them for storing renewable energy and in medical devices.
• When picking a battery, use Ternary Lithium if you need fast charging and lots of power. LiFePO4 is better if you want to save money and use it for a long time.
• Ternary Lithium batteries work in very hot or cold places. LiFePO4 batteries work best when it is not too hot or cold. Pick the battery that fits where you will use it.

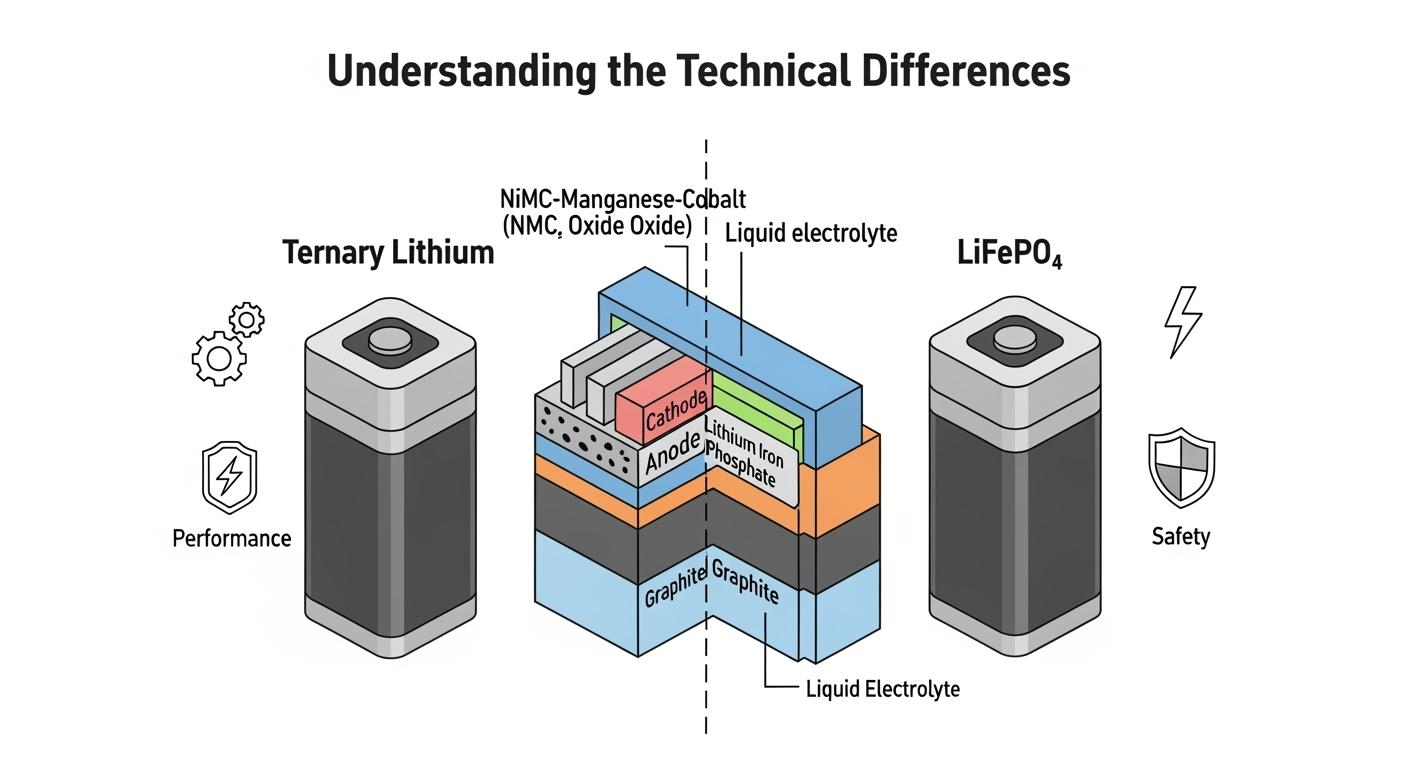

Battery Chemistry and Materials

Ternary Lithium-Ion Battery Composition

A ternary lithium-ion battery uses nickel, cobalt, and manganese. Sometimes, aluminum replaces manganese. These materials help the battery hold more energy. The battery can store lots of power in a small space. Look at the table to see the main parts:

The anode has graphite carbon. This setup lets the battery charge quickly. It also gives high power. That is why people use it in electric cars and gadgets.

LiFePO4 Battery Structure

A lifepo4 battery uses lithium iron phosphate for the cathode. The anode is graphite carbon too. This mix makes the battery very stable when hot. It also lasts a long time. Check the table to see the differences:

A lifepo4 battery is very safe. It does not get too hot. It almost never catches fire, even if stressed.

Packaging and Conductivity

These batteries have different packaging and conductivity. Ternary lithium-ion batteries use soft pouch or round shapes. This makes them lighter and helps them store more energy. Lifepo4 batteries are often prismatic or round. This gives them strong cases.

Ternary lithium batteries conduct electricity better. They charge faster and give more power. Lifepo4 batteries are safer but conduct less. They charge slower. Their stable chemistry makes them good for safe and long-lasting jobs.

Tip: Pick a ternary lithium-ion battery for strong power. Choose a lifepo4 battery for safety and long life.

Energy Density and Performance

The Difference Between Ternary Lithium Battery and LiFePO4 Battery Energy Density

It is important to know how these batteries store energy. Energy density means how much energy fits in each kilogram. Ternary lithium batteries have high energy density. They give more power in smaller, lighter batteries. LiFePO4 batteries have lower energy density. They are bigger and heavier for the same energy.

Here is a table with energy density values:

Ternary lithium batteries have higher energy density. This makes them good for electric cars and small gadgets. Pick ternary lithium batteries if you want small size and lots of power. LiFePO4 batteries are better when size and weight do not matter much.

Note: High energy density saves space and weight. It can also change safety and battery life.

Cycle Life and Durability

Cycle life means how many times you can use and recharge a battery. The difference between ternary lithium and LiFePO4 batteries is clear here. LiFePO4 batteries last much longer. You get more cycles and better strength with LiFePO4.

Here is a table with average cycle life:

LiFePO4 batteries keep 80% of their power after 1,600 cycles. Ternary lithium batteries lose power faster. You can see the difference in how long they last:

LiFePO4 batteries are best for jobs that need long life and steady power. Ternary lithium batteries are good when you want high energy density and do not need long life.

Charging Speed Comparison

Charging speed tells you how fast a battery fills up. Ternary lithium batteries charge faster than LiFePO4 batteries. They have a higher constant current ratio. You wait less time for a full charge.

Here is a table with charging speed:

Ternary lithium batteries charge quickly. This is good for devices and cars that need fast charging. LiFePO4 batteries charge slower. They are safer and last longer.

• Ternary lithium batteries: Charge fast, high energy density, shorter life.
• LiFePO4 batteries: Charge slow, lower energy density, longer life.

Tip: Pick ternary lithium batteries for quick charging and lots of power. Choose LiFePO4 batteries for long life and steady power.

Safety and Cost Factors

Safety of Ternary Lithium Batteries

It is important to know the safety risks of ternary lithium batteries. These batteries can catch fire or explode if they get too hot. Overcharging can also make them dangerous. The thermal runaway temperature is only 120-140°C. This means a short circuit or damage can cause big problems fast. Here are some main safety risks:

• Fires or explosions can happen if the battery overheats or shorts.
• Charging too much may cause the battery to catch fire again.
• Big energy storage plants have had accidents with these batteries.
• There have been over 70 thermal runaway cases worldwide lately.
• Battery recalls and fires have made people worry about electric cars.

You should always check the safety features of ternary lithium batteries. This is very important for high-power uses.

LiFePO4 Battery Safety Profile

LiFePO4 batteries are much safer for you. Their crystal structure is very strong. The P–O bond does not break easily. This stops fast oxygen release and lowers fire risk. The decomposition temperature is above 700°C. This helps the battery avoid thermal runaway. Look at the table below to see the difference:

LiFePO4 batteries almost never catch fire, even in tough situations. Makers like lifepo4 for electric cars because it is safer. These batteries do not explode or burn in crashes or short circuits. You can trust lifepo4 batteries to keep you safe.

Note: LiFePO4 batteries have great thermal and chemical stability. They are good for places with high heat.

Cost Comparison

You need to think about both making costs and materials when picking batteries. Ternary lithium batteries use metals like nickel and cobalt. These metals cost more money. LiFePO4 batteries use iron and phosphorus. These are easy to find and cheaper. The table below shows the cost per kWh:

Ternary lithium batteries cost about 1.1 yuan/Wh. Lifepo4 batteries cost around 0.9 yuan/Wh. Lifepo4 batteries save you money because their materials are cheap. If you want a battery that costs less and is safer, lifepo4 is the best pick.

Tip: Pick LiFePO4 batteries for safer use and lower cost. They are great for big or long-term projects.

Temperature Performance and Applications

Low and High Temperature Performance

You should think about how batteries work in different temperatures. Ternary lithium batteries work well from -30°C to 60°C. Some can even go up to 80°C. This makes them good for outdoor use and tough weather. You get steady power in cold and hot places. Their high energy density helps them keep working well. They also have good thermal resistance.

LiFePO4 batteries have problems below 0°C. The positive electrode does not conduct well in cold. This lowers the battery’s power. The electrolyte can freeze and get thick. This makes it hard for ions to move. Charging gets slower and you get less power in winter. Using nanosized electrode material helps with cold weather. You can get up to 94% discharge at -20°C. At temperatures above 60°C, both batteries lose power. You get about 75% of normal power in heat. Charging drops to 70% compared to room temperature.

Tip: Pick ternary lithium batteries for very cold or hot places. LiFePO4 batteries are good for mild weather.

Application Suitability for Lithium Iron Phosphate Battery

LiFePO4 batteries are used in many industries. They are safe and last a long time. They are great for electric vehicles like buses and trucks. Entry-level cars use them too. You can use them for storing energy at home or work. LiFePO4 batteries power laptops, tablets, and power banks. They last longer and are safer. Boats and RVs use them because they handle deep discharge and tough jobs. Medical devices and telecom systems trust LiFePO4 for backup power.

Best Uses for Ternary Lithium Batteries

Ternary lithium batteries are best for jobs needing lots of power and fast charging. Electric vehicles use them for longer trips and quick charging. Phones, tablets, and laptops use them for small size and strong power. These batteries work well in very hot or cold places. They are good for outdoor gear and industrial tools. Their strong performance makes them great for hard jobs.

• Electric vehicles that need to go far
• Smartphones, tablets, and laptops
• Outdoor gear for tough weather
• Industrial tools that need lots of power

Note: Ternary lithium batteries give you strong power and work in many places. LiFePO4 batteries are safe and reliable for steady use.

You can tell ternary lithium and lifepo4 batteries apart in four ways. These are energy density, safety, cost, and lifespan. Ternary lithium batteries have more energy density. They also charge faster. This makes them good for things that need strong power. Lifepo4 batteries last longer. They are safer and cost less money. Look at the table to help you decide:

Pick ternary lithium batteries if you want long range or quick charging. Choose lifepo4 batteries for safe, cheap, and long-lasting use.

FAQ

What makes LiFePO4 batteries safer than ternary lithium batteries?

LiFePO4 batteries have a strong crystal structure. This helps them resist heat and lowers fire risk. Ternary lithium batteries can get hot fast. LiFePO4 batteries are safer in most places.

Can you use ternary lithium batteries in cold weather?

Ternary lithium batteries work well in cold weather. They can handle temperatures from -30°C to 60°C. LiFePO4 batteries lose power when it is below 0°C. Ternary lithium batteries perform better in winter.

How long does a LiFePO4 battery last compared to a ternary lithium battery?

LiFePO4 batteries last longer than ternary lithium batteries. You need to replace ternary lithium batteries sooner.

Which battery charges faster?

Ternary lithium batteries fill up faster. You wait less time for charging. LiFePO4 batteries take longer to charge but are safer and last longer.

Are LiFePO4 batteries more affordable than ternary lithium batteries?

LiFePO4 batteries cost less money. They use iron and phosphate, which are cheap. Ternary lithium batteries cost more because they use nickel and cobalt.
