You encounter several key categories that influence the discharge capacity of a lithium ion battery. These include battery consistency, charging method, discharge rate, and temperature effects. If you optimize these factors, you can extend battery lifespan and improve performance.

Temperature and discharge rate directly affect capacity decline, making accurate prediction essential for reliable operation.

Key Takeaways

• Optimize battery materials and design to enhance discharge capacity and longevity. Choose the right cathode and anode materials for better performance.
• Manage temperature carefully. Keep your battery within recommended ranges to prevent damage and extend lifespan.
• Monitor discharge rates. Avoid high discharge rates unless necessary, as they can reduce capacity and accelerate degradation.
• Store your battery at partial charge in a cool environment. This practice helps maintain performance and reduces capacity loss over time.
• Use quality manufacturing and cell balancing systems. These ensure consistent performance and reliability in your battery pack.

Cell Materials and Design

The materials and design of each cell in your battery pack play a critical role in determining how much energy you can draw from your lithium ion battery. By understanding the impact of cathode and anode materials, particle size, electrode density, and manufacturing quality, you can make informed choices that boost both discharge capacity and overall battery performance.

Cathode and Anode Materials

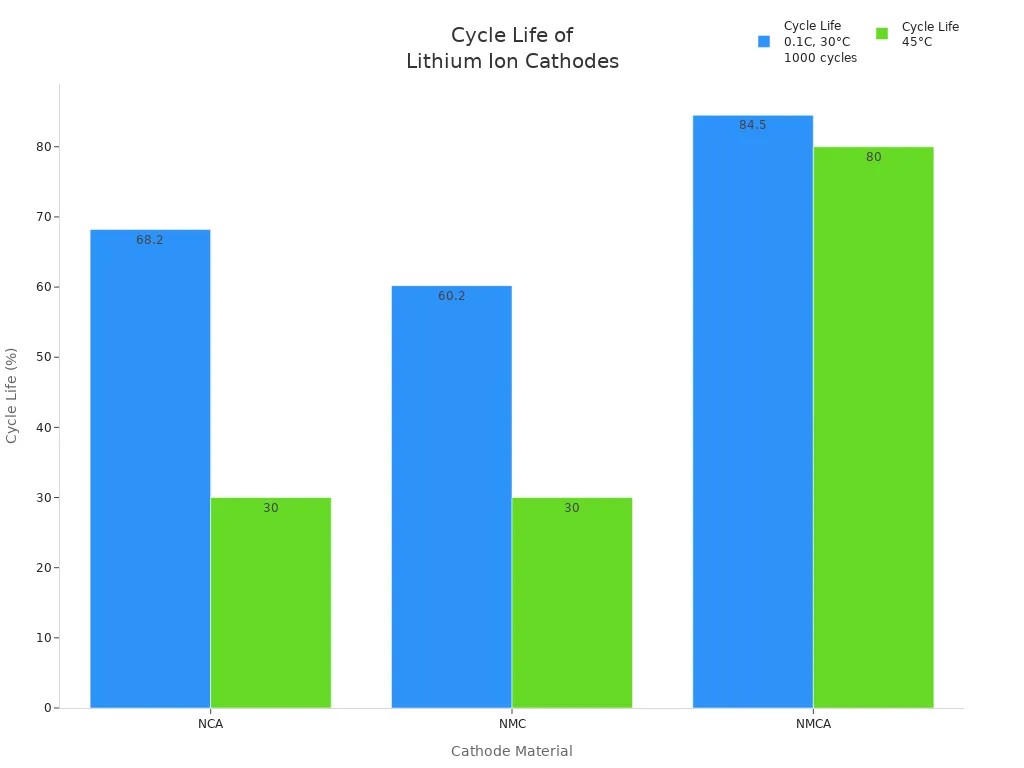

The selection of cathode and anode materials directly affects the discharge capacity and longevity of your battery. Different cathode chemistries, such as NCA, NMC, and NMCA, offer unique trade-offs in terms of capacity, cycle life, and stability. The table below compares key properties of these cathode materials:

You also need to consider the anode material. Graphite remains the most common choice for lithium ion battery packs due to its long cycle life and high efficiency. Silicon anodes, while offering much higher specific capacity, tend to suffer from rapid degradation and volume changes during cycling. The following tables highlight the differences:

Tip: If you want a battery with high discharge capacity and long life, balance your choice of cathode and anode materials. Consider not just the initial capacity, but also how well the materials retain capacity over many cycles.

Particle Size and Electrode Density

Particle size in the electrode materials influences how quickly lithium ions can move during charge and discharge. Smaller particles create shorter paths for lithium ions, which speeds up the lithiation process and improves rate performance. When you combine both large and small particles, you enhance lithium-ion transport efficiency compared to using only large particles. The variation in particle size, known as the standard deviation, also matters. An optimal range of particle sizes can boost both diffusion and discharge rate.

Electrode density, or how tightly the particles are packed, also affects the discharge capacity. Thicker electrodes can store more energy, but if you make them too dense or thick, you risk losing capacity due to poor lithium ion movement. The table below shows how electrode thickness impacts discharge:

Note: For optimal battery performance, aim for a balance between electrode thickness and particle size. Too much density can block lithium ion movement, while too little reduces the total capacity your battery can store.

Cell Manufacturing Quality

Manufacturing quality has a direct impact on the reliability and discharge capacity of your lithium ion battery. High-quality manufacturing ensures consistent state of charge, low internal resistance, and predictable cycle life. The table below summarizes key manufacturing metrics:

Defects or inconsistencies during manufacturing can lead to several types of failures, such as open-circuit or short-circuit faults, latent defects, and mechanical imperfections. Even small issues like separator pinholes or electrode misalignment can reduce the discharge capacity and reliability of your battery pack.

Alert: Always choose battery packs from reputable manufacturers. High-quality production processes reduce the risk of defects and ensure your battery delivers consistent discharge capacity throughout its life.

By paying close attention to cell materials, particle size, electrode density, and manufacturing quality, you can maximize the discharge capacity and reliability of your lithium ion battery pack. These factors form the foundation for strong battery performance and long-term energy storage.

Operating Conditions and Discharge Capacity

The way you use and manage your lithium ion battery directly affects how much energy you can draw from it. Three main factors—temperature, discharge rate, and depth of discharge—play a critical role in determining the discharge capacity and overall battery performance. By understanding these operating conditions, you can make better decisions to extend the life and reliability of your battery pack.

Temperature Effects on Battery

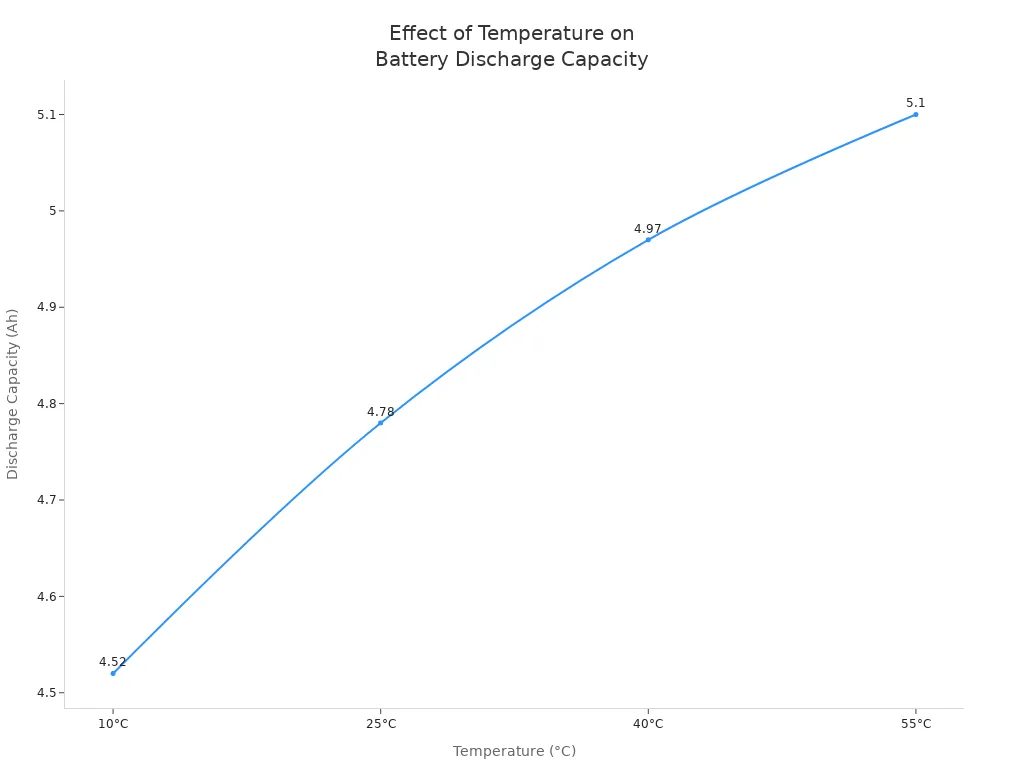

Temperature has a powerful influence on the discharge capacity of your lithium ion battery. As the temperature rises, the chemical reactions inside the battery become more efficient, allowing you to access more of the stored energy. The table below shows how discharge capacity changes with temperature:

You can see that higher temperatures boost discharge capacity. However, you should not assume that hotter is always better. High temperatures speed up battery aging and increase the risk of thermal runaway, which can cause dangerous failures. Every 10°C increase above 25°C doubles the rate of battery degradation. If you expose your battery to extreme heat for long periods, you may cut its lifespan in half. On the other hand, very low temperatures can cause lithium plating, which leads to permanent capacity loss and safety risks.

Tip: Keep your battery pack within the recommended temperature range. Use thermal management systems or avoid leaving your battery in hot or freezing environments to protect both capacity and safety.

Discharge Rate (C-rate)

The discharge rate, often called the C-rate, tells you how quickly you draw energy from your battery. A higher discharge rate means you use the battery’s energy faster. This can be useful for high-power applications, but it comes with trade-offs.

• When you increase the discharge rate, the internal resistance of the battery rises. This resistance causes more heat and reduces the available discharge capacity.
• At a discharge rate of 5 C, your battery can deliver a maximum capacity of 1.9708 Ah. If you push the rate to 11 C, the capacity drops to 1.9108 Ah. This shows that a high discharge rate slightly lowers the total energy you can use.
• The voltage curve also shifts at higher discharge rates. You will notice lower voltages for the same amount of energy discharged, which can affect device performance.

If you use a high discharge rate often, you will see faster battery degradation over time. Heat builds up inside the cell, which speeds up wear and reduces the number of cycles your battery can complete. However, most of the long-term damage comes from high temperatures and high states of charge, not just from cycling at high rates.

Alert: Avoid using your battery at a high discharge rate unless necessary. If you need bursts of power, make sure your battery pack has proper cooling and is not already at a high state of charge.

Depth of Discharge

Depth of discharge (DoD) measures how much of your battery’s total energy you use during each cycle. A higher DoD means you drain more energy before recharging. This factor has a direct impact on how long your battery will last.

• If you use a high depth of discharge, your battery will degrade faster and lose capacity more quickly.
• Each time you cycle your battery, you lose a small amount of capacity. The more energy you use per cycle, the faster this loss adds up.
• A high DoD accelerates wear and reduces the total number of cycles your battery can complete before it needs replacement.
• Keeping the DoD lower can significantly extend the lifespan of your battery pack.

Note: For longer battery life, try to avoid deep discharges. Recharge your battery before it drops too low, and use only the energy you need.

By managing temperature, discharge rate, and depth of discharge, you can maximize the discharge capacity and performance of your lithium ion battery. These operating conditions are just as important as the materials and design of your battery pack. Pay attention to them, and you will get the most out of your battery investment.

Battery Pack Configuration

Series and Parallel Connections

You can control the voltage and capacity of your battery pack by arranging cells in series or parallel. When you connect cells in series, you add their voltages together. This setup gives your battery pack a higher voltage, but the capacity stays the same as a single cell. In contrast, connecting cells in parallel increases the total capacity by adding up the ampere-hours of each cell, while the voltage remains unchanged. Many devices, such as laptops, use a mix of both series and parallel connections to achieve the right balance of voltage and capacity.

• In series, you get higher voltage but the same capacity.
• In parallel, you get higher capacity but the same voltage.

The way you configure your battery pack affects not only the discharge capacity but also the reliability and lifespan. Studies show that uniform aging among cells is important. If one cell degrades faster, it can limit the overall performance of the pack. As your battery ages, the distribution of capacity among cells can shift, which impacts how much energy you can draw at a given discharge rate.

Tip: Choose your configuration based on your device’s voltage and energy needs. Always match cells with similar age and capacity to avoid weak links in your battery pack.

Cell Balancing Systems

Cell balancing systems help you maintain optimal discharge and extend the life of your lithium ion battery. Without balancing, some cells may overcharge or over-discharge, leading to reduced capacity and possible safety risks. You can use two main types of balancing systems: passive and active.

Passive balancing uses resistors to burn off extra energy from stronger cells. This method is simple and cost-effective for small battery packs. Active balancing moves energy from stronger cells to weaker ones, which improves efficiency and is better for large or high-performance packs. However, active systems require more complex circuits and careful control.

Note: For most consumer devices, passive balancing works well. For electric vehicles or large energy storage systems, active balancing can help you get the most out of your battery pack’s discharge capacity.

Aging and Degradation Factors

As your lithium ion battery pack ages, you will notice a steady decline in discharge capacity. This happens because of two main processes: cycle life degradation and calendar aging. Both processes affect how much energy you can draw from your battery and how long your pack will last.

Cycle Life and Calendar Aging

Cycle life describes how many times you can charge and discharge your battery before its capacity drops below a useful level. Each cycle causes a small loss of active material and lithium inventory. Over time, this loss leads to a significant drop in discharge capacity. You will see your battery deliver less energy with each cycle, which impacts the overall performance of your battery pack.

Calendar aging happens even when you do not use your battery. Several factors influence this process:

• Calendar aging occurs during storage, influenced by factors such as state of charge (SOC), temperature, and duration of storage.
• High temperatures exacerbate degradation in lithium-ion batteries.
• All tested lithium-ion chemistries (NMC, NCA, LTO, LCO, LFP) experience calendar aging, leading to decreased capacity and increased resistance.

If you store your battery at high temperatures or high SOC, you will see faster capacity loss. Even when you do not use your pack, these conditions can shorten its useful life.

Tip: Store your battery pack in a cool, dry place and avoid keeping it fully charged for long periods. This helps slow down both cycle life and calendar aging.

Internal Resistance Growth

As your battery ages, internal resistance increases. This change limits how much power your battery can deliver instantly and reduces its discharge capacity. The table below shows how internal resistance affects battery performance:

You will see the highest internal resistance when your battery is empty or stored at low temperatures. As the battery ages, the solid electrolyte interphase (SEI) grows, and cracks form in the anode. These changes make it harder for lithium ions to move, which leads to a non-linear drop in capacity and discharge performance.

Alert: Monitor your battery pack for signs of increased resistance, such as reduced run time or slower charging. Early action can help you maintain discharge capacity and extend the life of your battery.

External and Usage Influences

Mechanical Stress and Vibration

You may not realize how much mechanical stress and vibration can affect your battery. When your lithium ion battery experiences vibration during operation, it can cause internal changes. These changes include cracking in the electrode materials and detachment of active substances. As a result, the battery loses mechanical stability and its long-term performance drops. Vibration can also disrupt the even spread of the electrolyte, which impacts cycling stability.

If you use your battery pack in environments with frequent movement, such as in vehicles or industrial equipment, you should monitor for early signs of capacity loss. Even a small increase in internal resistance can reduce discharge efficiency and affect safety.

Environmental Exposure

Environmental factors like humidity and dust can have a major impact on your battery. Moisture control is essential during production and use. Excessive moisture damages the SEI film, which increases internal resistance and reduces discharge capacity over time. Poor moisture management can also shorten the cycle life and overall lifespan of your battery.

• Moisture can cause performance defects if not controlled during production.
• High humidity leads to increased internal resistance and lower capacity.
• A stable electrochemical performance is only possible at low dew points.

You should always store and operate your battery in a dry, clean environment to maintain optimal performance.

Charging and Storage Practices

How you charge and store your battery has a direct effect on its discharge capacity and lifespan. Fast charging may seem convenient, but it accelerates capacity loss and speeds up degradation. For example, raising the charge rate from 1C to 1.5C can cut battery lifetime by half, while a 2C rate can reduce it by 80%. Fast discharging can also cause up to 30% energy loss, which lowers usable energy and overall performance.

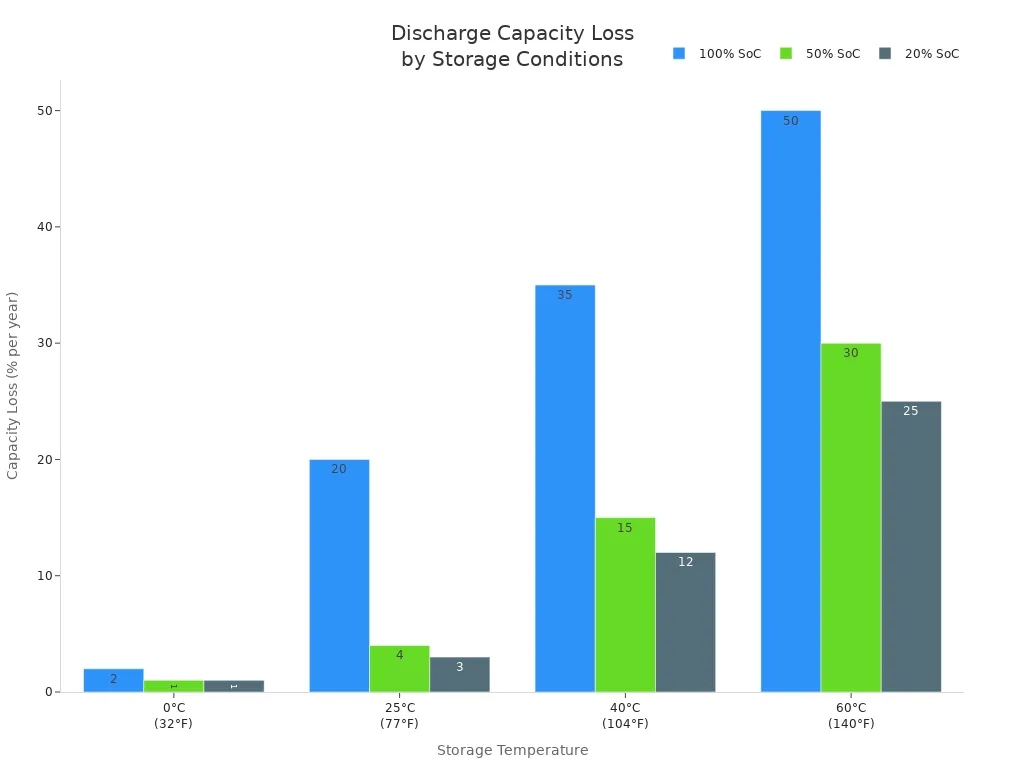

Proper storage is just as important. If you store your battery at high temperatures or at full charge, you will see much faster capacity loss. The table below shows how storage temperature and state of charge affect capacity retention:

You can reduce capacity loss by storing your battery at a partial charge (40-60%) and in a cool place. These practices help you maintain discharge performance and extend the life of your battery pack.

You can maximize discharge capacity and battery performance by focusing on several key factors.

• Manage temperature to prevent lithium plating and electrode damage.
• Optimize depth of discharge, as shallower cycling extends battery life and reduces replacement costs.
• Use manufacturer-recommended chargers and keep discharge rates low to protect capacity.
• Store your battery pack at partial charge in a cool place.
• Monitor state of health and use battery management systems for safety and predictive maintenance.
