A soft pack lithium ion battery uses a flexible polymer shell, which gives you a lightweight and adaptable power source. You benefit from a design that stores energy through lithium ions moving between the battery’s electrodes. When you need power, the battery releases energy by reversing this process. The flexible casing also improves safety and reduces bulk, making it ideal for modern portable devices.

Key Takeaways

• Soft pack lithium-ion batteries are lightweight and flexible, making them ideal for portable devices.
• The flexible polymer shell enhances safety by reducing the risk of leaks and explosions.
• These batteries offer higher energy density, allowing for more power in a smaller size.
• Proper handling and storage, such as keeping batteries at 40-60% charge, can extend their lifespan.
• Soft pack batteries are used in various applications, including smartphones, electric vehicles, and home energy systems.

Soft Pack Lithium Ion Battery Structure

Aluminium-Plastic Film and Polymer Shell

You will notice that a soft pack lithium ion battery uses an aluminium-plastic film as its outer shell. This flexible polymer shell sets it apart from traditional battery designs. The thickness of the aluminium-plastic film plays a crucial role in both safety and weight.

• Thicker aluminium-plastic film improves the barrier properties. It prevents moisture and oxygen from entering the battery, which helps maintain performance and extends the lifespan.
• However, increased thickness adds to the overall weight. This factor becomes important when you need a lightweight solution for portable devices.

The polymer shell not only reduces the battery’s weight but also enhances its safety. You benefit from a design that resists punctures and swelling, which lowers the risk of leaks or explosions.

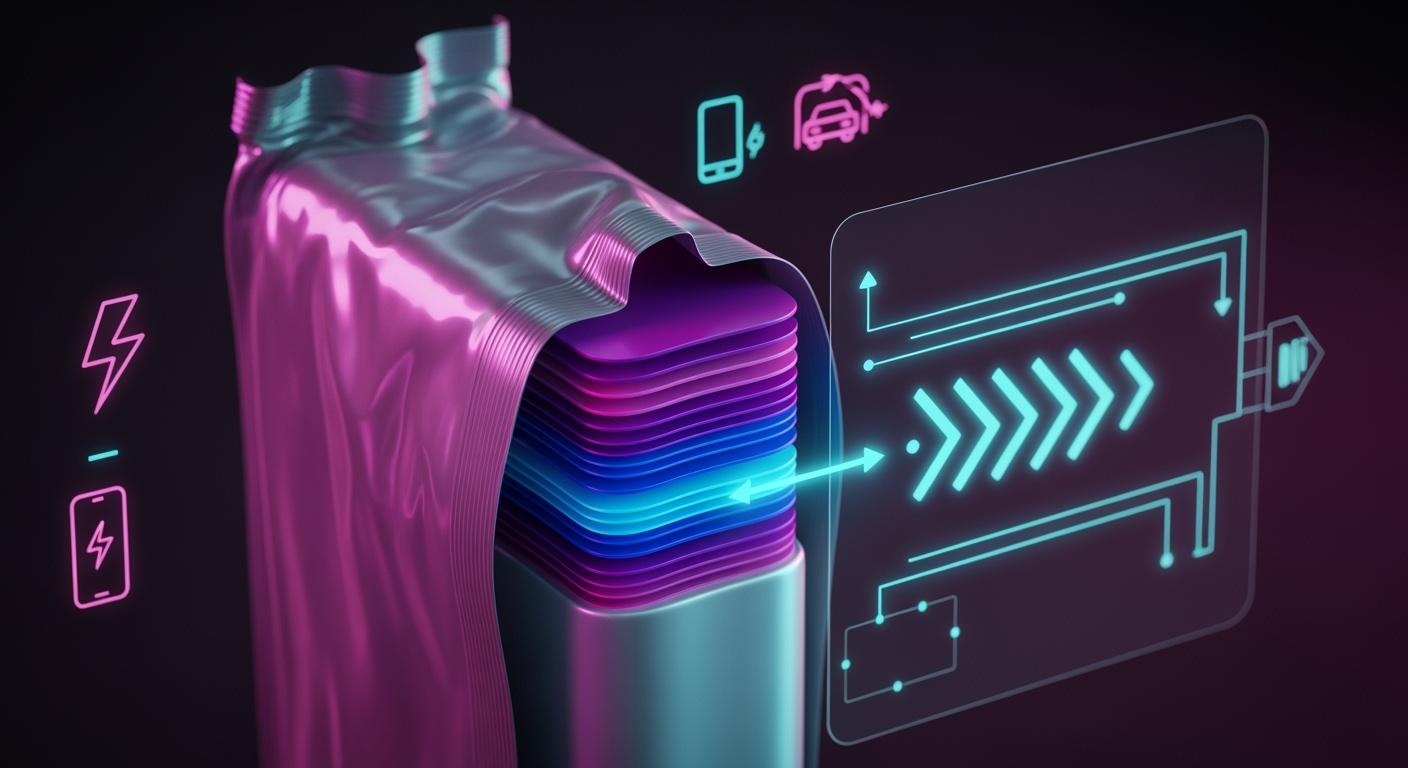

Internal Layers and Components

Inside a soft pack lithium ion battery, you will find several key components working together to store and release energy. The table below outlines these internal layers and their functions:

You will see that these components are similar to those found in other lithium-ion battery packs. However, the packaging material and arrangement differ, which affects the battery’s flexibility and safety.

Role of Flexible Packaging

Flexible packaging gives a soft pack lithium ion battery several advantages over cylindrical and prismatic batteries. The table below highlights the main benefits:

You will find that the flexible packaging allows you to design lithium-ion battery packs in various shapes and sizes. This feature makes soft pack lithium battery solutions ideal for applications where space and weight matter most.

When you compare the internal structure of a soft pack battery to cylindrical and prismatic batteries, you will see some key differences:

You gain a lighter, safer, and more adaptable battery by choosing a soft pack lithium ion battery. The flexible shell and internal design help you meet the demands of modern electronic devices, electric vehicles, and energy storage systems. You also benefit from improved safety and higher energy density compared to traditional lithium-ion battery packs.

How Soft Pack Batteries Work

Charging and Discharging

You interact with a soft pack lithium ion battery through its charging and discharging cycles. During charging, you supply electrical energy to the battery. Lithium ions move from the cathode to the anode, passing through the electrolyte. This process stores energy within the anode material, preparing the battery for later use. When you use your device, the battery enters the discharging phase. Lithium ions travel back from the anode to the cathode, releasing stored energy to power your equipment.

Tip: Consistent charging habits help maintain the performance and lifespan of your soft pack lithium battery.

The table below summarises the main processes involved in energy storage and release:

You benefit from a rechargeable lithium-ion battery that supports repeated charging and discharging cycles, making it ideal for energy storage solutions in portable electronics and energy storage systems.

Energy Storage Mechanism

The energy storage mechanism in a soft pack lithium ion battery relies on the controlled movement of lithium ions. When you charge the battery, lithium ions embed themselves in the anode’s layered structure. This process stores electrical energy as chemical potential. During discharge, the ions return to the cathode, and the battery releases this stored energy as electrical power.

• You gain efficient energy storage because the battery’s internal design minimises resistance and maximises capacity.
• The flexible packaging allows for higher energy density, which means you can store more energy in a smaller, lighter package.
• Soft pack lithium batteries provide reliable energy storage solutions for devices where weight and space are critical.

You will notice that the battery’s ability to store and release energy efficiently makes it suitable for a wide range of energy storage systems, from smartphones to electric vehicles.

Battery Management

You rely on advanced battery management systems (BMS) to ensure the safety and longevity of your soft pack lithium ion battery. These systems monitor and control every aspect of battery operation, protecting against faults and optimising performance.

Key features of battery management systems include:

• DCS offers hybrid and off-grid battery management units with advanced features.
• The system supports 12V DC-DC in-vehicle charging, 240V AC mains charging, and MPPT solar regulator charging.
• Recovery capabilities help maintain the health of lithium batteries.
• The EV Power BMS includes a Battery Control Unit (BCU) and cell modules for monitoring and balancing.
• Epoxy encapsulation protects against moisture and dust, ensuring durability.
• The system is designed for easy installation and low power consumption.

The table below outlines the main functions of a typical battery management system:

Note: The Polarium BMS integrates multiple safety features, such as overvoltage and undervoltage protection, overcurrent management, and thermal monitoring. These features keep your battery operating within safe parameters and extend its service life.

You also benefit from advanced safety mechanisms, such as double active safety systems and self-control fuses. These features respond instantly to electrical abuse, overvoltage, or overheating, providing robust protection for your soft pack lithium ion battery.

By using a well-managed soft pack lithium battery, you ensure reliable performance, enhanced safety, and a longer operational lifespan for your energy storage systems.

Pouch Cell Battery Pack Design

Pouch Cell Battery Pack Assembly

You assemble a pouch cell battery pack by arranging individual soft pack cells in a specific configuration. You select the number of cells based on the required voltage and capacity for your application. Each cell sits within a flexible pouch, which allows you to stack or layer them efficiently. You connect the cells in series to increase voltage or in parallel to boost capacity.

You use nickel strips or copper connectors to join the cells. Spot welding or ultrasonic welding creates strong, reliable connections. You then add a battery management system (BMS) to monitor and balance each cell. The BMS protects your battery pack from overcharging, deep discharge, and overheating.

You wrap the assembled cells in insulation and secure them within a protective casing. This casing shields the battery pack from physical damage and environmental factors. You may also add thermal pads or cooling systems for high-power applications.

Tip: Always ensure proper alignment and secure connections during assembly. This step reduces the risk of short circuits and improves the overall safety of your battery pack.

Soft Pack Battery Cell Manufacturing Machines And Processes

You rely on advanced machinery to produce soft pack lithium-ion cells. The manufacturing process involves several precise steps:

1. Electrode Preparation: You coat aluminium foil with cathode material and copper foil with anode material. You then dry and compress the coated foils.
2. Cell Stacking or Winding: You stack or wind the anode, separator, and cathode layers to form the cell’s core.
3. Pouch Formation: You use heat-sealing machines to create the aluminium-plastic pouch. You insert the cell stack into the pouch and seal three sides.
4. Electrolyte Filling: You inject electrolyte into the pouch under vacuum conditions. This step ensures complete wetting of the electrodes.
5. Final Sealing and Formation: You seal the final side of the pouch. You then charge and discharge the cell to activate it and test its performance.

The table below summarises key machines used in the process:

You achieve high-quality, reliable soft pack cells by following these precise manufacturing steps. This process ensures your battery packs deliver consistent performance and safety in every application.

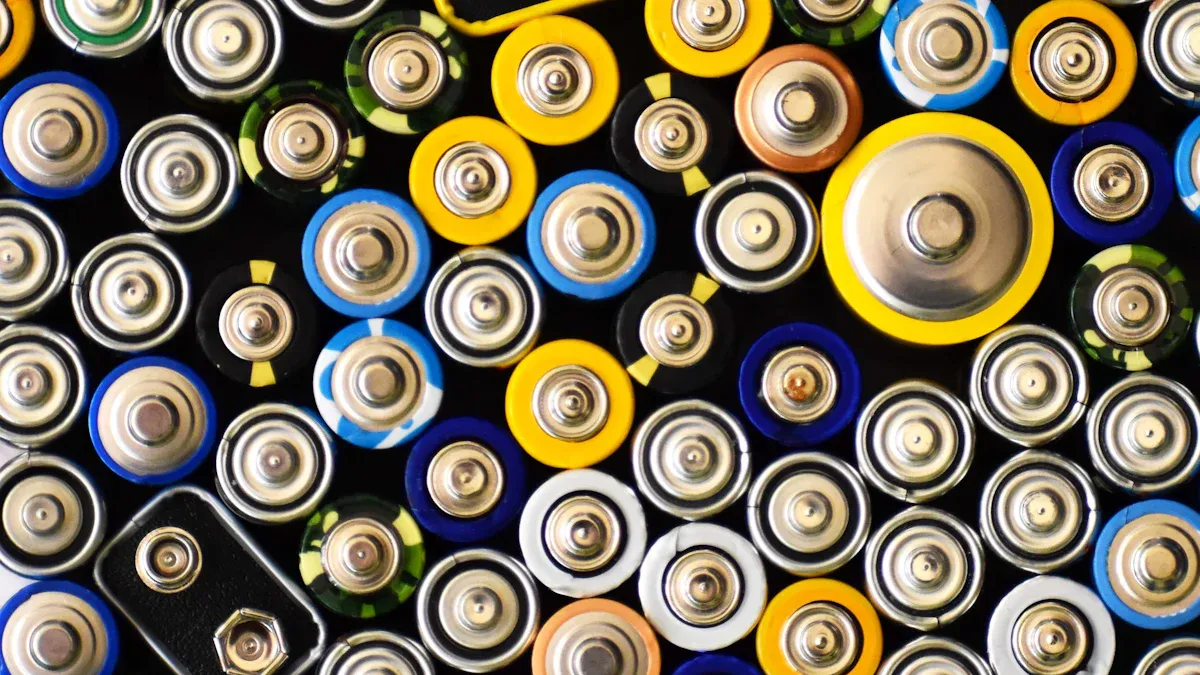

Comparison with Other Battery Types

Soft Pack vs Cylindrical

When you compare a soft pack lithium ion battery to a cylindrical battery, you notice several important differences. The soft pack design uses a flexible shell, which allows you to create batteries in various shapes and sizes. Cylindrical batteries, on the other hand, have a rigid metal casing and a fixed shape. You benefit from higher capacity and lighter weight with soft pack batteries. The table below highlights the main differences:

Note: You achieve greater design flexibility and energy density with soft pack batteries, but you may face higher production costs.

Soft Pack vs Prismatic

You also find key differences between soft pack and prismatic batteries. Both types offer high energy density, but the soft pack lithium ion battery leads in this area. Prismatic batteries use a hard shell, which gives them structural strength. However, soft pack batteries provide the highest energy density and remain safe unless exposed to severe impacts or punctures. The table below summarises these points:

You gain more energy storage in a smaller space with soft pack batteries, making them ideal for portable electronics and electric vehicles.

Performance and Flexibility

You evaluate battery performance using several metrics. Soft pack batteries excel in mechanical stability, voltage profile, and capacity retention. During flexing and twisting, the positive electrode stays intact, and the voltage curve remains stable. You also see high capacity retention, even under stress. The table below outlines these performance metrics:

Tip: You can rely on soft pack batteries for applications that demand both flexibility and consistent performance.

Advantages and Disadvantages of Soft Pack Lithium Battery

Weight and Energy Density

You benefit from a soft pack lithium ion battery because it offers high energy density and a lightweight structure. This design allows you to maximise storage in compact devices. Soft pack lithium batteries often outperform other lithium-ion formats in scenarios where space and weight matter most. You can use them in smartphones, drones, and electric vehicles, where every gram counts. The high energy density ensures you get more power without increasing the size or weight of your device.

Safety and Leakage Prevention

You gain improved safety performance with a soft pack lithium battery. The flexible shell reduces the risk of thermal runaway, which can cause fires or explosions in traditional batteries. The aluminium-plastic film acts as a barrier, preventing leaks and protecting the internal components. You also benefit from lower chances of gas build-up, which further reduces the risk of thermal runaway. The design helps you avoid dangerous situations and ensures reliable storage for your energy needs.

Flexibility and Design

You enjoy greater flexibility in design with a soft pack lithium ion battery. The pouch format allows you to customise the shape and size to fit your specific application. You can create battery packs that match the contours of your device, improving space utilisation. The high energy density and adaptable structure make these batteries ideal for innovative products. You can design thinner, lighter devices without sacrificing storage or safety performance.

Limitations

You must consider some limitations when choosing a soft pack lithium battery. Environmental factors can affect performance and reliability. The table below shows how temperature impacts battery operation:

You also face challenges with thermal runaway. The flexible shell, while safer in many respects, can be more vulnerable to punctures or external pressure. You need to handle and store these batteries carefully to avoid damage and ensure long-term storage safety.

Applications and Safety

Common Uses

You will find soft pack lithium-ion batteries in a wide range of applications. Their lightweight and flexible design makes them ideal for modern electronics and vehicles. You can see these batteries powering many devices and systems, such as:

• Toys and mobile phones
• Laptops and power tools
• E-bikes and electric vehicles
• Smart watches and fitness trackers
• Home energy storage systems

You benefit from their use in portable electronics, where space and weight matter most. Manufacturers also choose these batteries for electric vehicles because they offer high energy density and adaptability. You will notice their presence in both consumer electronics and larger applications like vehicles and home storage.

Safety Features and Standards

You rely on several safety features when you use soft pack lithium-ion batteries. The flexible shell helps prevent dangerous leaks and reduces the risk of explosion. Manufacturers design these batteries to meet strict safety standards, including overcharge and short-circuit protection. Battery management systems monitor temperature, voltage, and current to keep your devices and vehicles safe.

You will see that industry standards require regular testing for thermal stability and resistance to impact. These measures ensure that your electronics and vehicles remain protected during normal use and in the event of an accident.

Note: Always check that your battery pack meets recognised safety certifications before use.

Handling Tips

You can extend the lifespan and safety of your soft pack lithium-ion batteries by following a few simple procedures:

• Inspect your batteries regularly for physical damage, corrosion, or loose connections.
• Store batteries in a cool, dry place, away from direct sunlight and frost.
• Keep batteries at a partial charge, ideally between 40% and 60%.
• Use only chargers designed for lithium batteries and follow the manufacturer's instructions.
• Avoid exposing batteries to extreme temperatures, both hot and cold.
• Do not store batteries fully charged for long periods.

By following these tips, you help maintain the performance of your batteries in all applications, from electronics to electric vehicles. Proper handling ensures your devices and vehicles operate safely and efficiently. ?️

You have seen that a soft pack lithium ion battery delivers high energy density, lightweight design, and flexible form. You gain safety and customisation benefits, but you must handle and store these batteries with care. Typical uses include electronics, vehicles, and home storage. To ensure safety and performance:

• Remove batteries to prevent leaks.
• Store at 40–60% charge.
• Check batteries every few months.
• Dispose of batteries properly to avoid environmental harm.

Understanding these points helps you make informed choices in both consumer and industrial settings.
